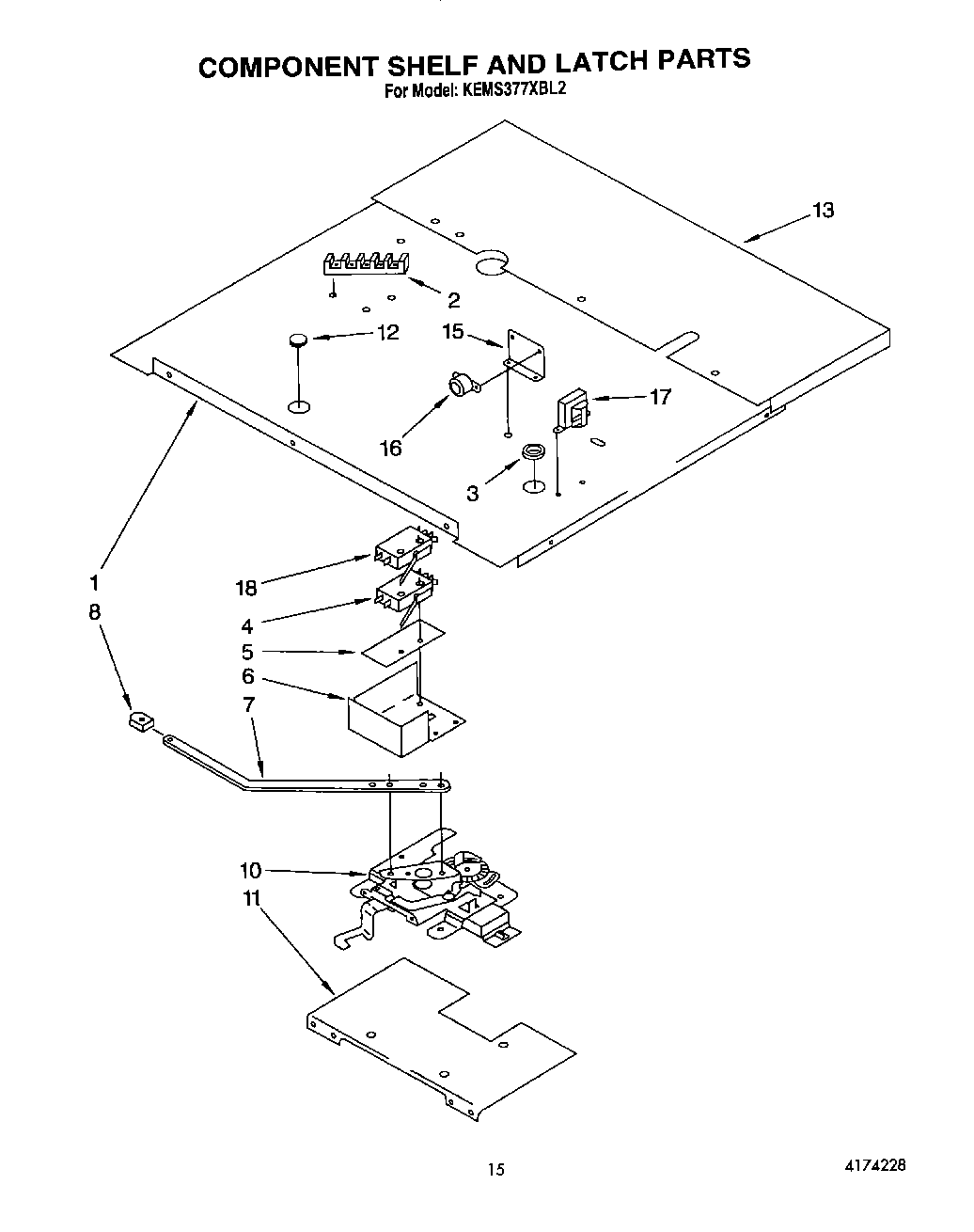

KEMS377XWH2 12 – COMPONENT SHELF AND LATCH

KEMS377XWH2 12 – COMPONENT SHELF AND LATCH

Written by

in

KEMS377XWH2 12 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1Shelf, Component
2W10841059 Whirlpool Screw
2WP8203546 Whirlpool Terminal Block
3Bushing, Electric
4Switch, Latch
5Insulator, Switch
6Guard, Latch
6Screw,
7Handle, Latch
7Handle, Latch (Screw (2))
8Knob, Latch Handle
8Screw
10Latch, Mechanism
11Plate, Mounting
12Plug, Button
13panel, top (screw, 10a x 3/8 (3))
13WP90767 Whirlpool Screw
13Extension, Shelf
15Bracket, Buzzer
15Screw (2)
16Buzzer, Meat Probe
17WP3177991 Whirlpool Screw
17Transformer
18Screw (2)
18Switch, Latch
