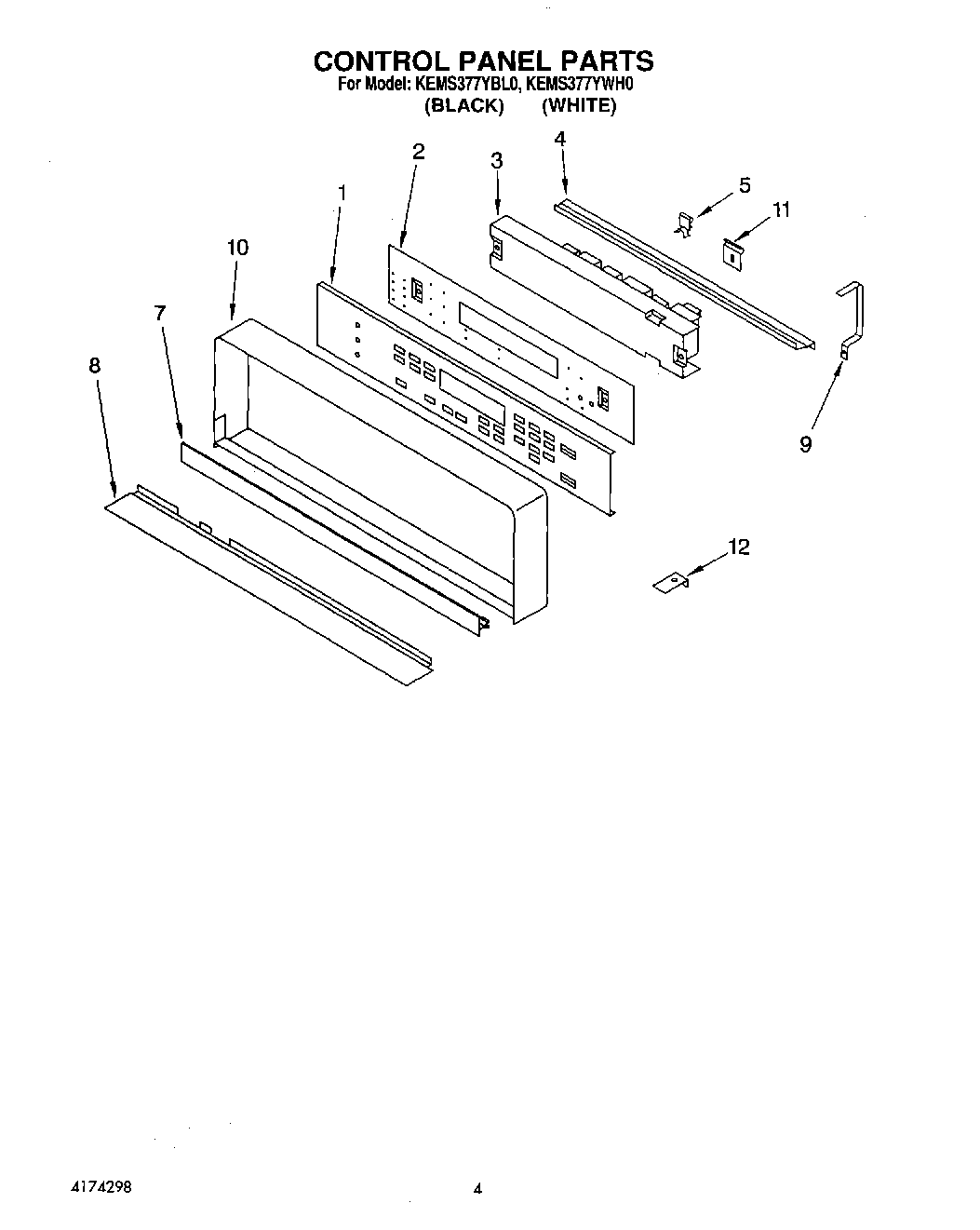

KEMS377YBL0 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	Tech Sheet
	Cookbook Microwave
	Use & Care Guide (Microwave)
	Use & Care Guide (Oven)
	Installation Instructions
	Cookbook T/C Oven
1	Membrane, Switch (White, Model)
1	Membrane, Switch (Black Model)
2	Bracket, Mounting Switch Membrane
3	Microcomputer
4	Retainer, Bracket
4	Screw (2)
5	Clip, Retainer (3)
7	Door, Latch Handle (Black Model)
7	Door, Latch Handle (White Model)
8	Trim, Panel
9	Bracket (2)
10	Frame, Control Panel
11	Clip, Control Frame
12	Clip, Spacer
12	Screw (3)
