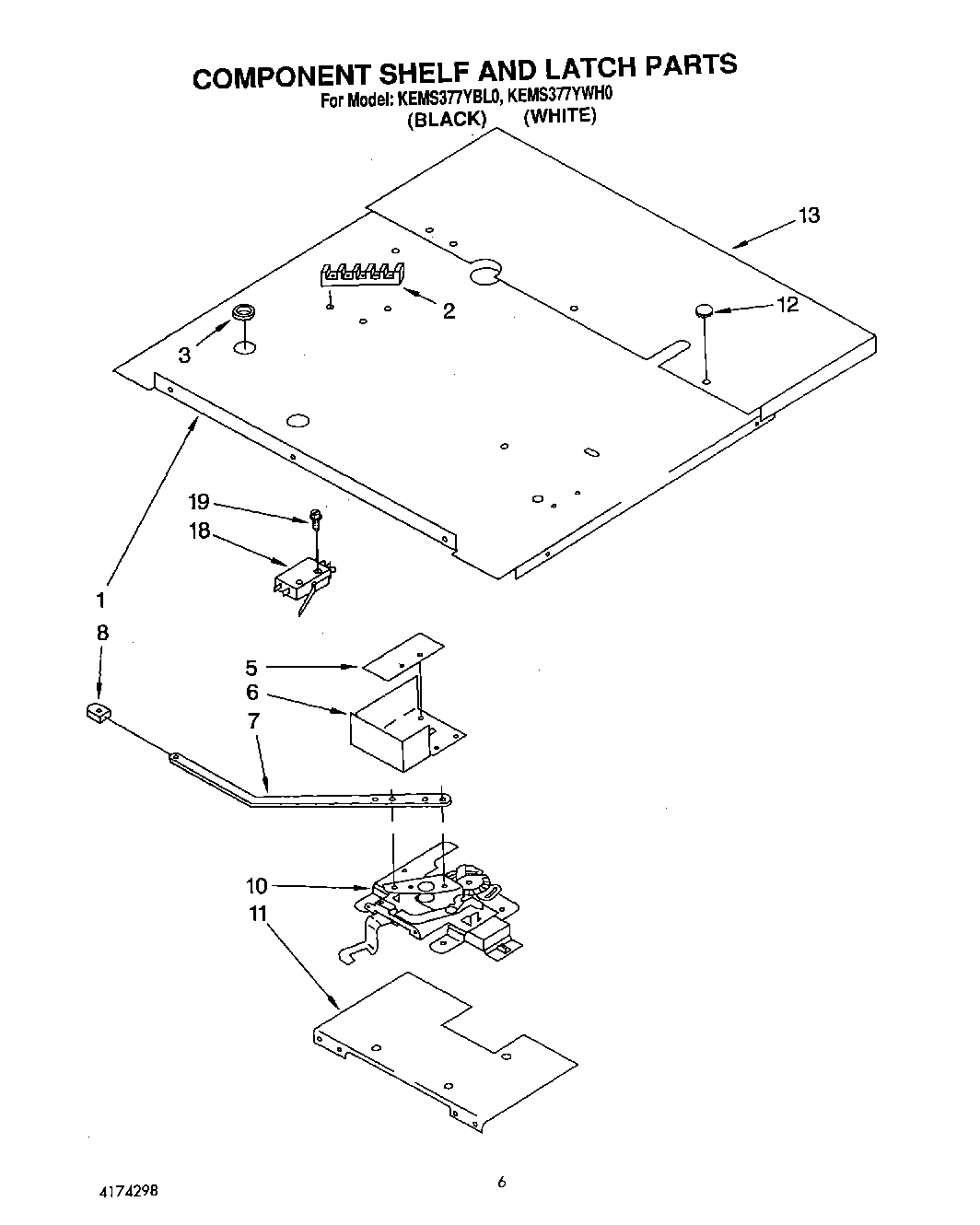

KEMS377YBL0 04 – COMPONENT SHELF AND LATCH

KEMS377YBL0 04 – COMPONENT SHELF AND LATCH

Written by

in

KEMS377YBL0 04 – COMPONENT SHELF AND LATCH

Products

Position	Product
1	Shelf, Component
2	W10841059 Whirlpool Screw
2	WP8203546 Whirlpool Terminal Block
3	Bushing, Electric
5	Insulator, Switch
6	Guard, Latch
6	Screw,
7	Handle, Latch
7	Screw (2)
8	Knob, Latch Handle
8	Screw
10	Latch, Mechanism
11	Plate, Mounting
12	Plug, Button
13	Extension, Shelf
13	WP3177991 Whirlpool Screw
13	Screw
13	panel, top (screw, 10a x 3/8 (3))
18	Switch, latch
19	Screw
