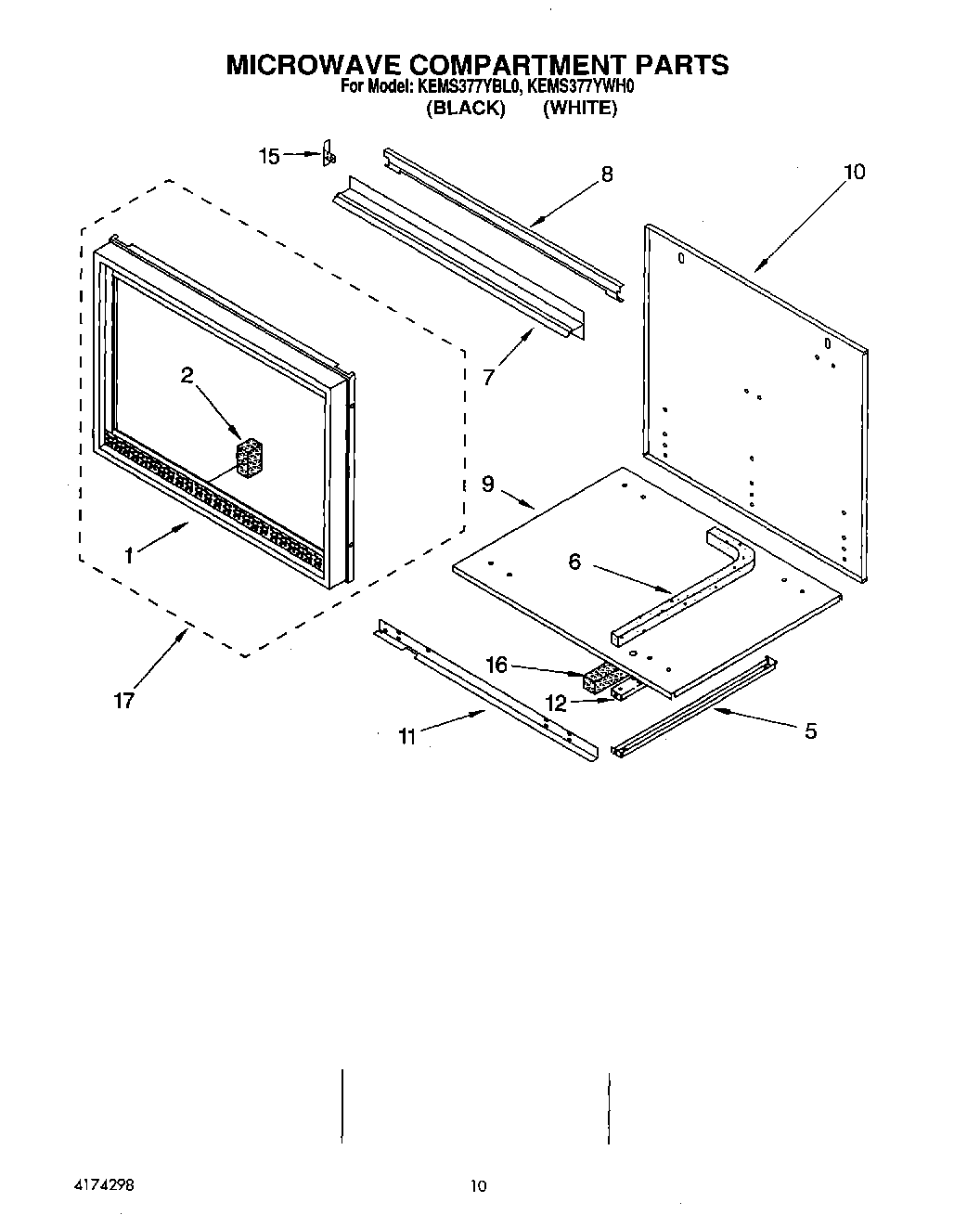

KEMS377YBL0 07 – MICROWAVE COMPARTMENT

Products

PositionProduct
1Frame, Outer (Black Model)
1Frame, Outer (White Model)
2Block, Foam
5Rail, Microwave
5Screw (4)
6Seal, Foam
7Vent, Middle Trim (White or Almond Model)
7Vent, Middle Trim (Black Model)
8Brace, Center Vent
8Vent, Lower Trim (Screw (2))
9Support, Module
10Back, Microwave Compartment
11Ext. Module Support
12Rail, Chassis
12Screw
15Insert, Middle Vent Trim
16Seal, Foam
17Assembly-Frame & Seal (Black Model)
17Assembly-Frame & Seal (White Model)
