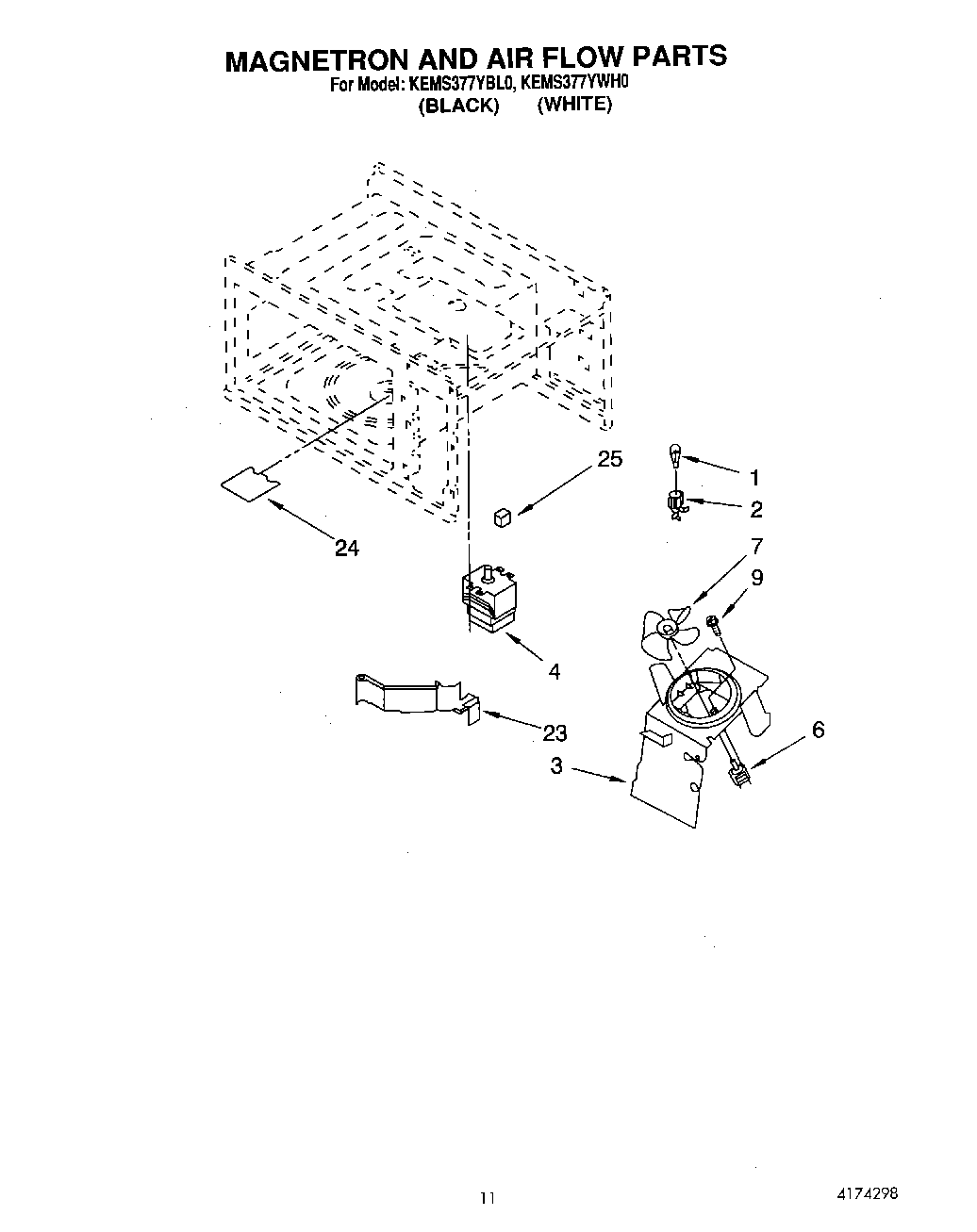

KEMS377YBL0 08 – MAGNETRON AND AIRFLOW
Products
| Position | Product |
|---|---|
| 1 | WPA3073101 Whirlpool Light Bulb |
| 2 | Socket, Lamp |
| 3 | Duct, Fan |
| 4 | Screw |
| 4 | Magnetron |
| 6 | Motor, Fan |
| 7 | Blade, Fan |
| 9 | Screw |
| 23 | Duct, Magnetron |
| 24 | Cover, Wave Guide |
| 25 | Shield, Magnetron |
KEMS377YBL0 08 – MAGNETRON AND AIRFLOW
| Position | Product |
|---|---|
| 1 | WPA3073101 Whirlpool Light Bulb |
| 2 | Socket, Lamp |
| 3 | Duct, Fan |
| 4 | Screw |
| 4 | Magnetron |
| 6 | Motor, Fan |
| 7 | Blade, Fan |
| 9 | Screw |
| 23 | Duct, Magnetron |
| 24 | Cover, Wave Guide |
| 25 | Shield, Magnetron |
