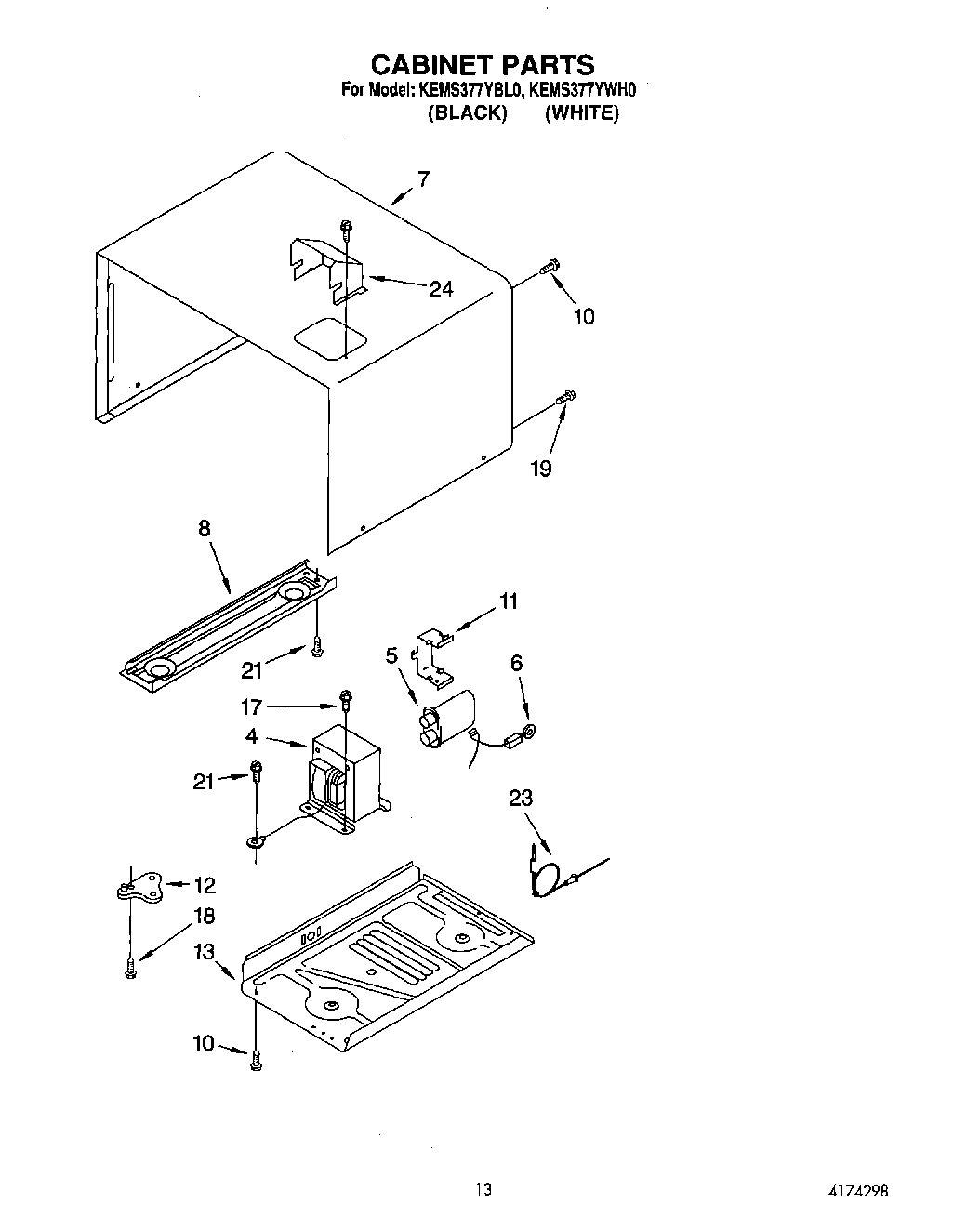

KEMS377YBL0 10 – CABINET

Products

PositionProduct
4Transformer
5Capacitor
6Rectifier
6Screw
7Outer Cabinet (White Model)
7Outer Cabinet (Black Model)
8Base Plate, Left Side
10Screw
11Screw
11Bracket, Capacitor
12Hinge, Lower
13Base Plate, Right Side
17Screw
18Screw
19Screw
21Screw
22Screw
23Probe, Temperature
24Duct, Exhaust (Front)
