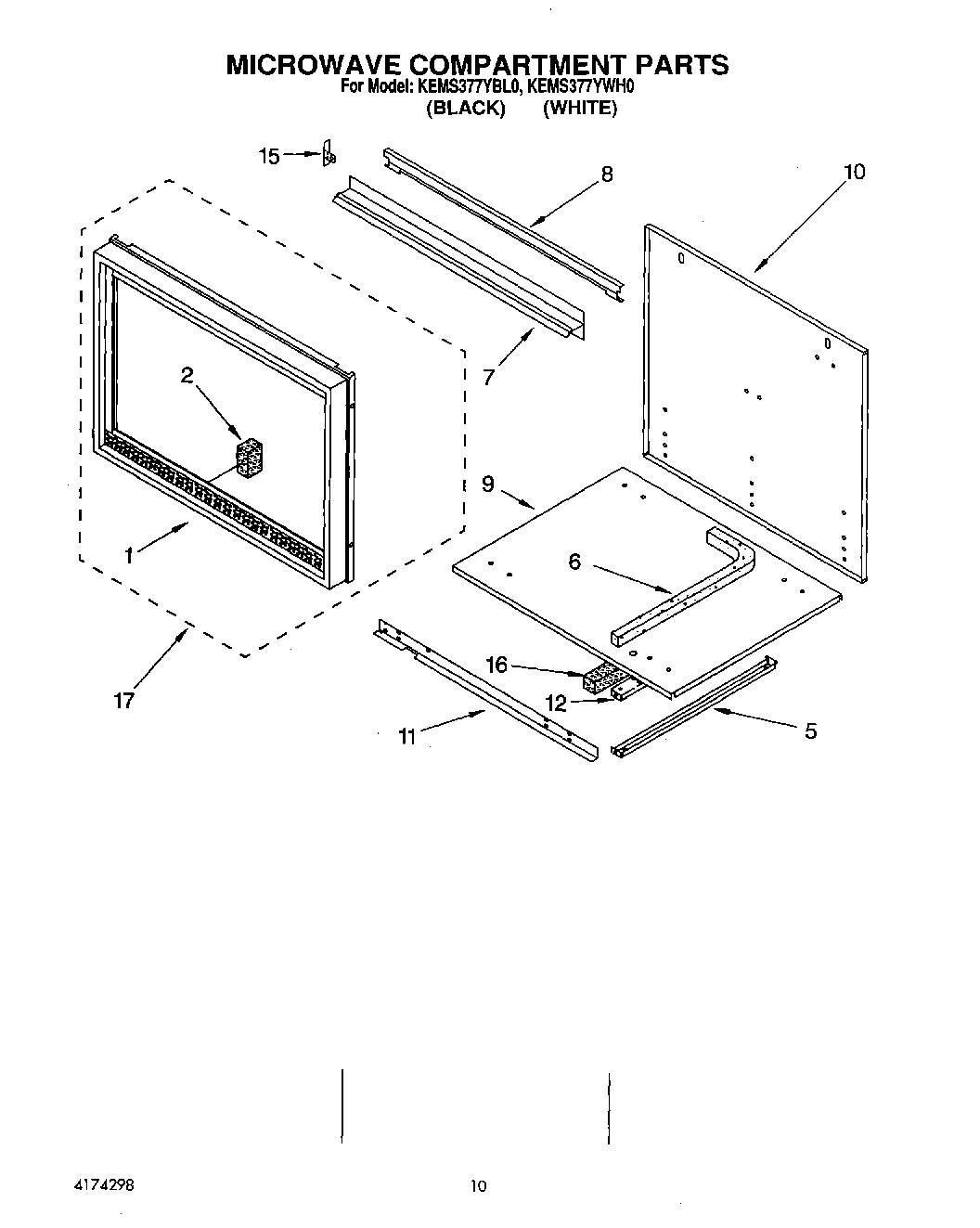

KEMS377YWH0 07 – MICROWAVE COMPARTMENTadmin2025-04-26T10:32:16+00:00KEMS377YWH0 07 – MICROWAVE COMPARTMENT
Products
| Position | Product |
|---|
| 1 | Frame, Outer (Black Model) |
| 1 | Frame, Outer (White Model) |
| 2 | Block, Foam |
| 5 | Rail, Microwave |
| 5 | Screw (4) |
| 6 | Seal, Foam |
| 7 | Vent, Middle Trim (White or Almond Model) |
| 7 | Vent, Middle Trim (Black Model) |
| 8 | Brace, Center Vent |
| 8 | Vent, Lower Trim (Screw (2)) |
| 9 | Support, Module |
| 10 | Back, Microwave Compartment |
| 11 | Ext. Module Support |
| 12 | Rail, Chassis |
| 12 | Screw |
| 15 | Insert, Middle Vent Trim |
| 16 | Seal, Foam |
| 17 | Assembly-Frame & Seal (Black Model) |
| 17 | Assembly-Frame & Seal (White Model) |
