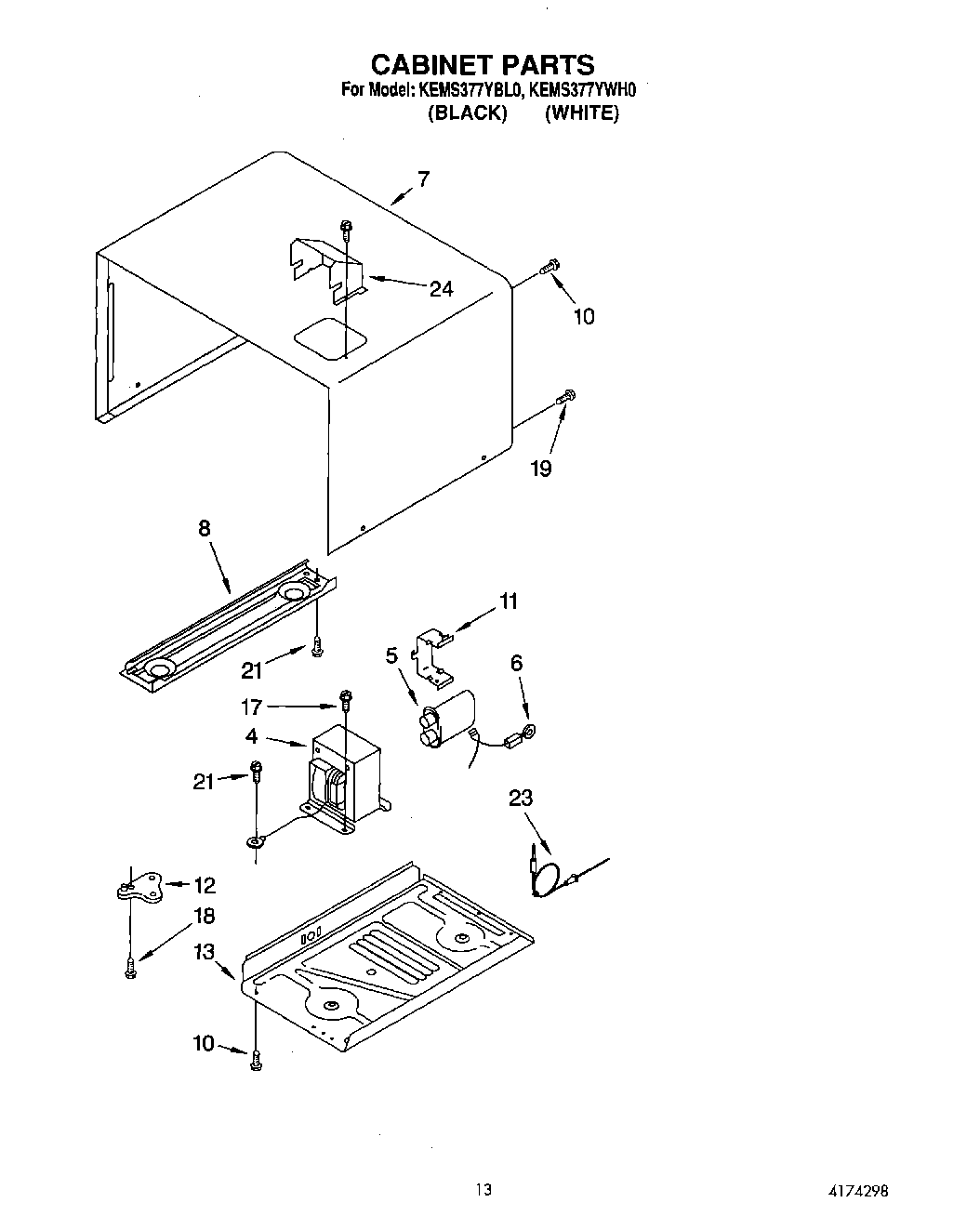

KEMS377YWH0 10 – CABINET

Products

Position	Product
4	Transformer
5	Capacitor
6	Rectifier
6	Screw
7	Outer Cabinet (White Model)
7	Outer Cabinet (Black Model)
8	Base Plate, Left Side
10	Screw
11	Screw
11	Bracket, Capacitor
12	Hinge, Lower
13	Base Plate, Right Side
17	Screw
18	Screw
19	Screw
21	Screw
22	Screw
23	Probe, Temperature
24	Duct, Exhaust (Front)
