KEMS378BAL1 10 – CABINET – Aparts

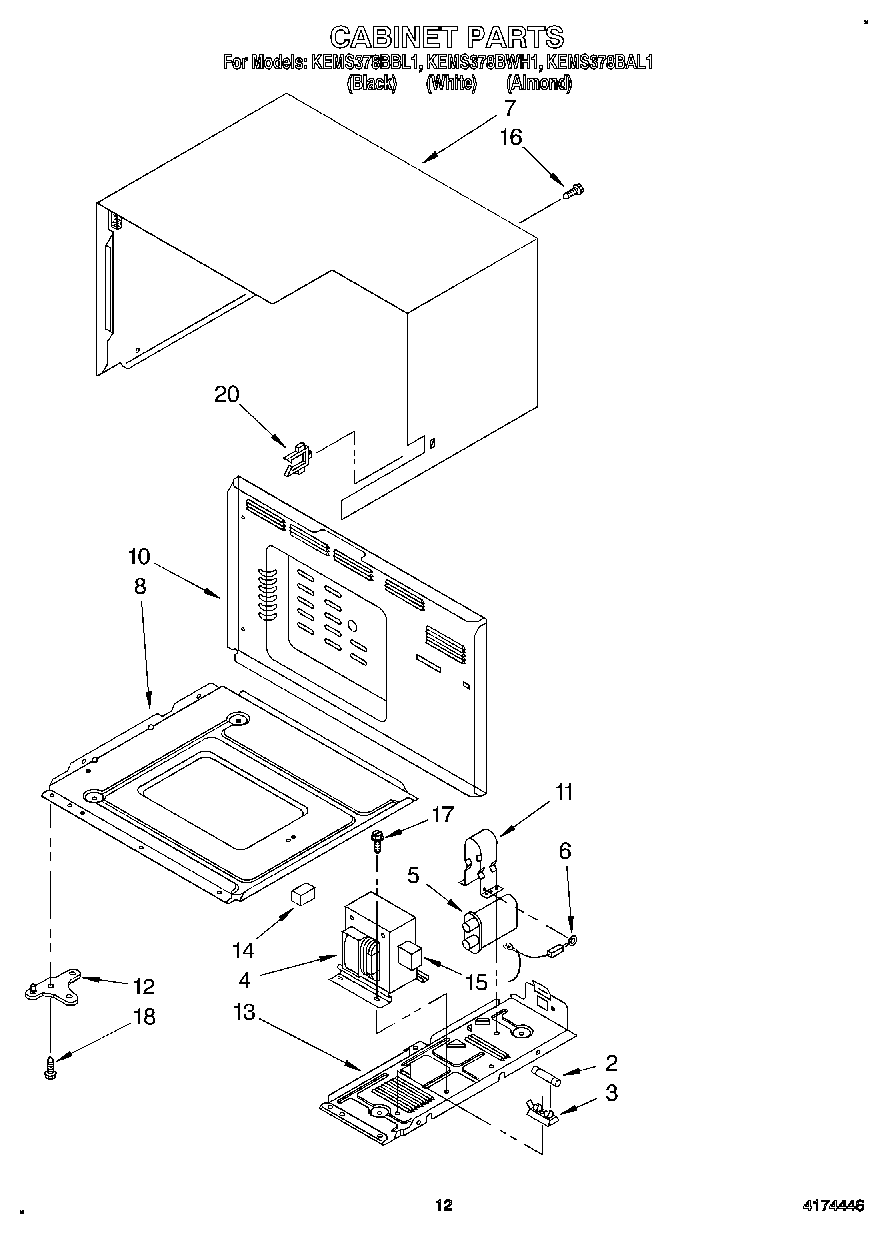

KEMS378BAL1 10 – CABINET

Products

Position	Product
2	Fuse, 20 Amp
3	Fuse Holder
4	Transformer
5	Capacitor
6	Rectifier
7	Outer Cabinet
8	Cabinet Base
10	Cabinet Rear
11	Capacitor Holder
12	Lower Hinge
13	Extension, Cabinet Base
14	Block, Foam
15	Vibration Block
16	Screw (9)
17	Screw (2)
18	Screw (3)
20	Holder, Wire
