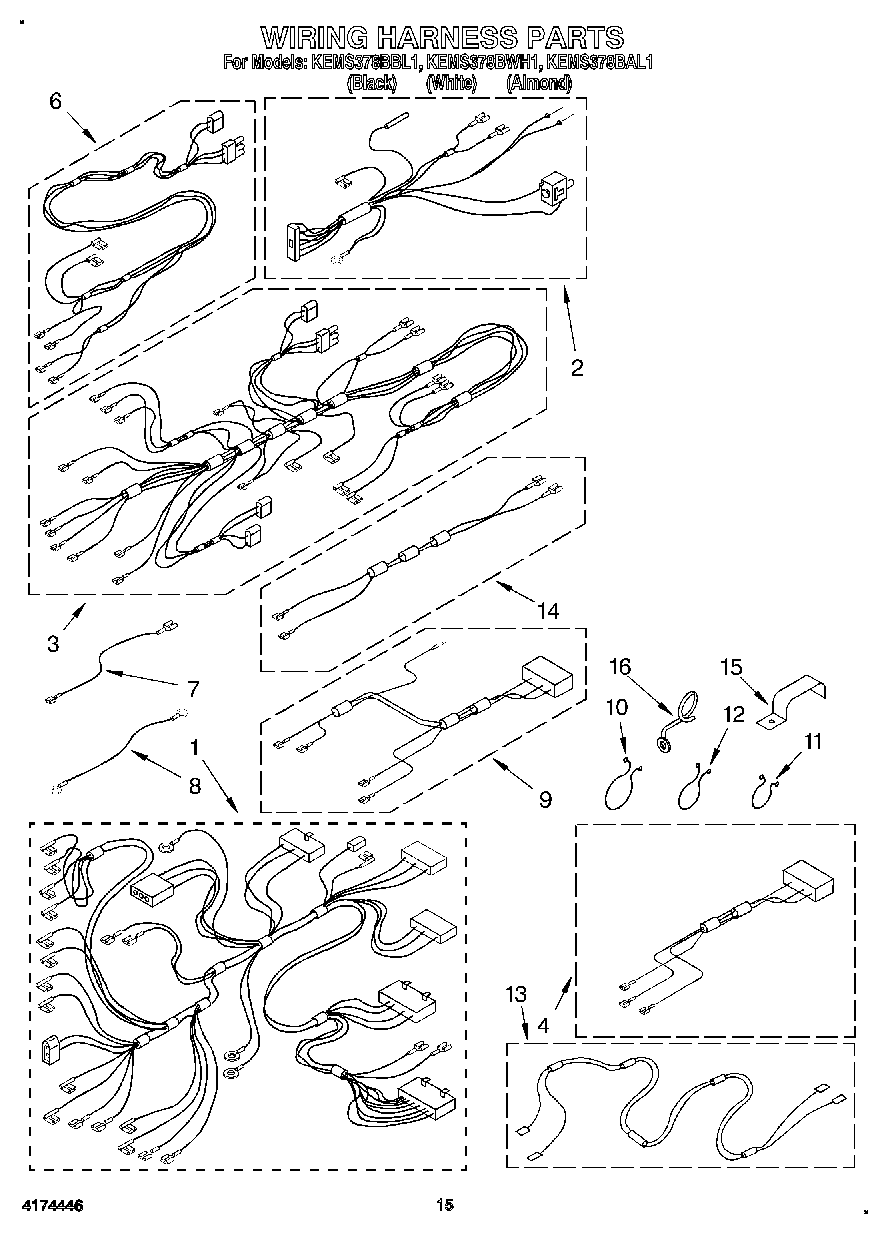

KEMS378BAL1 13 – WIRING HARNESS

Products

PositionProduct
1Harness, Wiring (Main Oven)
2Jack Assy.
3Harness, Wiring (Main Microwave)
4Harness, Wiring (Latch, Combo) (Base Plate)
6Harness, Wire (Base Plate)
7Wire, Jumper
8Wire, Ground
9Harness, Wire (Microwave Power)
10Clip, Harness
11Clip, Harness
12Clip, harness
13Wiring Harness (Door Switch) Lower)
14Harness, Wiring (Combo-Probe)
157111P002-60 Whirlpool Clamp
15WP112432 Whirlpool Nut Assembly
16Standoff, Wire
