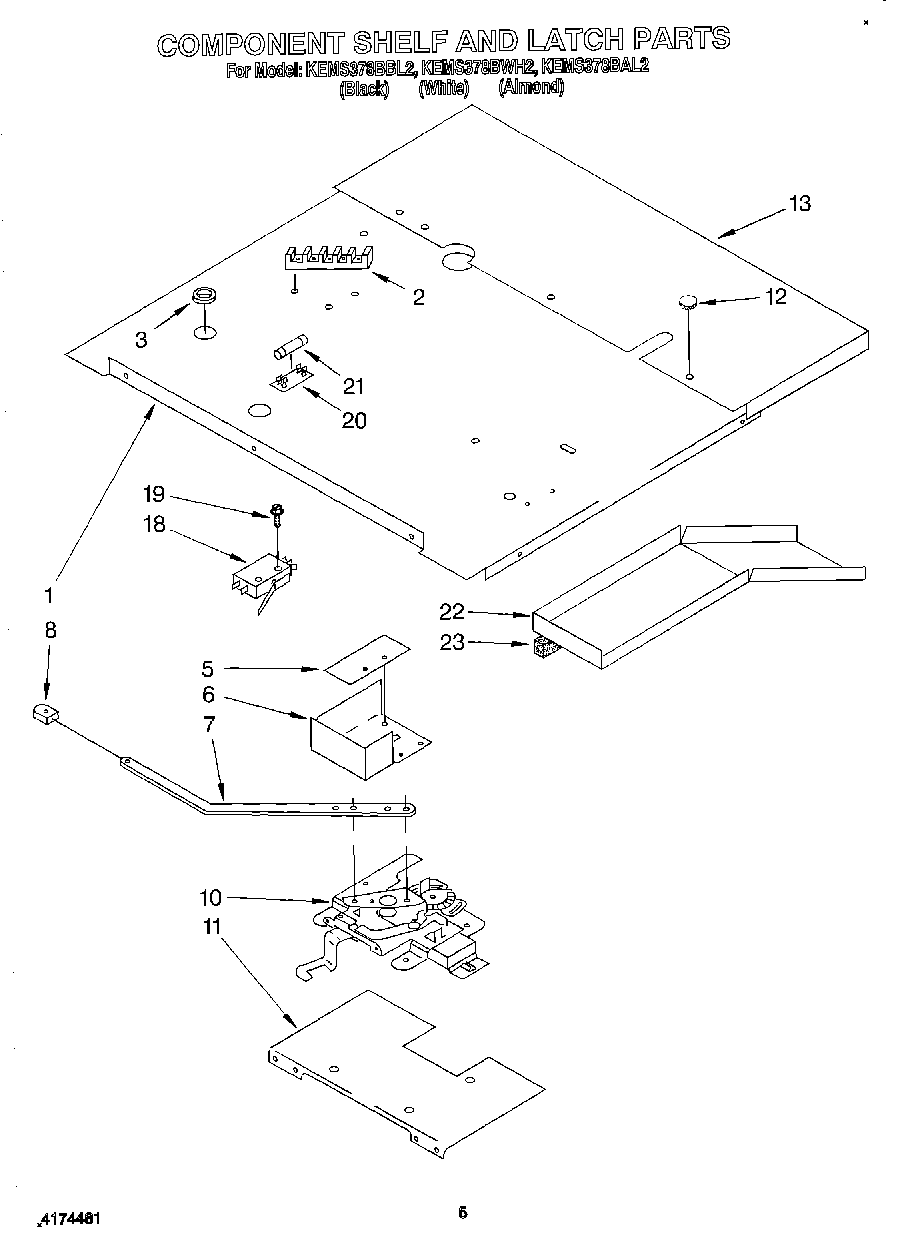

KEMS378BAL2 05 – COMPONENT SHELF AND LATCH

KEMS378BAL2 05 – COMPONENT SHELF AND LATCH

Written by

in

KEMS378BAL2 05 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1Shelf, Component
2Screw (10-12 x .875)
2WP8203546 Whirlpool Terminal Block
3Bushing, Electric
5Insulator, Switch
6Guard, Latch
6Screw,
7Handle, Latch
7Screw
8Screw
8Knob, Latch Handle
10Latch, Mechanism
11Plate, Mounting
12Plug, Button
13Extension, Shelf
13Screw
13WP3177991 Whirlpool Screw
18Switch, latch
19Screw
204454949 Whirlpool Oven Fuse Block
21WPW10017410 Whirlpool Fuse
21WP90767 Whirlpool Screw
22Baffle, Module
23Seal, Foam
23Seal, Foam
