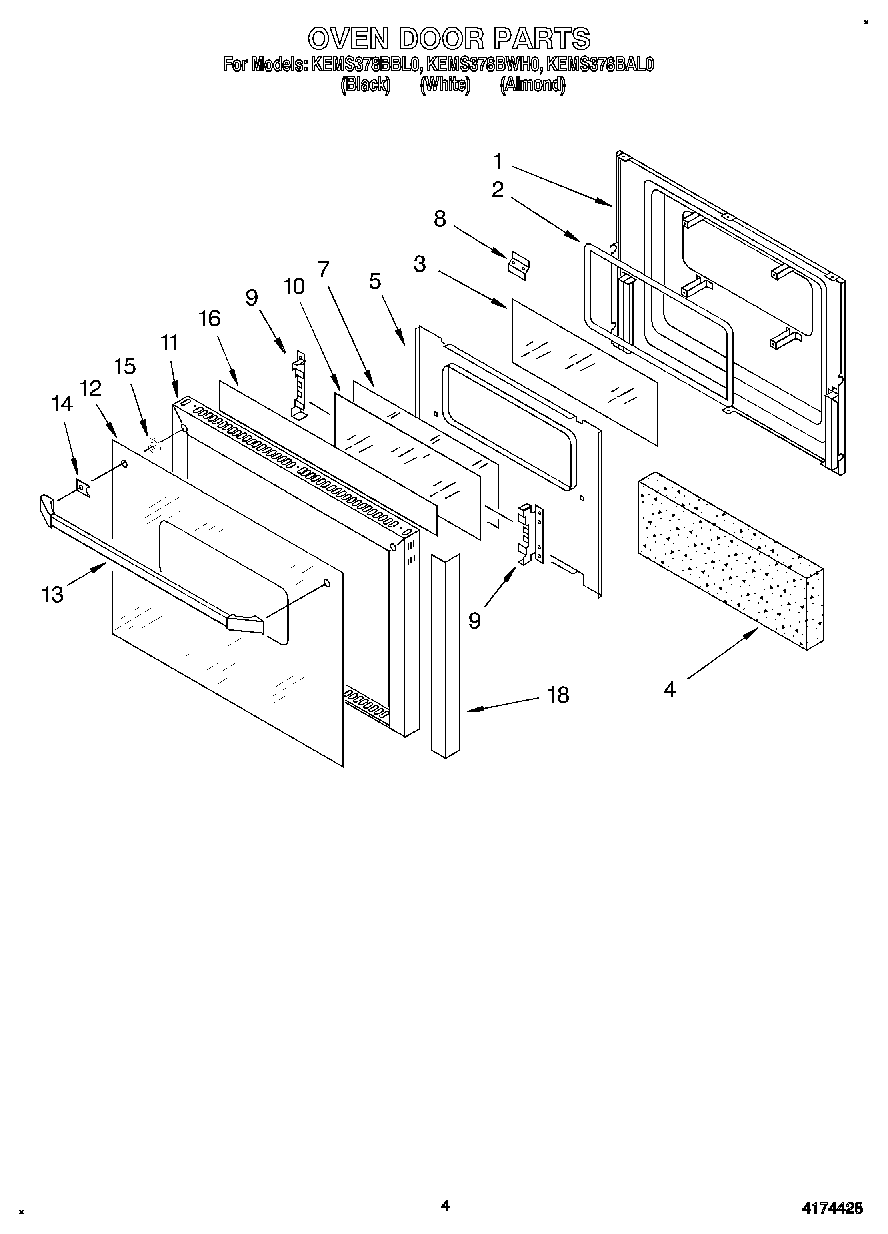

KEMS378BBL0 04 – OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
2Seal, Window
3Glass, Clear
4Insulation, Door
5Screw
5Retainer, Insulation
7Glass, Reflective
8Latch, Strike
8Screw
9Retainer, Glass
10Glass, Clear
11Frame, Door (Almond Model)
11Frame, Door (White Model)
11Frame, Door (Black Model)
12Glass, Door (Black Model)
12Glass, Door (White Model)
12Glass, Door (Almond Model)
13Handle, Door (Almond Model)
13Handle, Door (White Model)
13Handle, Door (Black Model)
14Spacer, Door Handle
15Screw (2)
15Bushing, Door Handle
16Foil, Adhesive
18Foil-Adhesive
