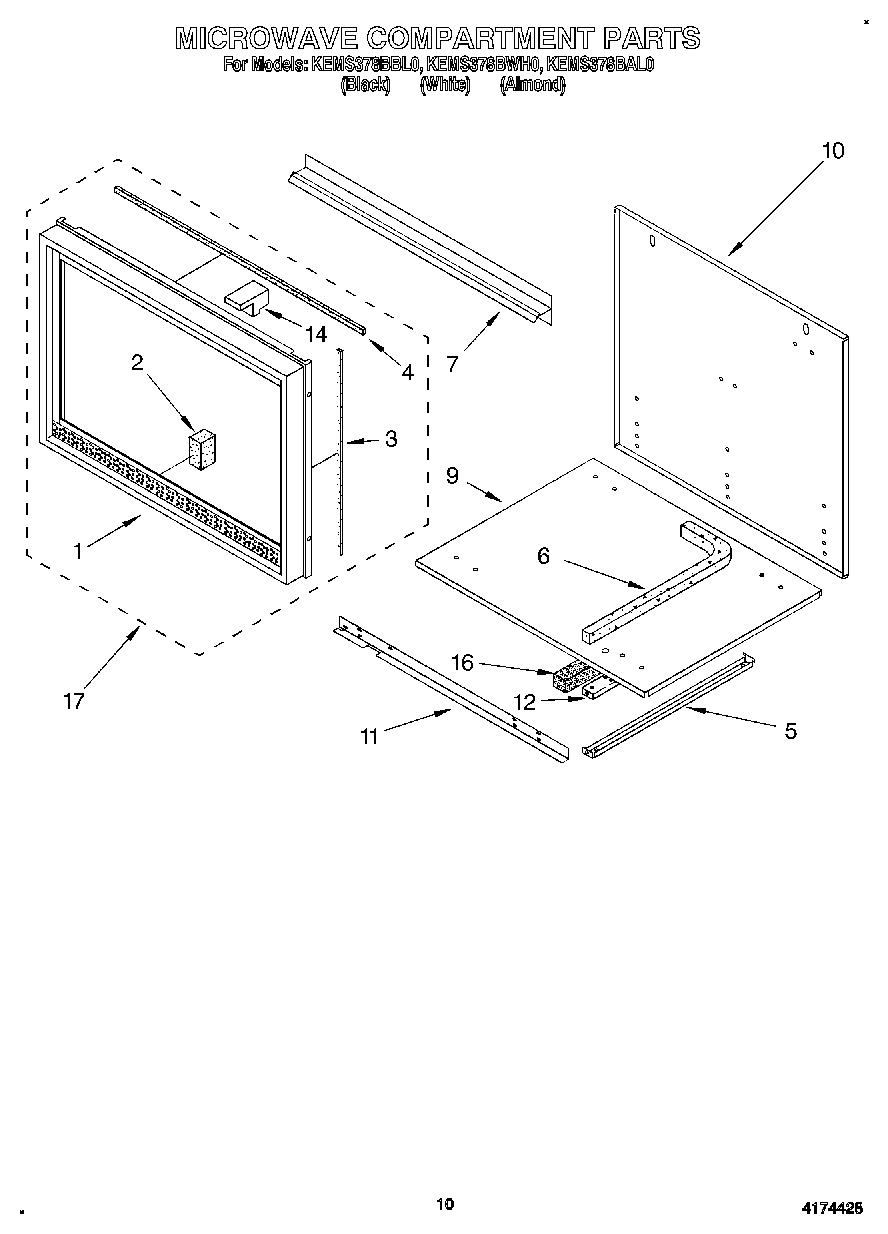

KEMS378BBL0 08 – MICROWAVE COMPARTMENT

Products

Position	Product
1	Frame, Outer (Black Model)
1	Frame, Outer (White Model)
1	Frame, Outer (Almond Model)
2	Seal, Foam
3	Seal, Foam (Side) (White or Almond Model)
3	Seal, Foam (Side) (Black Model)
4	Seal, Foam (Top) (Black Model)
4	Door, Latch Handle (Screw (2))
4	Seal, Foam (Top) (White or Almond Model)
5	Screw (4)
5	Rail, Microwave
6	Seal, Foam
7	Vent, Middle Trim (White Model)
7	Vent, Middle Trim (Almond Model)
7	Vent, Middle Trim (Black Model)
9	Support, Module
10	Back, Microwave Compartment
11	Ext. Module Support
11	Screw
12	Screw (2)
12	Rail, Chassis
14	Block, Foam
14	Screw
16	Seal, Foam
17	Assembly-Frame & Seal (Black Model)
17	Assembly-Frame & Seal (Almond Model)
17	Assembly-Frame & Seal (White Model)
