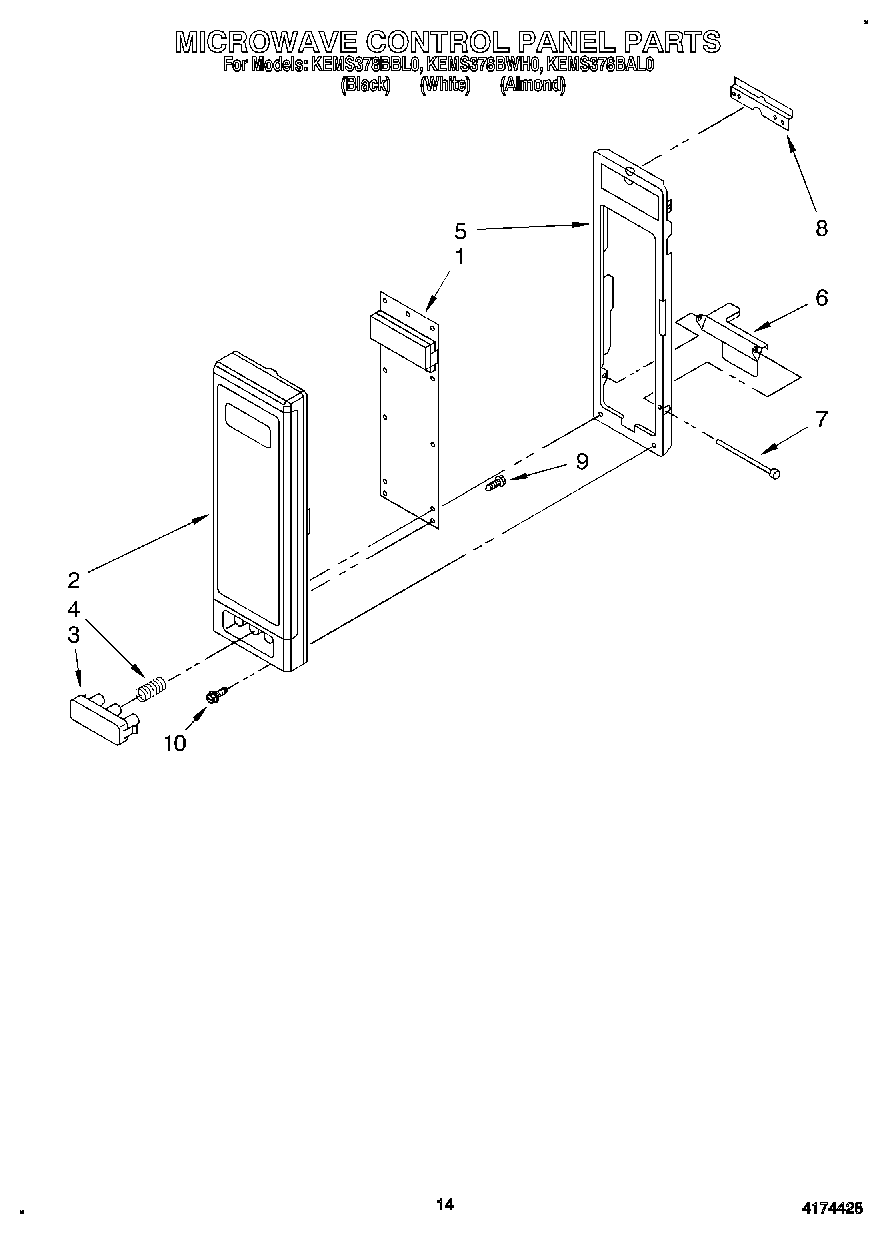

KEMS378BBL0 12 – MICROWAVE CONTROL PANEL

Products

Position	Product
1	Microcomputer
2	Frame, Control Panel (Black)
2	Frame, Control Panel (White)
2	Frame, Control Panel (Almond)
3	Push Button (Black)
3	Push Button (White)
3	Push Button (Almond)
4	Spring, Button
5	Plate, Mounting
6	Release Lever
7	Mounting Pin
8	Bracket, Mounting
9	Screw (5)
10	Screw (2)
