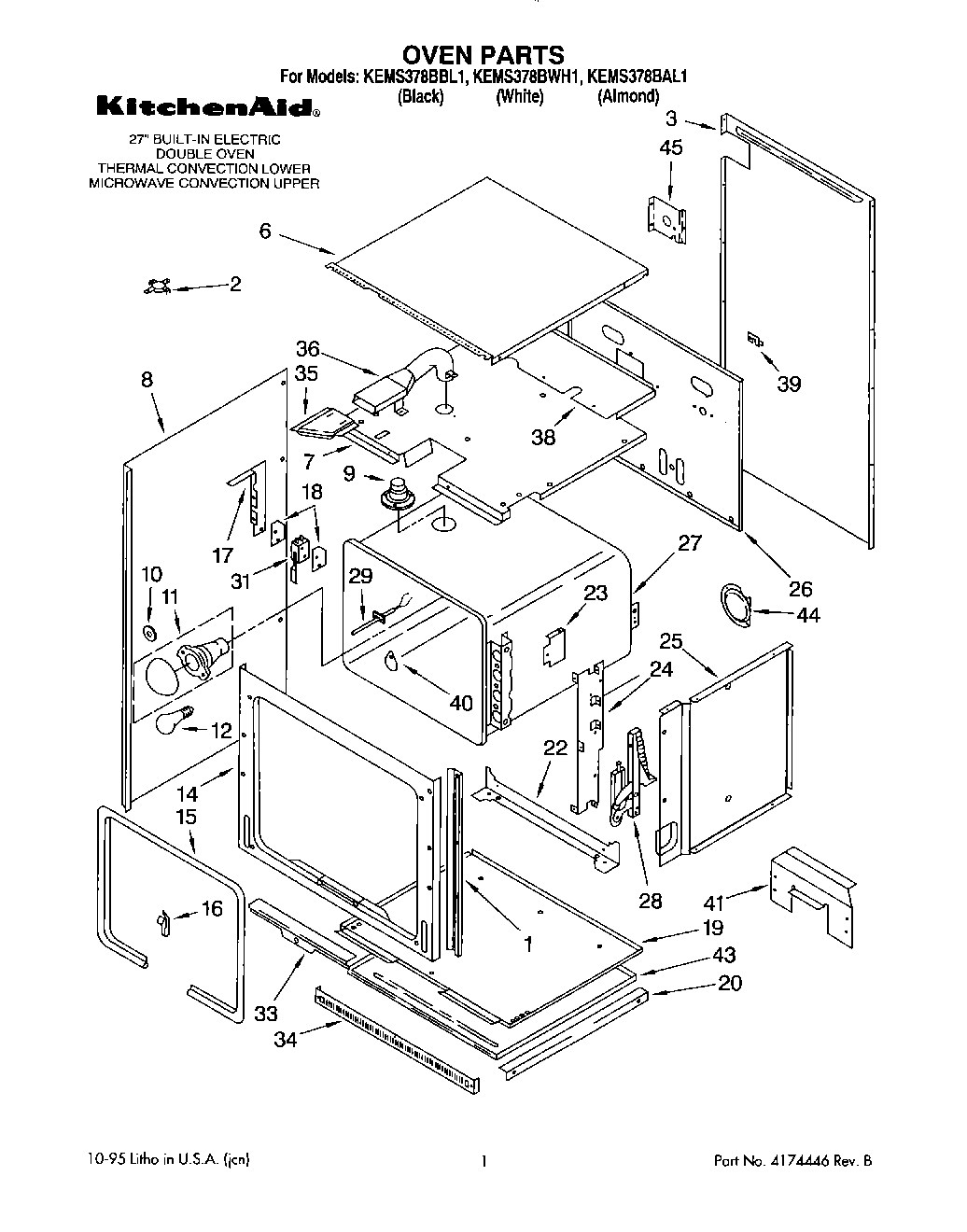

KEMS378BBL1 01 – OVEN

Products

Position	Product
1	Side Trim, Door (Black Model)
1	Side Trim, Door (White Model)
1	Side Trim, Door (Almond Model)
2	Fuse, Safety
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (Left Hand)
8	Side, Cabinet (Right Hand)
9	Tube, Vent
10	WP3184533 Whirlpool Range Light Lens Gasket
11	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Screw (6)
28	Hinge, Door
29	Sensor, Heat
29	Screw (2)
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	Retainer, Seal
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (White Model)
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Almond Model)
34	Vent, Lower Trim (Black)
35	Tube, Vent (Female)
35	Tube, Vent Female
36	Tube, Vent Male
38	Extension, Shelf
39	Cover, Cap Tube
39	Screw
40	Screw
40	Button, Plug
41	WPL 3183752
43	Bottom, Oven
44	WP3177991 Whirlpool Screw
44	Probe Cover
45	Insulation, Oven
45	Bracket, Conduit
45	Insulation, Back
