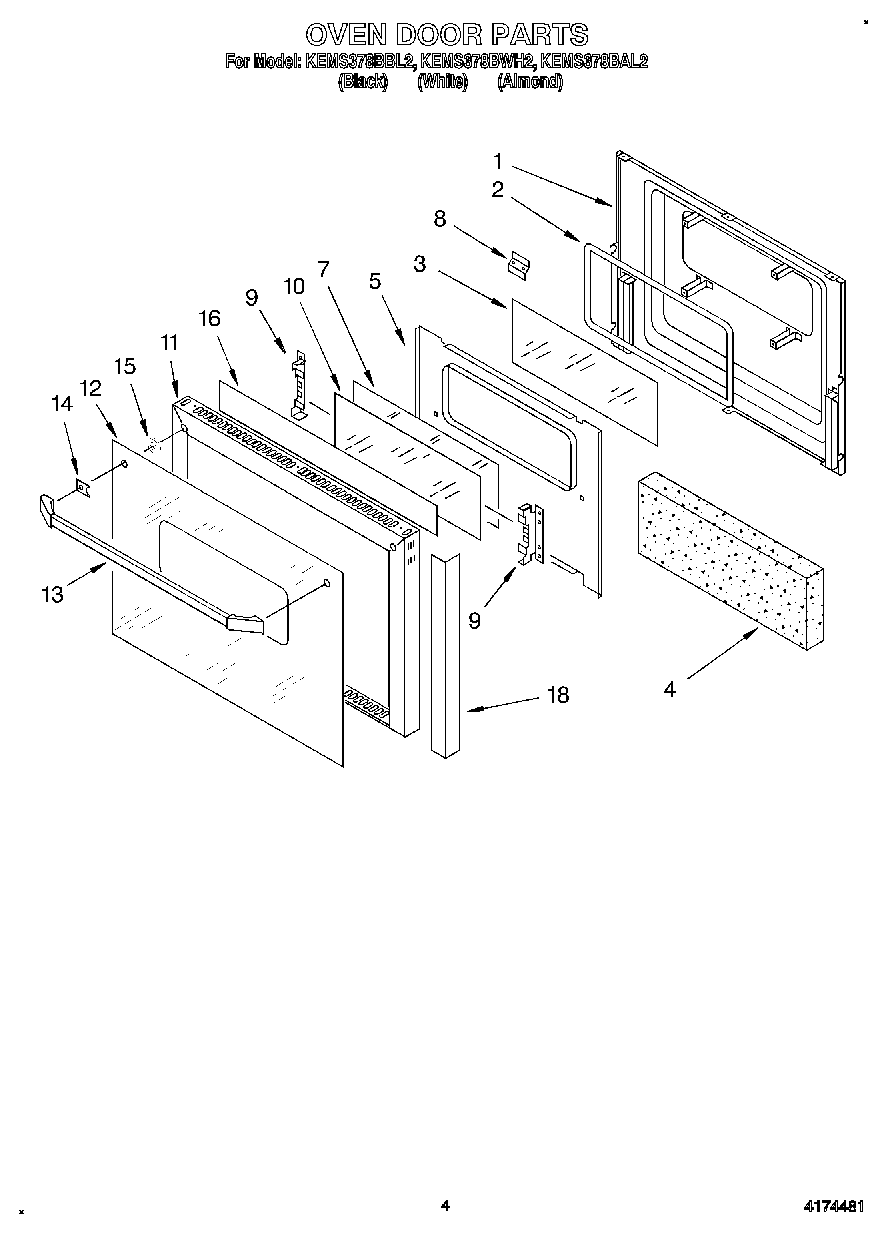

KEMS378BBL2 04 – OVEN DOOR

KEMS378BBL2 04 – OVEN DOOR

Written by

in

KEMS378BBL2 04 – OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Screw
5	Retainer, Insulation
7	Glass, Reflective
8	Latch, Strike
8	Screw
9	Retainer, Glass
10	Glass, Clear
11	Frame, Door (Almond Model)
11	Frame, Door (White Model)
11	Frame, Door (Black Model)
12	Glass, Door (Black Model)
12	Glass, Door (White Model)
12	Glass, Door (Almond Model)
13	Handle, Door (Almond Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Spacer, Door Handle
15	Screw (2)
15	Bushing, Door Handle
16	Foil, Adhesive
18	Foil-Adhesive
