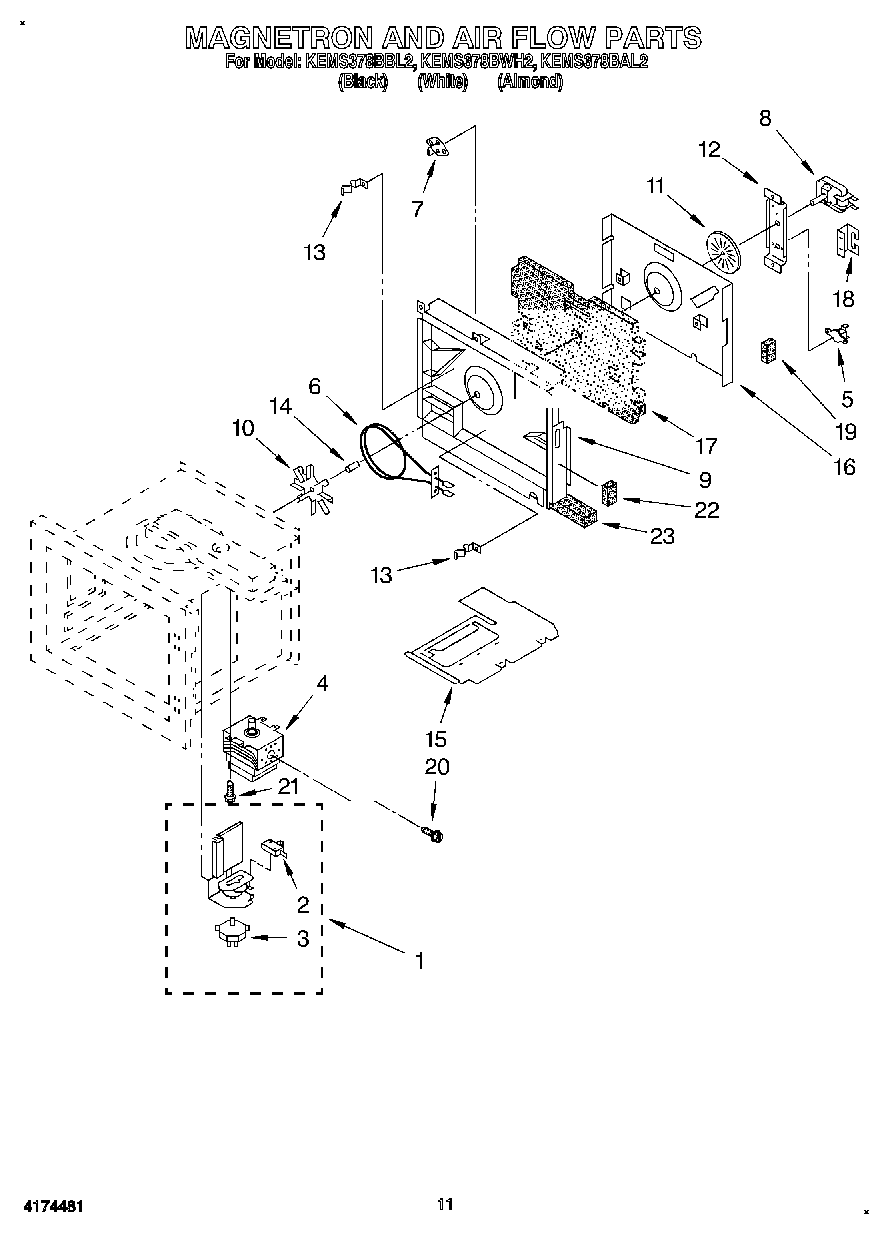

KEMS378BBL2 09 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Damper Assy.
2	4392027 Whirlpool Microwave Primary Switch
3	Motor, Damper
4	Magnetron
5	Thermal Protector (2)
6	Heating Element
7	Thermistor
8	Motor, Fan (Convection)
9	Heater Duct Assy.
10	Fan Blade (Convection)
11	Fan Blade (Reflection)
12	Plate, Motor Mounting
13	Clip, Element (2)
14	Collar
15	Plate, Protector
16	Plate, Thermal Protector
17	Insulation
18	Cover, Thermal Protector
19	Foam Block
20	Screw (2)
21	Screw
22	Foam Block
23	Seal, Foam
