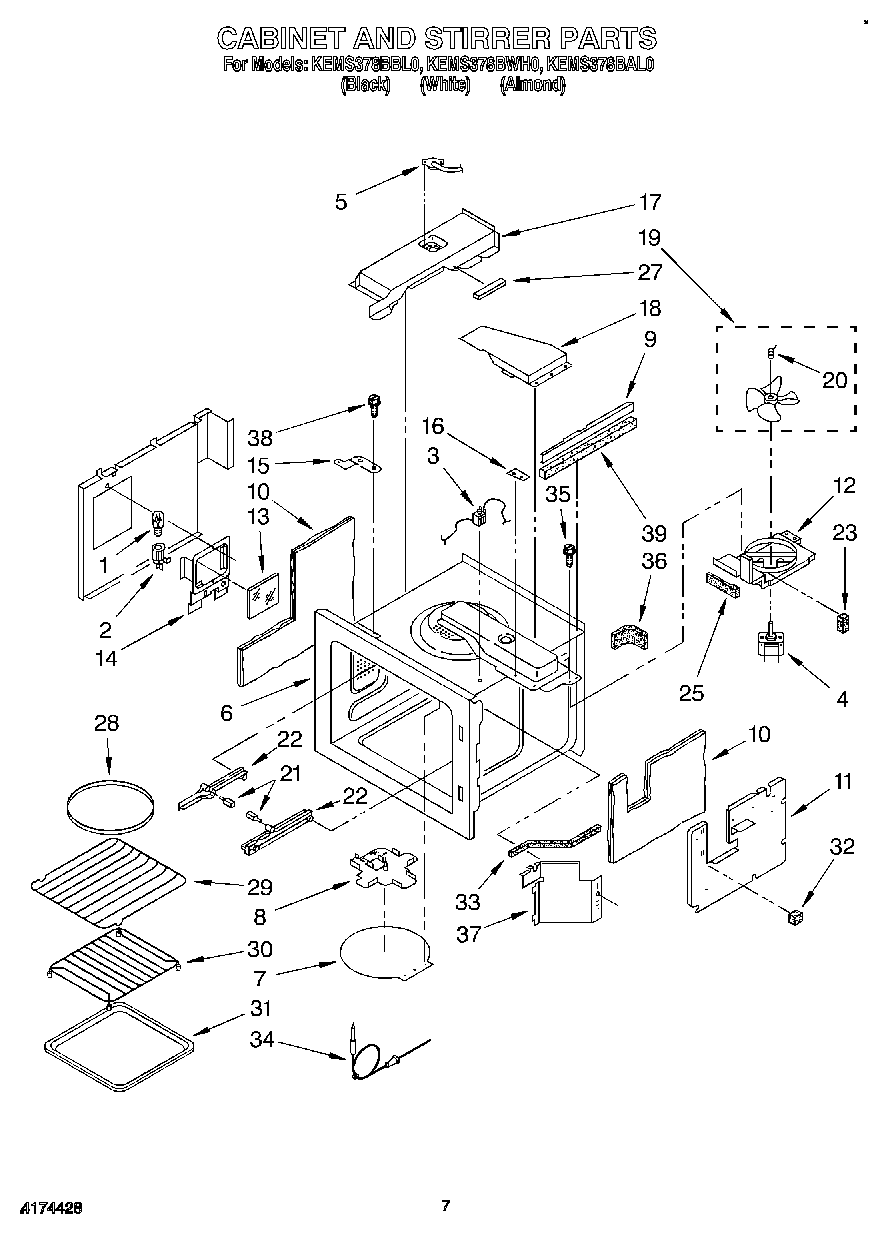

KEMS378BWH0 06 – CABINET AND STIRRER, OPTIONAL

KEMS378BWH0 06 – CABINET AND STIRRER, OPTIONAL

Written by

in

KEMS378BWH0 06 – CABINET AND STIRRER, OPTIONAL

Products

PositionProduct
1WPA3073101 Whirlpool Light Bulb
2Light Socket
3Jack Assy.
4Motor, Fan Cooling
5Sensor Assy.
6Cavity, Oven (Not a Serviceable Part)
7Stirrer Cover Assy.
8Stirrer Fan Assy.
9Support, Chassis
10Insulation (R.H.)
10Insulation (L.H.)
11Panel, Oven Cavity (L.H.)
11Panel, Oven Cavity (R.H.)
12Stirrer Fan Duct
13Glass, Oven Light
14Mounting Plate, Oven Light
15Upper Hinge
16Divider Plate
17Exhaust Duct Assy.
18Cooling Duct Magnetron
19Fan Blade Assy.
20Clip, Retainer
21Plastic Screw
22Rack Support (L.H.)
22Rack Support (R.H.)
23Block, Foam
25Block, Foam
27Block, Foam
28Cookie Sheet
29Rack (Upper)
30Rack (Lower)
31Tray, Cooking
32Block, Foam
33Block, Foam
34Temperature Probe Assy.
35Screw
36Block, Foam
37Magnetron Duct Assembly
38Screw (2)
39Golden Harvest (Uncut)
39Toast
39Paint, Spray (13 Oz.) (Platinum)
39350930 Whirlpool White Spray Paint
39Enamal, Toast (1 Qt. Uncut)
39WPL 786032
39Platinum (Uncut)
39WPL 786020
3972113 Whirlpool Touch-Up Paint
39Golden Harvest
3972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
39Almond (Uncut)
39Leveler (Thinner)
39WP72107 Whirlpool Touchup
39799344 Whirlpool Refrigerator Paint
3972017 Whirlpool Appliance Touch-Up Paint White
39350956 Whirlpool Spray Assembly
39261900 Whirlpool Microwave Spray
39WPL 72112
39WPL 4312992
391
39Wire (14 Ga. 200 c Brown)
3918 Ga. 80~c Rating (Red)
39Wire (14 Ga. 150 c Yellow)
39Wire (14 Ga. 150 c Orange)
39Wire (14 Ga. 150 c Green)
39Wire (14 Ga. 150 c Brown)
39Wire (12 Ga. 150 c Black)
39Wire (14 Ga. 150 c Blue)
39WP261869 Whirlpool Microwave Paint
39242831 Whirlpool Oven Wire
3972032 Whirlpool Touch Up Paint Black
39285006 Whirlpool Spray
39Wire, 25“ Roll (White 14 GA.)
39Wire, 25` Roll (Red 14 Ga.)
39Wire, 25` Roll (Black 14 Ga.)
39350942 Whirlpool Spray Paint
39WPL 350806
