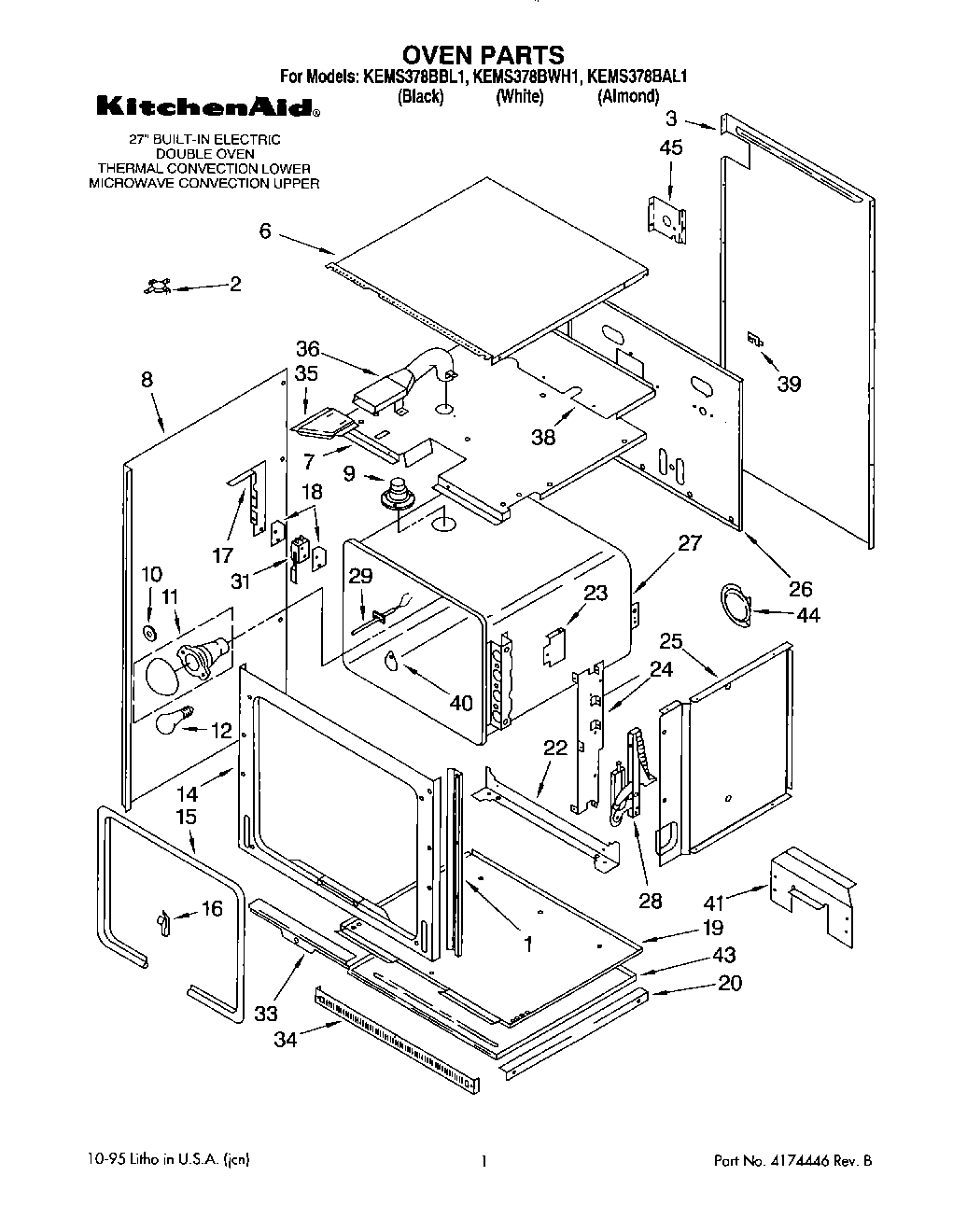

| 1 | Side Trim, Door (Black Model) |
| 1 | Side Trim, Door (White Model) |
| 1 | Side Trim, Door (Almond Model) |
| 2 | Fuse, Safety |
| 3 | Cabinet, Back |
| 6 | Cabinet, Top |
| 7 | Module, Top |
| 8 | Side, Cabinet (Left Hand) |
| 8 | Side, Cabinet (Right Hand) |
| 9 | Tube, Vent |
| 10 | WP3184533 Whirlpool Range Light Lens Gasket |
| 11 | W11594027 Whirlpool Range Oven Light Socket |
| 12 | RANGE ONLY 40W 120V APPL BULB |
| 14 | Frame, Front |
| 15 | Seal, Door |
| 16 | Clip, Oven Seal |
| 17 | Bracket, Switch |
| 18 | Insulator, Switch |
| 19 | Bottom, Modual |
| 20 | Rail, Support (2) |
| 22 | Support, Oven |
| 23 | Shield, Radiation |
| 24 | Bracket, Hinge |
| 25 | Side, Module (R.H. & L.H.) |
| 26 | Back, Module |
| 27 | Liner, Oven |
| 28 | Screw (6) |
| 28 | Hinge, Door |
| 29 | Sensor, Heat |
| 29 | Screw (2) |
| 31 | Screw (2) |
| 31 | Nut (2) |
| 31 | Switch, Door |
| 33 | Retainer, Seal |
| 34 | Vent, Lower Trim (Screw (4)) |
| 34 | Vent, Lower Trim (White Model) |
| 34 | Vent, Lower Trim (Screw (2)) |
| 34 | Vent, Lower Trim (Almond Model) |
| 34 | Vent, Lower Trim (Black) |
| 35 | Tube, Vent (Female) |
| 35 | Tube, Vent Female |
| 36 | Tube, Vent Male |
| 38 | Extension, Shelf |
| 39 | Cover, Cap Tube |
| 39 | Screw |
| 40 | Screw |
| 40 | Button, Plug |
| 41 | WPL 3183752 |
| 43 | Bottom, Oven |
| 44 | WP3177991 Whirlpool Screw |
| 44 | Probe Cover |
| 45 | Insulation, Oven |
| 45 | Bracket, Conduit |
| 45 | Insulation, Back |
