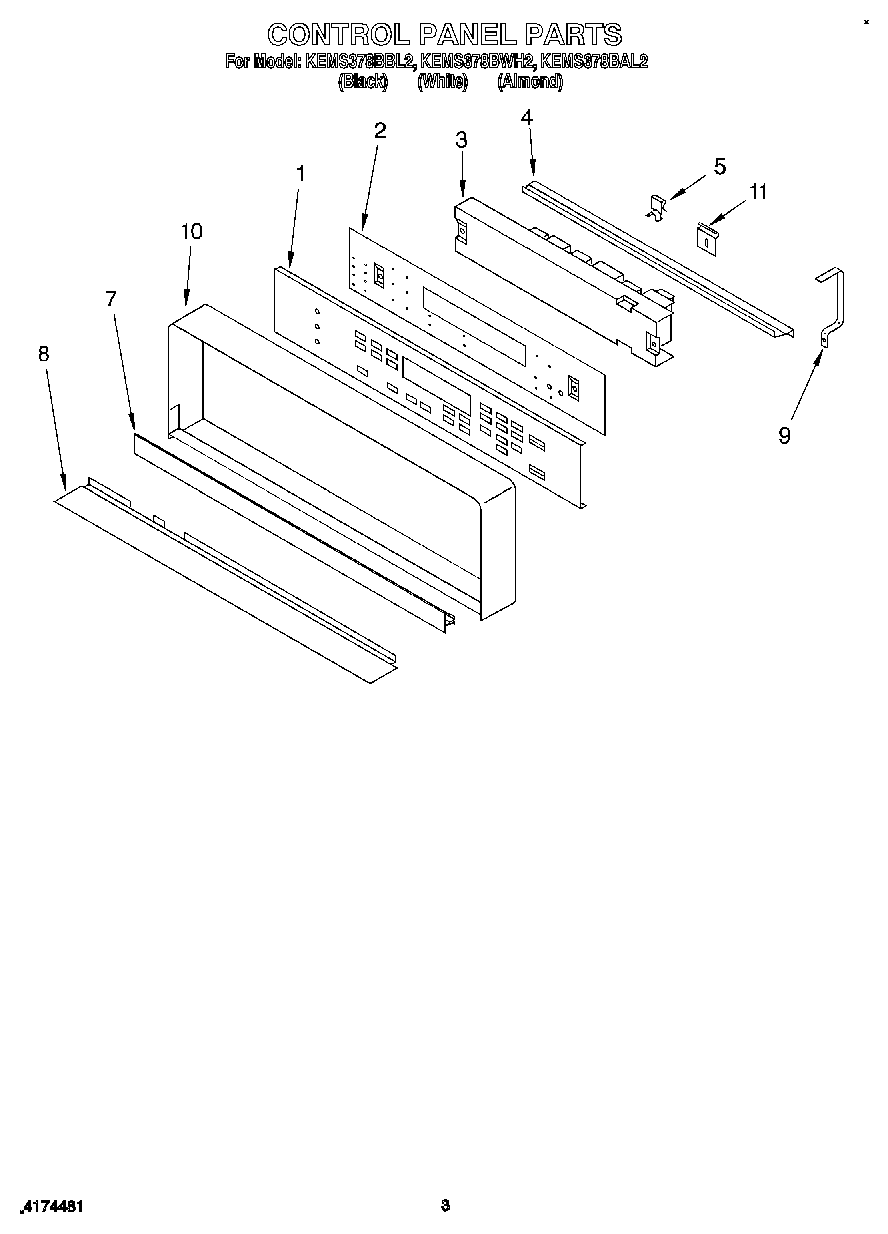

KEMS378BWH2 03 – CONTROL PANEL, LITERATUREadmin2025-04-26T10:32:44+00:00KEMS378BWH2 03 – CONTROL PANEL, LITERATURE
Products
| Position | Product |
|---|
| Guide, Auto Set |
| Cookbook Microwave |
| Tech Sheet |
| Installation Instructions |
| Cookbook T/C Oven |
| Label, Defrost Guide |
| Label, Auto Cook Guide |
| Use & Care Guide (Oven) |
| Use & Care Guide (Microwave) |
| 1 | Membrane, Switch (Black Model) |
| 1 | Membrane, Switch (White, Model) |
| 1 | Membrane, Switch (Almond, Model) |
| 2 | Bracket, Mounting Switch Membrane |
| 3 | Microcomputer |
| 4 | Screw |
| 4 | Retainer, Bracket |
| 5 | Clip, Retainer (3) |
| 7 | Door, Latch Handle (Black Model) |
| 7 | Door, Latch Handle (Almond Model) |
| 7 | Door, Latch Handle (White Model) |
| 7 | Screw (2) |
| 8 | Trim, Panel (Almond Model) |
| 8 | Trim, Panel (White Model) |
| 8 | Trim, Panel |
| 9 | Bracket (2) |
| 10 | Frame, Control Panel (White Model) |
| 10 | Frame, Control Panel (Almond Model) |
| 10 | Frame, Control Panel (Black Model) |
| 11 | Clip, Control Frame |
