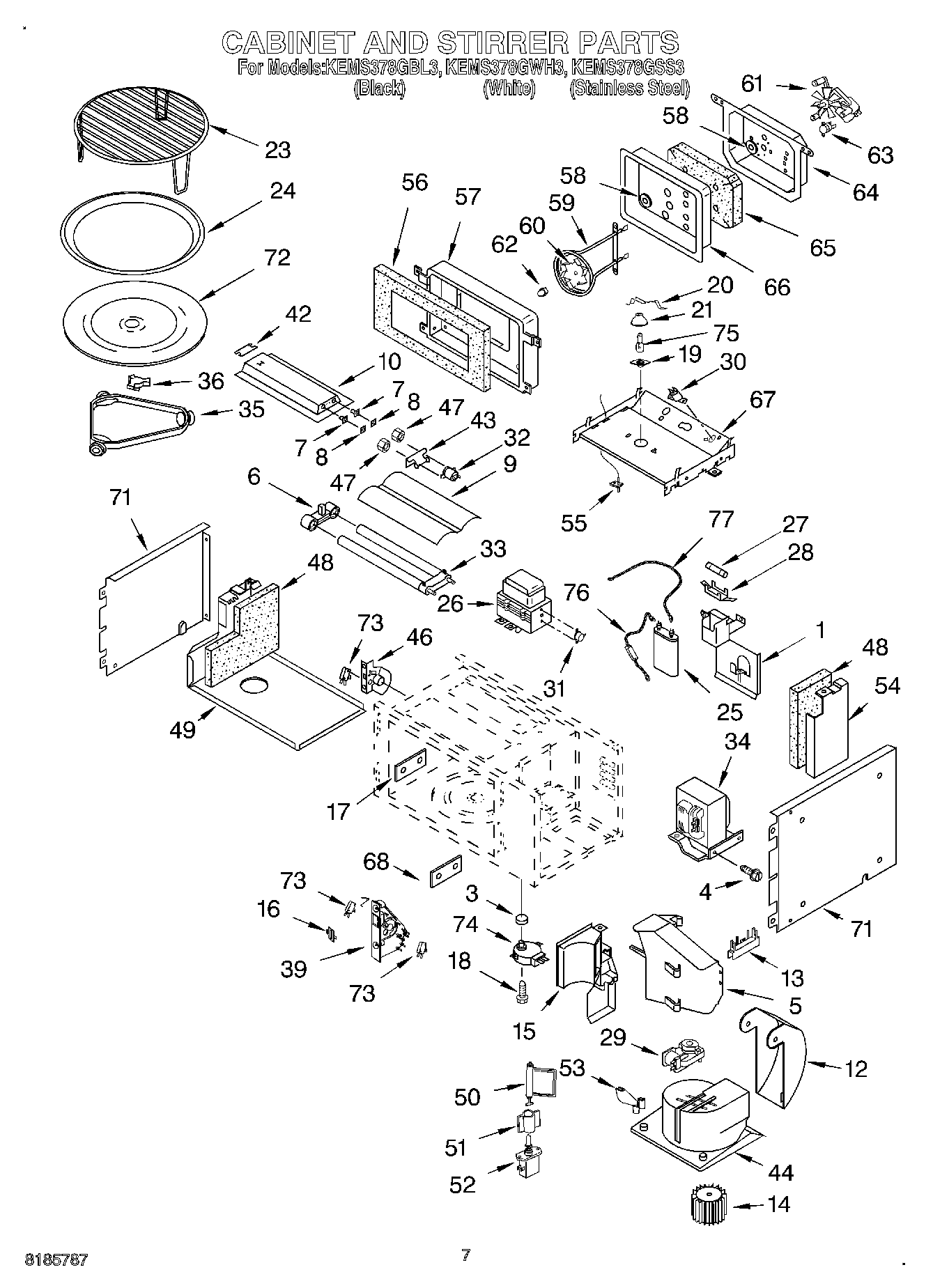

KEMS378GBL3 06 – CABINET AND STIRRER

Products

Position	Product
3	Ring, Rubber
4	Screw
5	Air Duct, Magnetron
6	Support, Tube
7	Plug, Ceramic
8	Bushing
9	Reflector
10	Chamber, Reflector
11	Damper
12	Duct, Inlet
13	Insulation, Switch
14	Fan Wheel
15	Duct, Air
16	Block, Slide
17	Cover Plate, Upper
18	8206180 Whirlpool Microwave Screw
19	W11193483 Whirlpool Microwave Lamp Lens
20	W10465869 Whirlpool Microwave Spring
21	423107022541 Whirlpool Microwave Reflector
22	Handle, Pan
23	4452220 Whirlpool Microwave Rack
24	WPW10120480 Whirlpool Crisper Pan
25	WP4375020 Whirlpool High Voltage Capacitor
26	WP4375424 Whirlpool Microwave Magnetron
27	WP4375321 Whirlpool Microwave Fuse
28	W10245194 Whirlpool Microwave Fuse Block
29	MOTOR-FAN
30	Thermostat
31	WP4375079 Whirlpool Microwave Thermostat
32	Thermostat
33	Q Tube Assembly
34	WP4375286 Whirlpool Microwave Transformer
35	Ring, Turntable
36	WP8183788 Whirlpool Microwave Turn Shaft
42	Plate, Grill
43	Bracket
44	Cap, Fan
46	W10727408 Whirlpool Microwave Switch
47	Nut
48	Insulation (Left Side)
48	Insulation (Right Side)
49	Plate, Side - Bottom
50	Valve
51	Screw To Valve
52	461967842541 Whirlpool Microwave Actuator
53	Air Bleed
54	Shield, Heat Right
55	Sensor, Temp.
56	Insulation
57	Duct, Heater
58	Washer
59	Element, Heater
60	W11512064 Whirlpool Microwave Fan
61	Motor, Fan
62	Left-Threaded Nut (Serviced With Motor Item 61)
63	W11607085 Whirlpool Microwave Thermostat Fix
64	Shield, Heat
65	Insulation
66	Chamber, Heat Cabinet
67	Isolation Plate
68	Cover Plate
71	Side Plate (Left)
71	Side Plate (Right)
72	W11373838 Whirlpool Glass Tray
73	W10211972 Whirlpool Microwave Switch
74	W10642989 Whirlpool Microwave Oven Turntable Motor
75	WPW10440740 Whirlpool Microwave Light Bulb
76	WPW10687786 Whirlpool Microwave Diode
