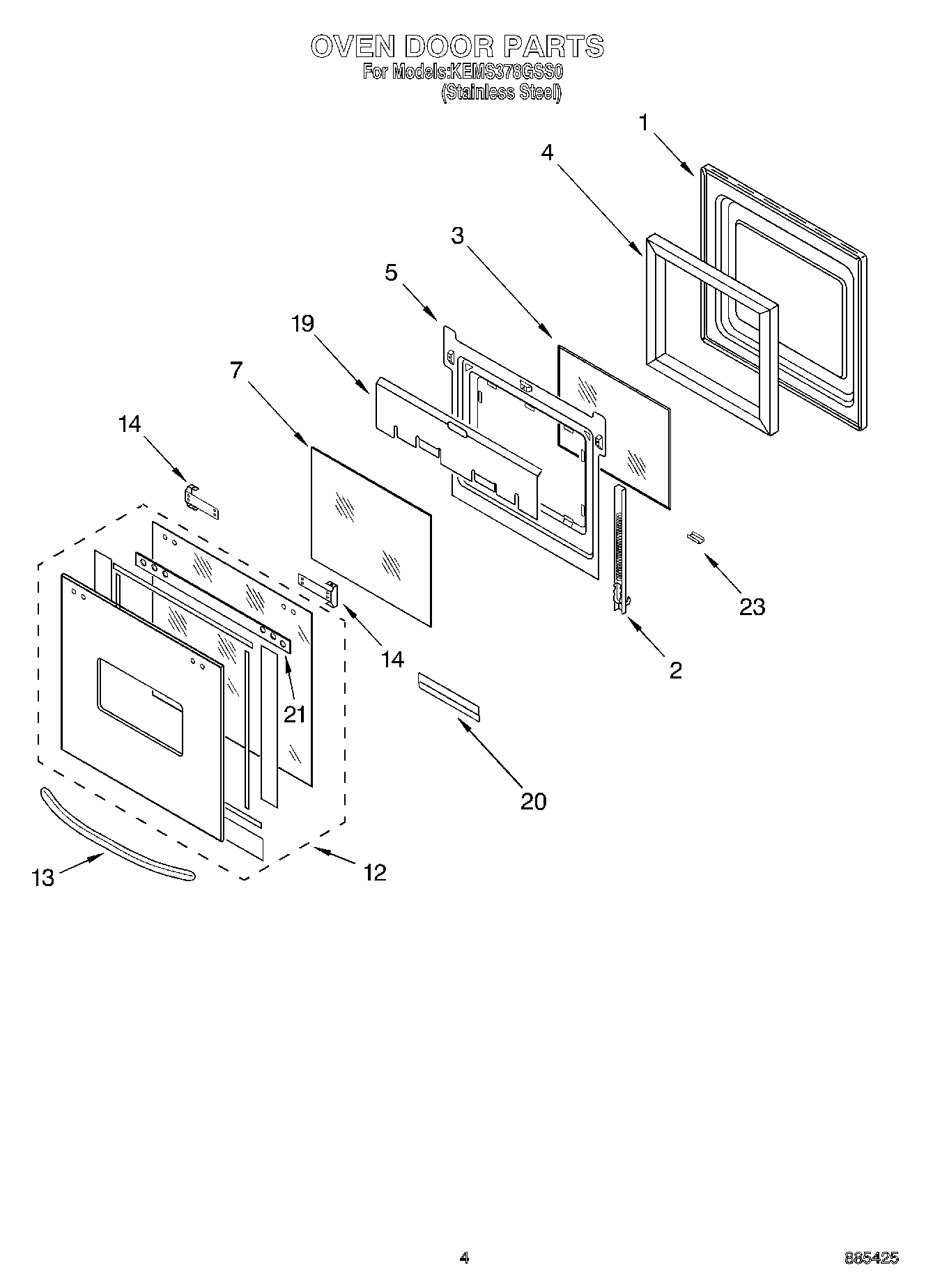

KEMS378GSS0 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4455525 Whirlpool Oven Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
12	WP4452315 Whirlpool Door Glass
13	Door Handle (Stainless Steel)
14	WPW10132940 Whirlpool Dishwasher Screw
14	Bracket, Handle (Left Hand)
14	4455803 Whirlpool Oven Bracket
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Top
23	Retainer, Glass-Clip (Stainless Steel)
