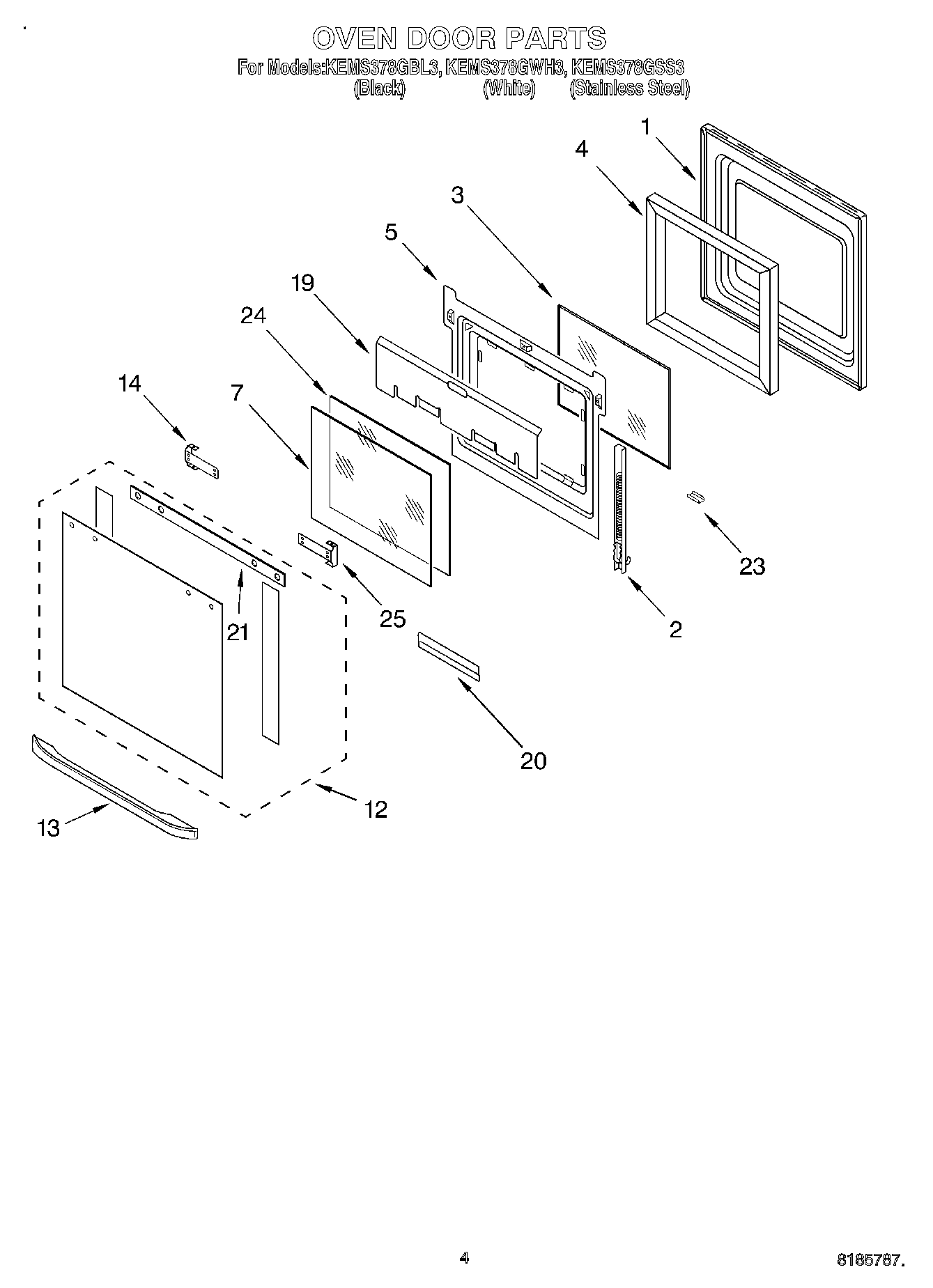

KEMS378GWH3 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4455525 Whirlpool Oven Door Hinge
2	WP4449743 Whirlpool Screw
2	WP4455524 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
12	Door Glass, Assy (Black Model)
12	WP4452315 Whirlpool Door Glass
12	Door Glass, Assy (White Model)
13	Door Handle (Stainless Steel)
13	Handle (Black Model)
13	Handle (White Model)
14	Bracket, Handle
14	Screw
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Top
23	WP3400832 Whirlpool Screw
23	Retainer, Glass-Clip (Stainless Steel)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	Glass, Inner
25	Bracket, Handle Stainless Steel Model (Left Hand)
25	4455803 Whirlpool Oven Bracket
