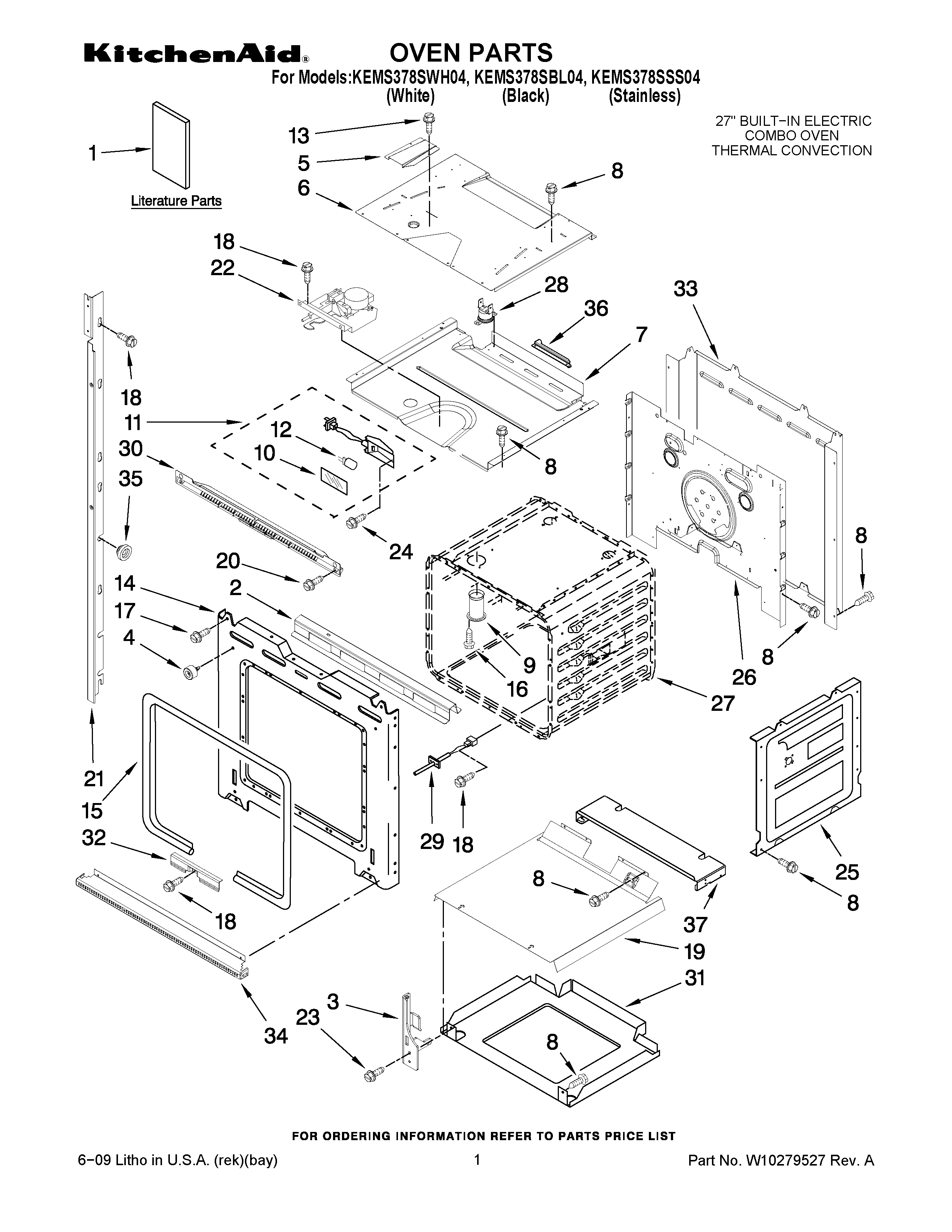

KEMS378SBL04 01 – OVEN PARTS

Products

Position	Product
NI	Insulation, Back
NI	Insulation, Wrap
1	Installation Instructions
1	TECH SHEET (FRENCH)
1	Tech Sheet (English)
1	Use & Care Guide (Combo)
1	Use & Care Guide (Microwave)
1	Easy Set Guide (Microwave)
1	Easy Set Guide (Oven)
1	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
2	Bracket, Base
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
5	Exhaust,Vent Slope
6	Divider, Center Vent
7	Top Chassis
8	WP4449809 Whirlpool Screw
9	W10861715 Whirlpool Vent Tube
10	W10169756 Whirlpool Light Lens
11	WPW10307114 Whirlpool Light
12	BULB-LIGHT
13	WP3400832 Whirlpool Screw
14	Frame, Front
15	Gasket, Door
16	SCREW
17	Screw
18	W10142289 Whirlpool Air Conditioner Screw
19	Support, Insulation
20	WP4450038 Whirlpool Screw
21	MOUNTING RAIL,SIDE (RIGHT)
21	MOUNTING RAIL,SIDE (LEFT)
21	Mounting Rail, Side Left (White)
21	Mounting Rail, Side Right (White)
22	W11029221 Whirlpool Door Latch
23	WP4449743 Whirlpool Screw
24	4449748 Whirlpool Oven Screw
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	CABINET (NOT A SERVICEABLE PART)
28	WP8304452 Whirlpool Range Thermal Fuse
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Vent, Center
31	Base, Chassis
32	Retainer, Gasket
33	Cover, Back
34	Trim, Bottom (Stainless)
34	Trim, Bottom (White)
34	Trim, Bottom (Black)
35	WP4448444 Whirlpool Grommet
36	BRACKET, THERMOSTAT
37	Support, Microwave Module
