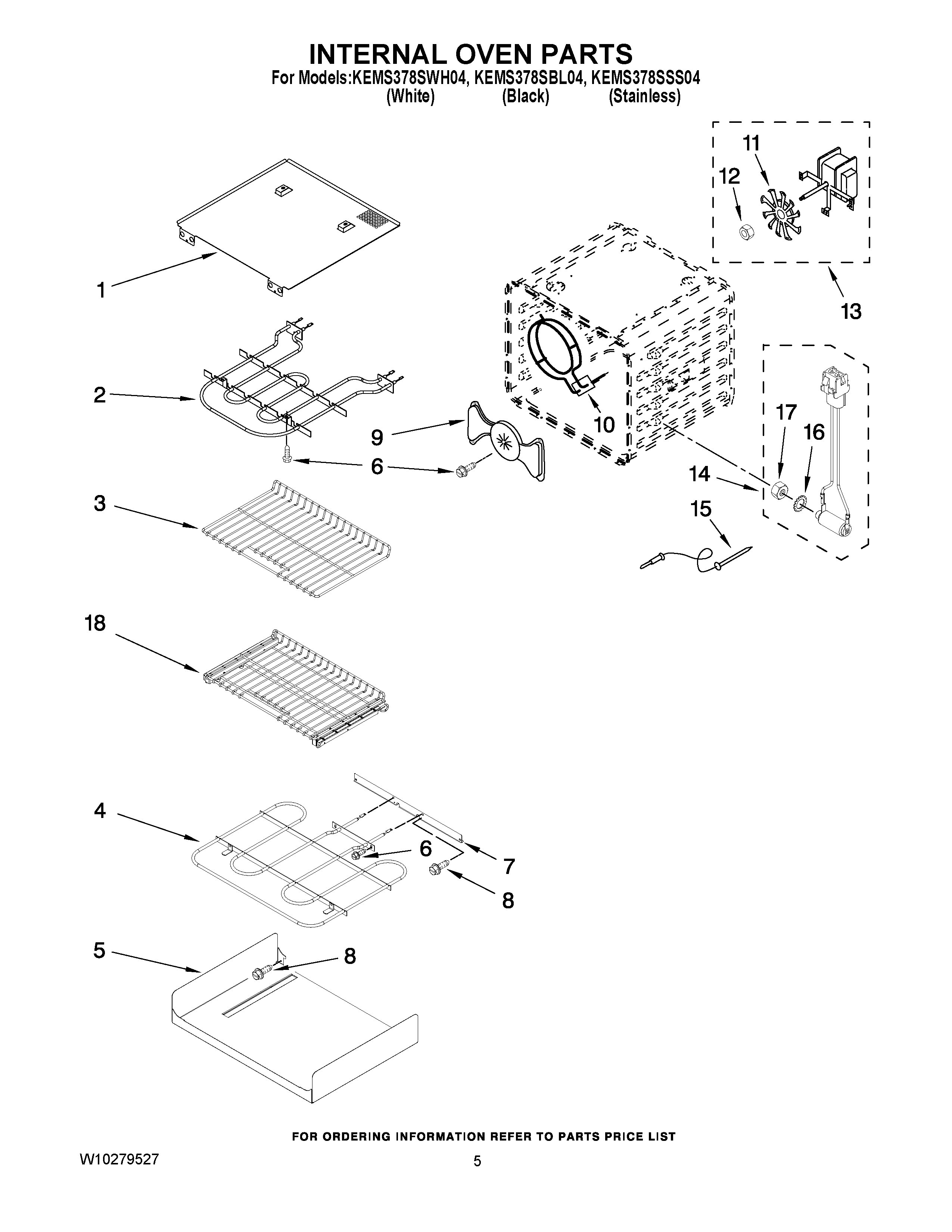

KEMS378SBL04 04 – INTERNAL OVEN PARTS

Products

Position	Product
1	WP8304602 Whirlpool Heat Shield Assembly
2	ELMNT-BROL
3	Rack, Oven
4	ELMNT-BAKE
5	Tray, Hidden Bake
6	WP4449154 Whirlpool Screw
7	4450039 Whirlpool Oven Access Cover
8	WP4449809 Whirlpool Screw
9	Cover, Fan
10	WP9760769 Whirlpool Element Assembly
11	W10758272 Whirlpool Convection Fan
12	WPW10116349 Whirlpool Nut
13	W10794022 Whirlpool Oven Cooktop Fan Motor
14	8186589 Whirlpool Jack Probe
15	WP9755542 Whirlpool Oven Meat Probe
16	WP9755547 Whirlpool Lockwasher
17	WP9755546 Whirlpool Locknut
18	Oven Rack (Sliding)
