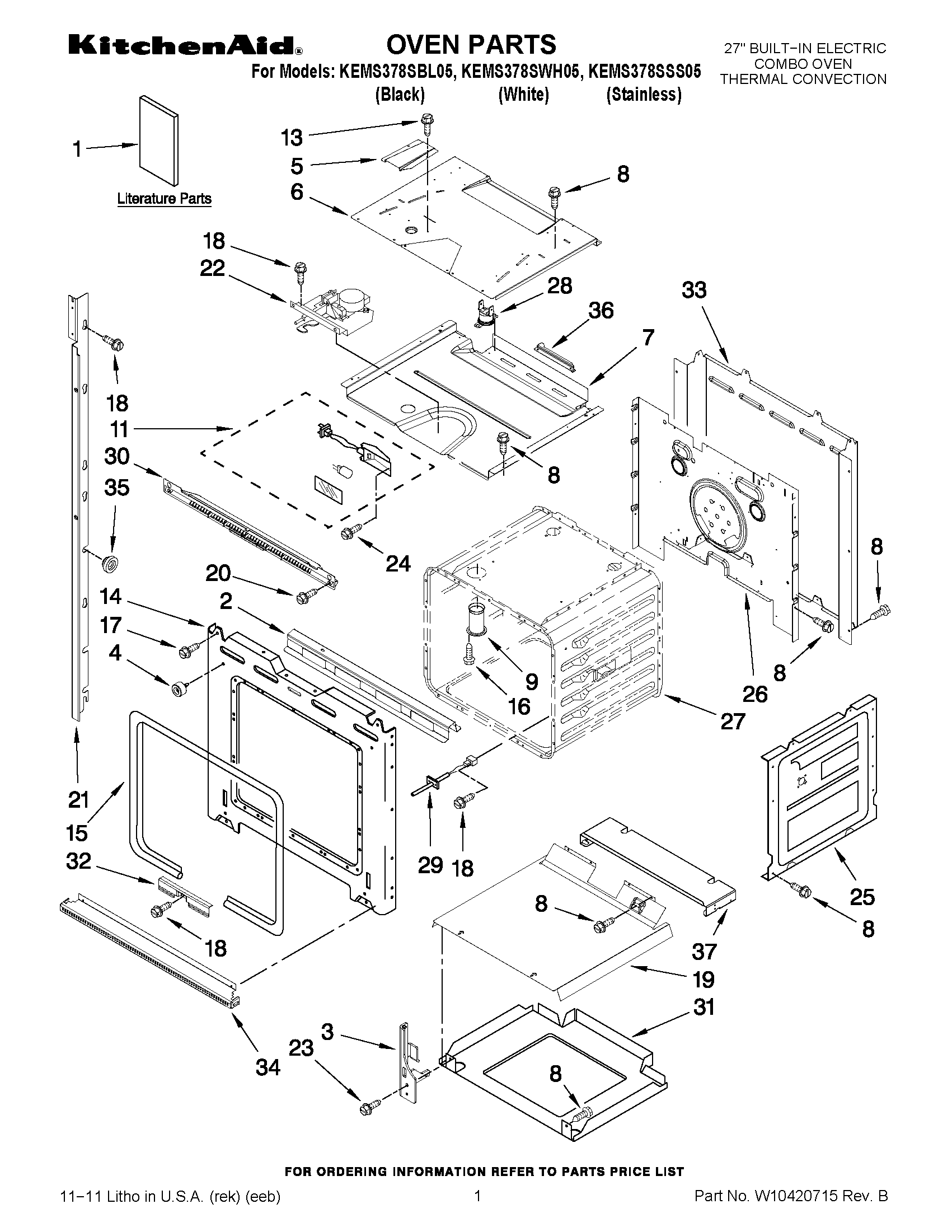

KEMS378SBL05 01 – OVEN PARTS
Written by
in
KEMS378SBL05 01 – OVEN PARTS
Products
Position
Product
NI
Insulation, Wrap
NI
Insulation, Back
1
Easy Set Guide (Oven)
1
TECH SHEET (FRENCH)
1
Tech Sheet (English)
1
Use & Care Guide (Combo)
1
Use & Care Guide (Microwave)
1
Easy Set Guide (Microwave)
1
Installation Instructions
1
INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1
SAFER COOKING TIPS (ENGLISH
1
OPERATING INSTRUCT
1
Safer Cooking Tips (French)
2
Bracket, Base
3
WP4455606 Whirlpool Right Hand Hinge
3
WP4455605 Whirlpool Left Hand Hinge
4
W10105790 Whirlpool Bumper
5
Exhaust,Vent Slope
6
Divider, Center Vent
7
Top Chassis
8
WP4449154 Whirlpool Screw
9
W10861715 Whirlpool Vent Tube
11
WPW10307114 Whirlpool Light
13
WP3400832 Whirlpool Screw
14
Frame, Front
15
Gasket, Door
16
SCREW
17
Screw
18
SCREW
19
Support, Insulation
20
WP4450038 Whirlpool Screw
21
MOUNTING RAIL,SIDE (RIGHT)
21
Mounting Rail, Side Left (White)
21
Mounting Rail, Side Right (White)
21
MOUNTING RAIL,SIDE (LEFT)
22
W11029221 Whirlpool Door Latch
23
WP4449743 Whirlpool Screw
24
4449748 Whirlpool Oven Screw
25
W10782197 Whirlpool Side Panel
26
Back, Chassis
27
CABINET (NOT A SERVICEABLE PART)
28
WP8304452 Whirlpool Range Thermal Fuse
29
WPW10131825 Whirlpool Oven Temperature Sensor
30
Vent, Center
31
Base, Chassis
32
Retainer, Gasket
33
Cover, Back
34
Trim, Bottom
34
Trim, Bottom (White)
34
Trim, Bottom (Black)
35
WP4448444 Whirlpool Grommet
36
BRACKET, THERMOSTAT
37
SUPPORT, MICROWAVE MODULE
←
