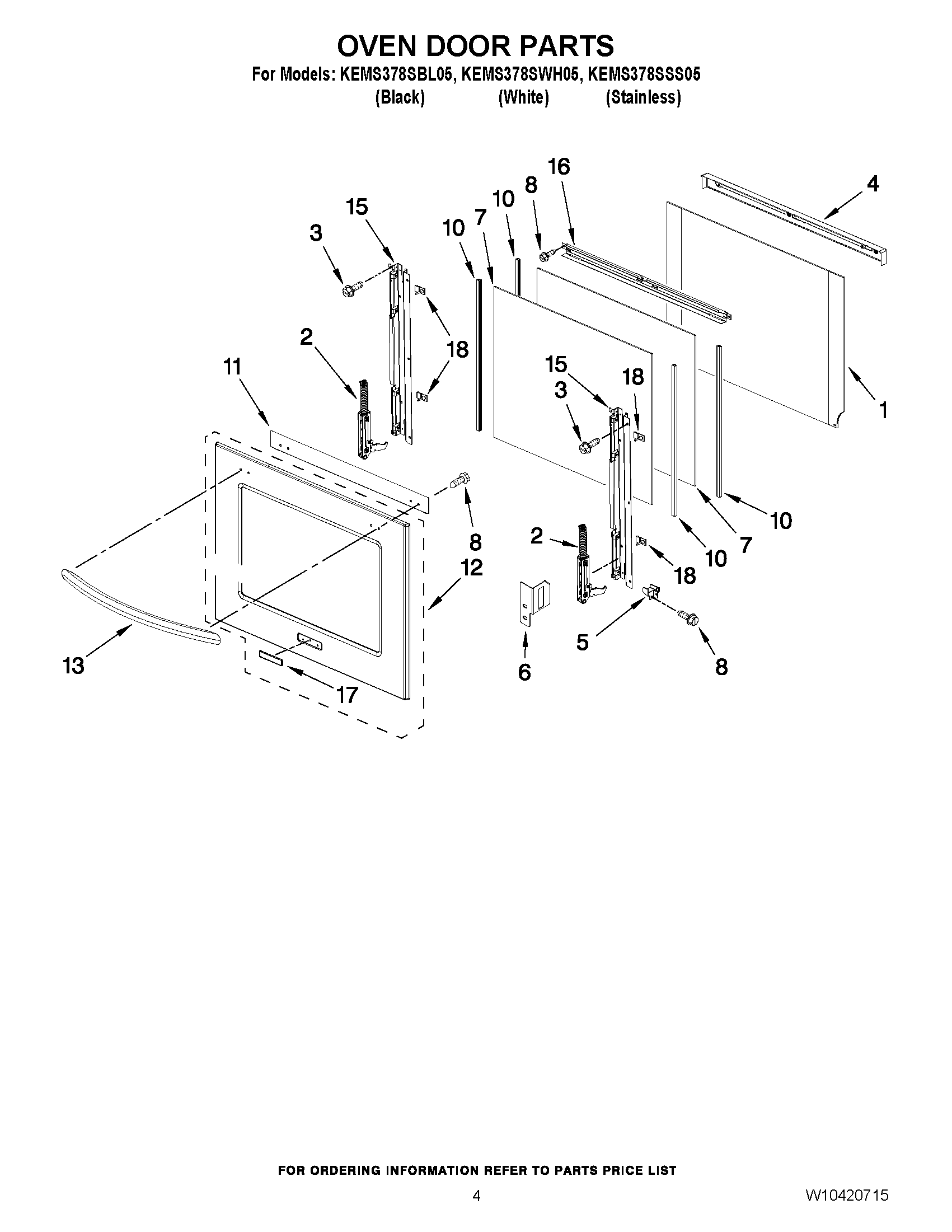

KEMS378SBL05 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	HINGE, DOOR
3	WP3196183 Whirlpool Screw
4	Vent, Door Top
5	Bracket, Door (Right)
5	8304378 Whirlpool Oven Support Bracket
6	COVER,HINGE (LEFT)
6	COVER,HINGE (RIGHT)
7	Glass, Inner
8	WP4449154 Whirlpool Screw
10	W10754409 Whirlpool Seal
11	Bracket, Handle
12	Door Glass, Assembly Includes 17 (White)
12	Door Glass, Assembly Includes 17 (Black)
12	DOOR GLASS, ASSEMBLY INCLUDES No.17
13	Handle, Door
13	Handle, Door (Black)
13	Handle, Door (White)
15	Frame, Door Side
16	Door, Top Bracket
17	WPW10243391 Whirlpool Refrigerator Nameplate
17	WPW10243393 Whirlpool Dishwasher Nameplate
17	WPW10243392 Whirlpool Dishwasher Nameplate
18	Bumper, Glass
