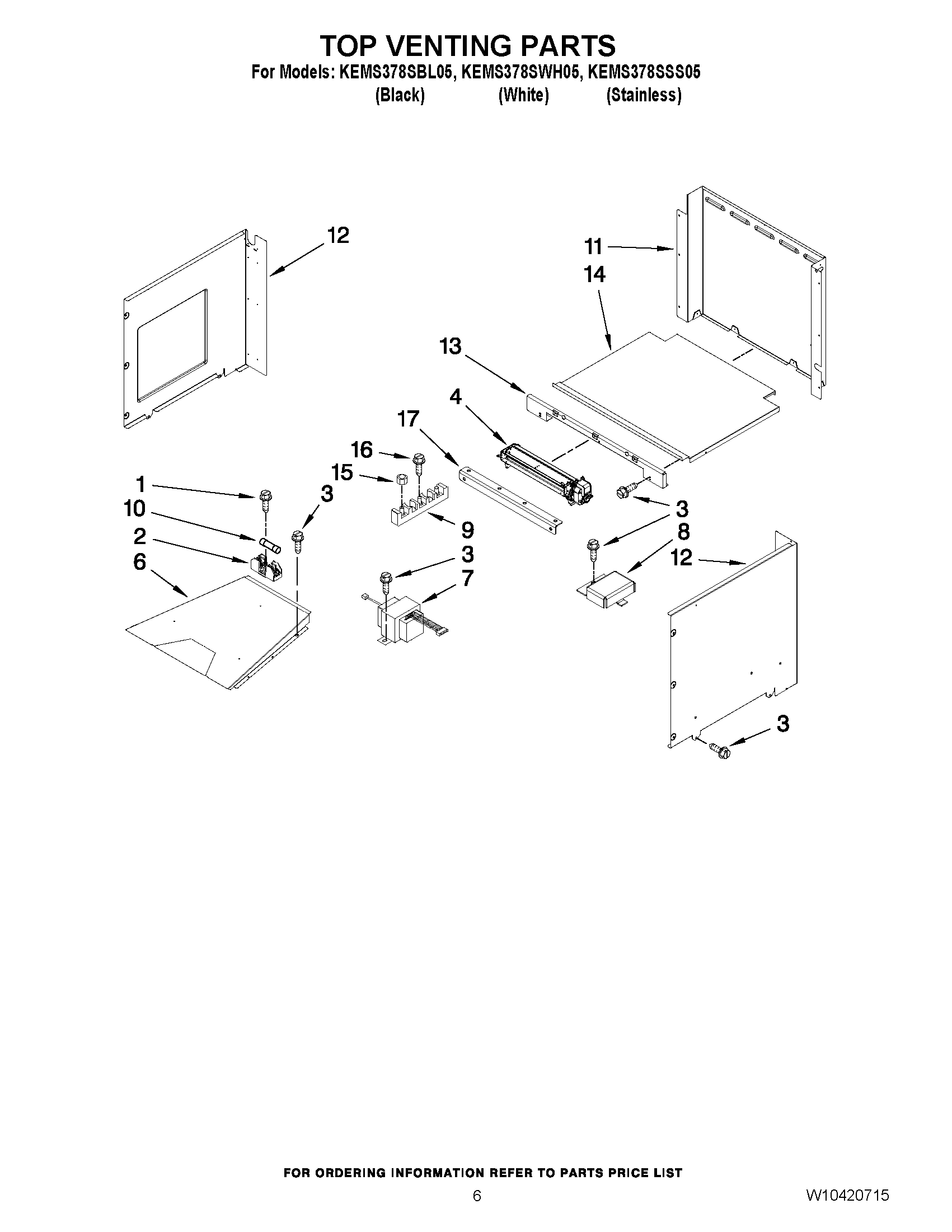

KEMS378SBL05 05 – TOP VENTING PARTS
Written by
in
KEMS378SBL05 05 – TOP VENTING PARTS
Products
Position
Product
1
WP4449154 Whirlpool Screw
2
4454949 Whirlpool Oven Fuse Block
3
SCREW
4
WP8303972 Whirlpool Blower
6
Duct, Air Outlet
7
Transformer, Control
8
8285593 Whirlpool Oven Wire Cover
9
BLOCK, TERMINAL
10
WPW10017410 Whirlpool Fuse
11
Back Chassis Panel
12
Side, Combo (Right)
12
Side, Combo (Left)
13
Vent, Center
14
Cover, Top
15
Nut
16
Screw
17
BRACKET, MICROWAVE
←
