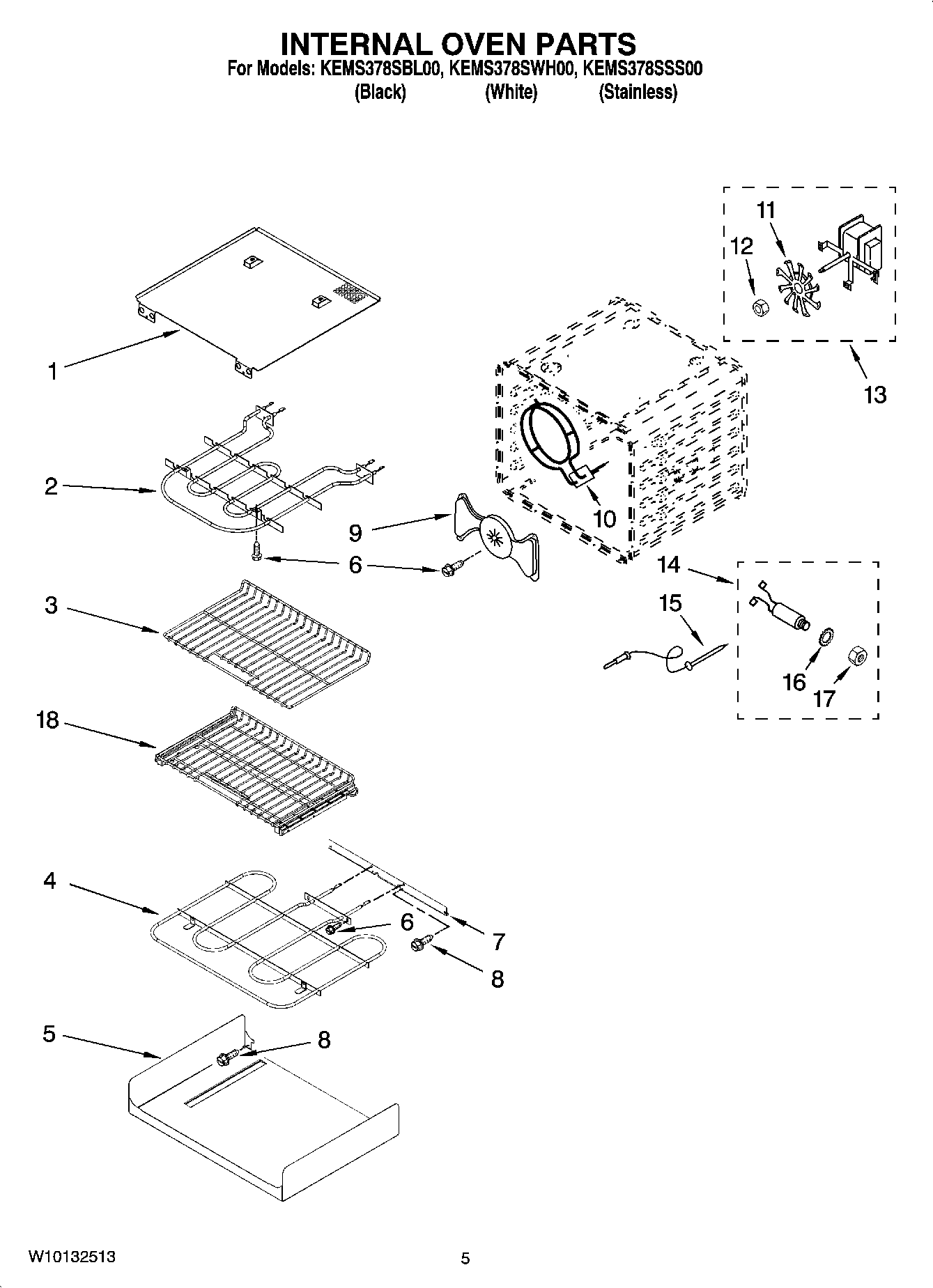

KEMS378SSS00 04 – INTERNAL OVEN PARTS

Products

Position	Product
1	WP8304602 Whirlpool Heat Shield Assembly
2	ELMNT-BROL
3	Rack, Oven
4	ELMNT-BAKE
5	Tray, Hidden Bake
6	WP4449154 Whirlpool Screw
7	4450039 Whirlpool Oven Access Cover
8	WP4449809 Whirlpool Screw
9	Cover, Fan
10	WP9760769 Whirlpool Element Assembly
11	WP4452226 Whirlpool Convection Fan
12	Nut
13	Motor Convection
14	8186589 Whirlpool Jack Probe
15	WP9755542 Whirlpool Oven Meat Probe
16	WP9755547 Whirlpool Lockwasher
17	WP9755546 Whirlpool Locknut
18	Oven Rack (Sliding)
