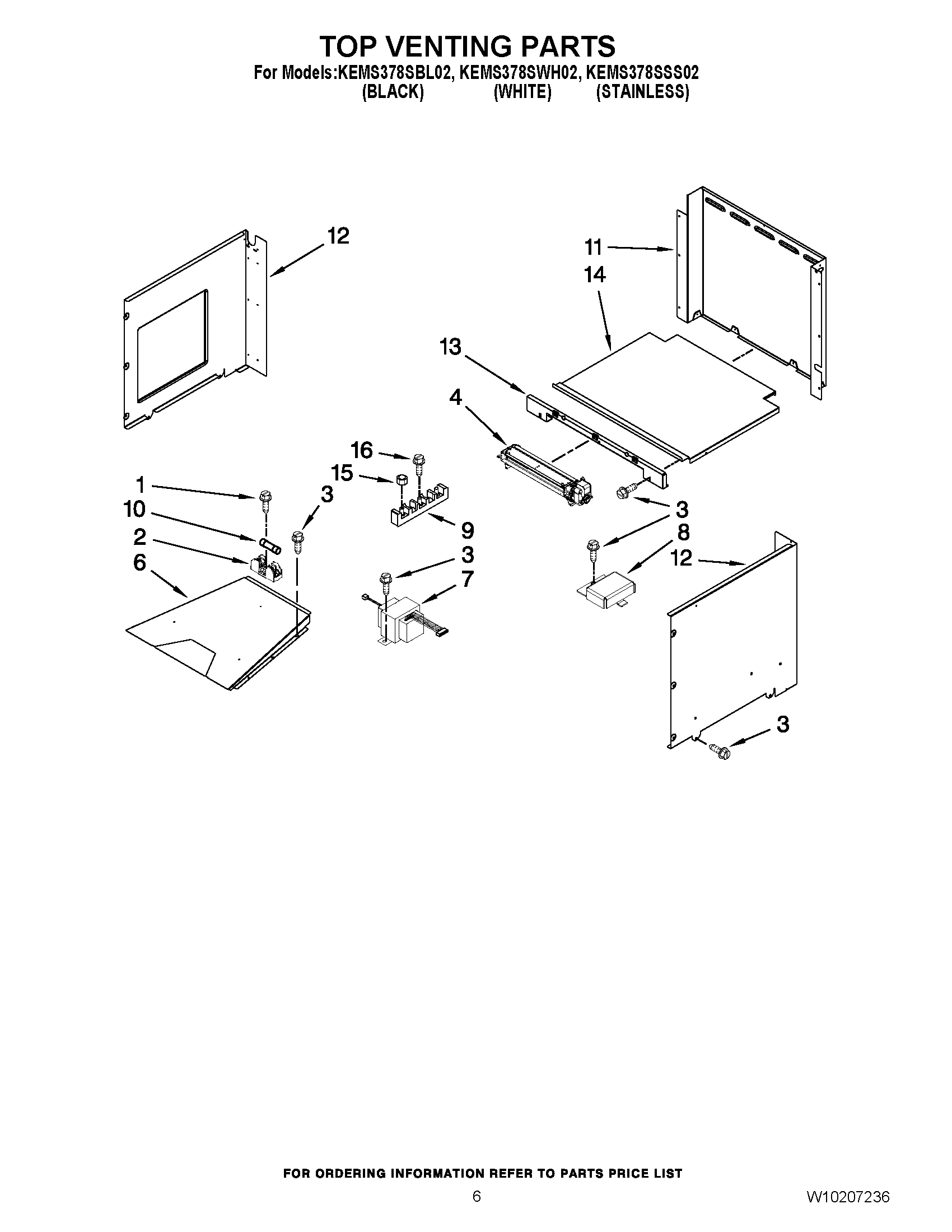

KEMS378SSS02 05 – TOP VENTING PARTS

Products

Position	Product
1	WP4449154 Whirlpool Screw
2	4454949 Whirlpool Oven Fuse Block
3	WP4449809 Whirlpool Screw
4	WP8303972 Whirlpool Blower
6	Duct, Air Outlet
7	Transformer, Control
8	8285593 Whirlpool Oven Wire Cover
9	WP8203546 Whirlpool Terminal Block
10	WPW10017410 Whirlpool Fuse
11	Back Chassis Panel
12	Side, Combo (Right)
12	Side, Combo (Left)
13	Channel, Rear Combo
14	Cover, Top
15	Nut
16	Screw
