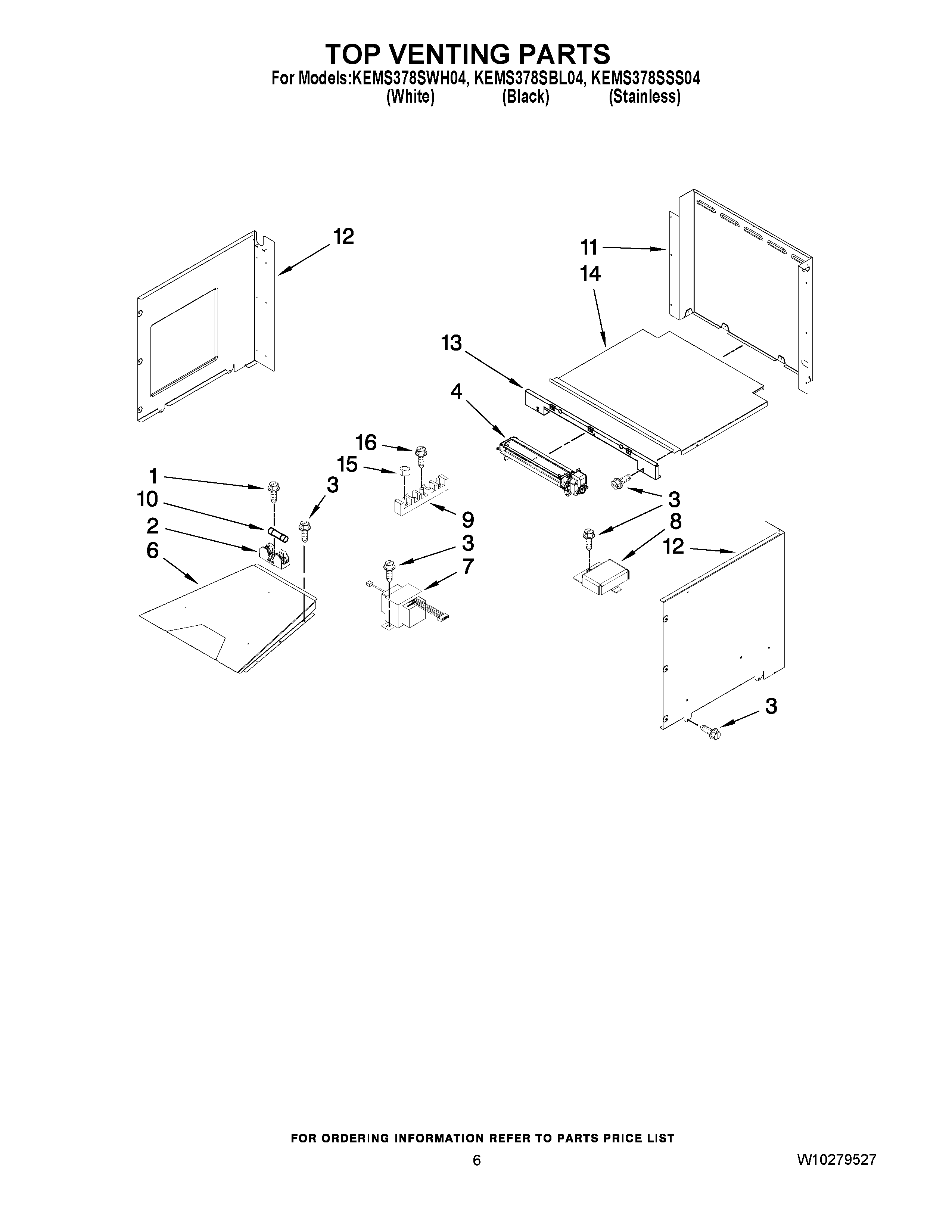

KEMS378SWH04 05 – TOP VENTING PARTS

KEMS378SWH04 05 – TOP VENTING PARTS

Written by

in

KEMS378SWH04 05 – TOP VENTING PARTS

Products

PositionProduct
1WP4449154 Whirlpool Screw
24454949 Whirlpool Oven Fuse Block
3WP4449809 Whirlpool Screw
4WP8303972 Whirlpool Blower
6Duct, Air Outlet
7Transformer, Control
88285593 Whirlpool Oven Wire Cover
9WP8203546 Whirlpool Terminal Block
10WPW10017410 Whirlpool Fuse
11Back Chassis Panel
12Side, Combo (Right)
12Side, Combo (Left)
13Channel, Rear Combo
14Cover, Top
15Nut
16Screw
