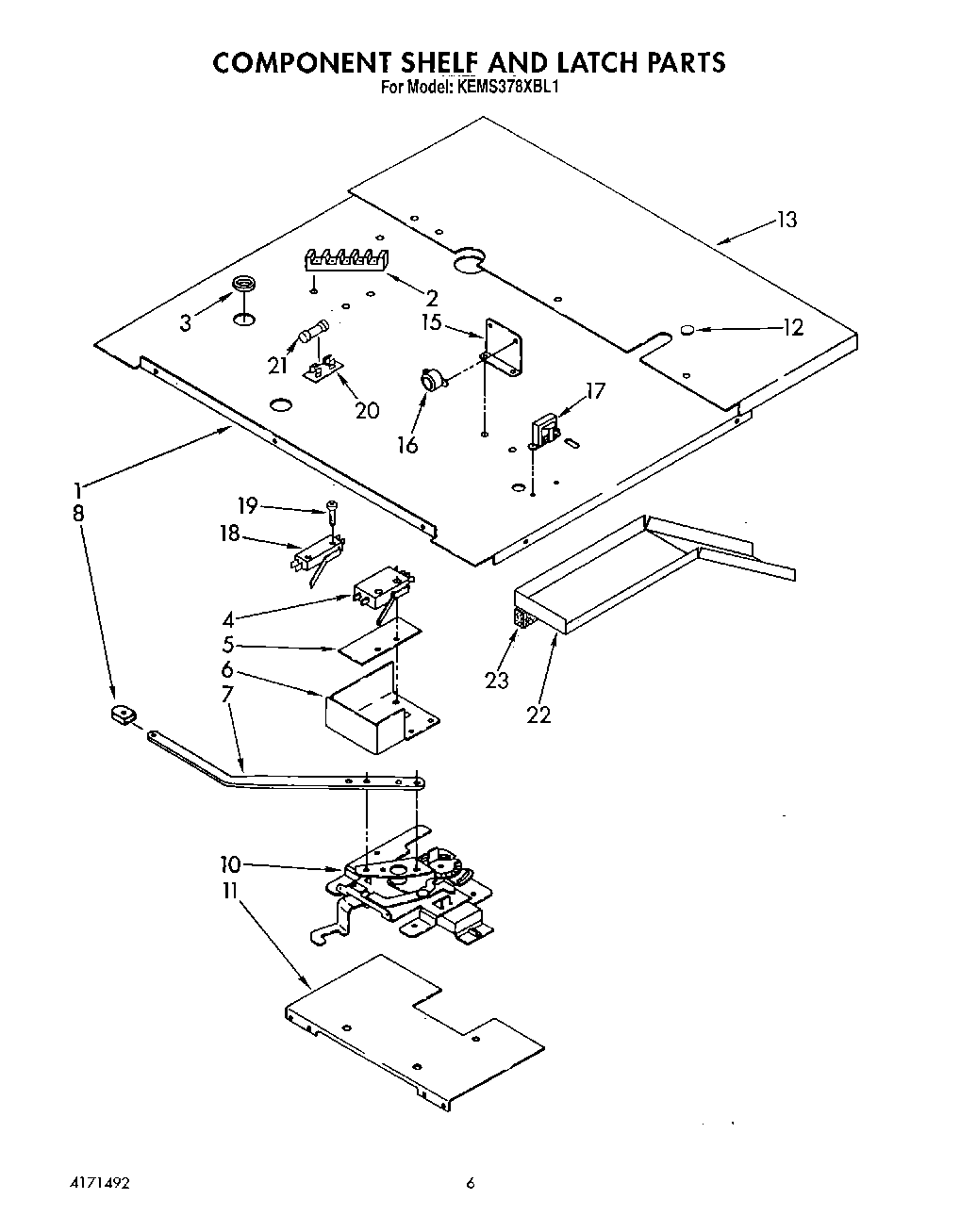

KEMS378XBL1 03 – COMPONENT SHELF AND LATCH

Products

Position	Product
1	Shelf, Component
2	W10841059 Whirlpool Screw
2	WP8203546 Whirlpool Terminal Block
3	Bushing, Electric
4	Switch, Latch
5	Insulator, Switch
6	Guard, Latch
7	Handle, Latch
8	Screw
8	Knob, Latch Handle
10	Latch, Mechanism
11	Plate, Mounting
12	Plug, Button
13	Extension, Shelf
15	Screw,
15	Bracket, Buzzer
16	Buzzer, Meat Probe
16	Screw (2)
17	Transformer
17	WP3177991 Whirlpool Screw
18	Switch, Latch
19	Screw (2)
20	4454949 Whirlpool Oven Fuse Block
21	WPW10017410 Whirlpool Fuse
22	Baffle, Module
22	WP90767 Whirlpool Screw
23	Seal, Foam
