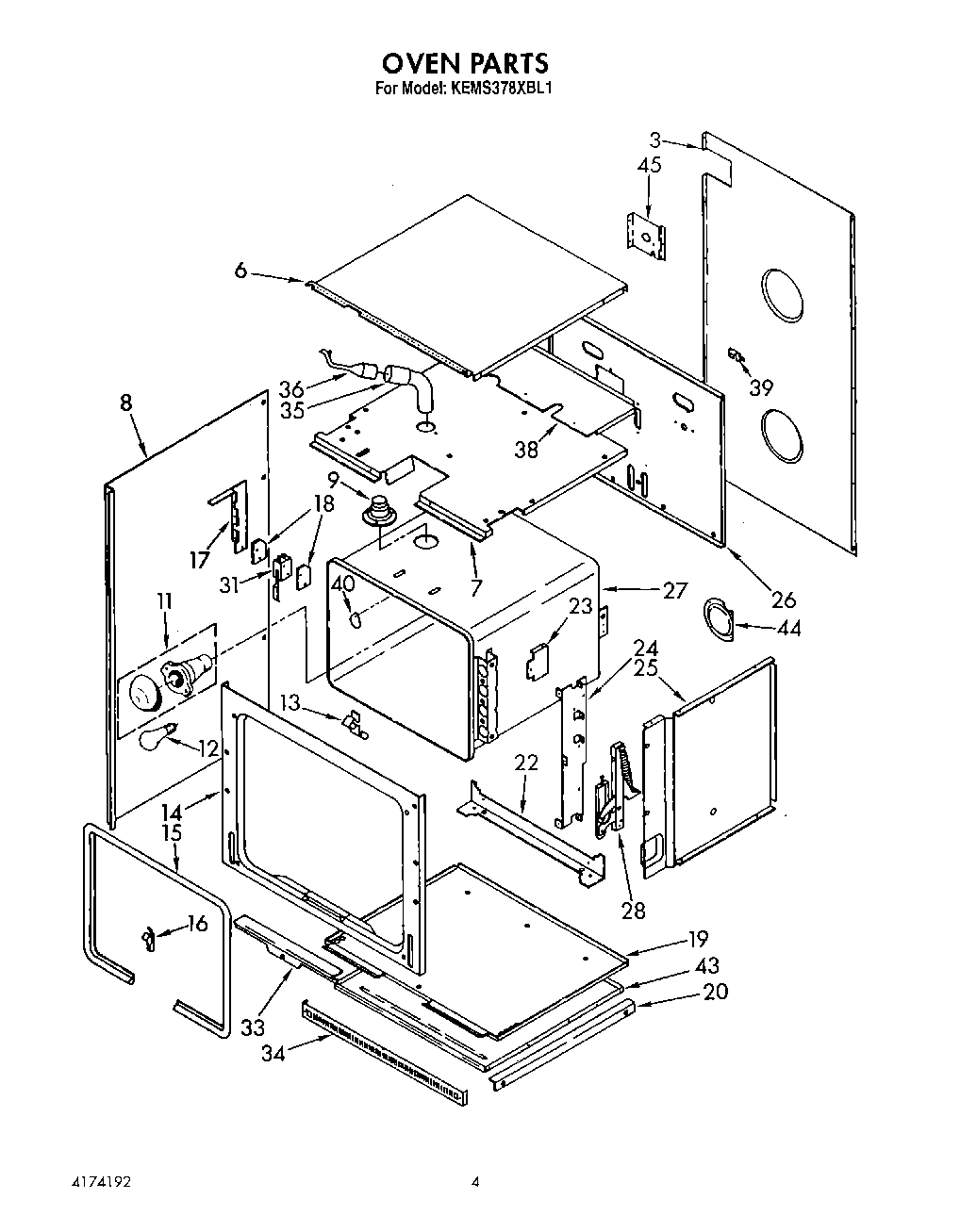

KEMS378XWH1 02 – OVEN

Products

Position	Product
3	Cabinet, Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (Right Hand)
8	Side, Cabinet (Left Hand)
9	Tube, Vent
9	Screw (3)
11	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	WP90767 Whirlpool Screw
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	SCREW
33	Screw (4)
33	Retainer, Seal
34	Vent, Lower Trim (White)
34	Vent, Lower Trim (Black)
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
35	Tube, Vent Female
36	Tube, Vent Male
38	Extension, Shelf
39	Cover, Cap Tube
39	Screw
40	Plate, Cover
43	Bottom, Oven
44	WP3177991 Whirlpool Screw
44	Probe Cover
45	Insulation, Back
45	Bracket, Conduit
45	Insulation, Oven
