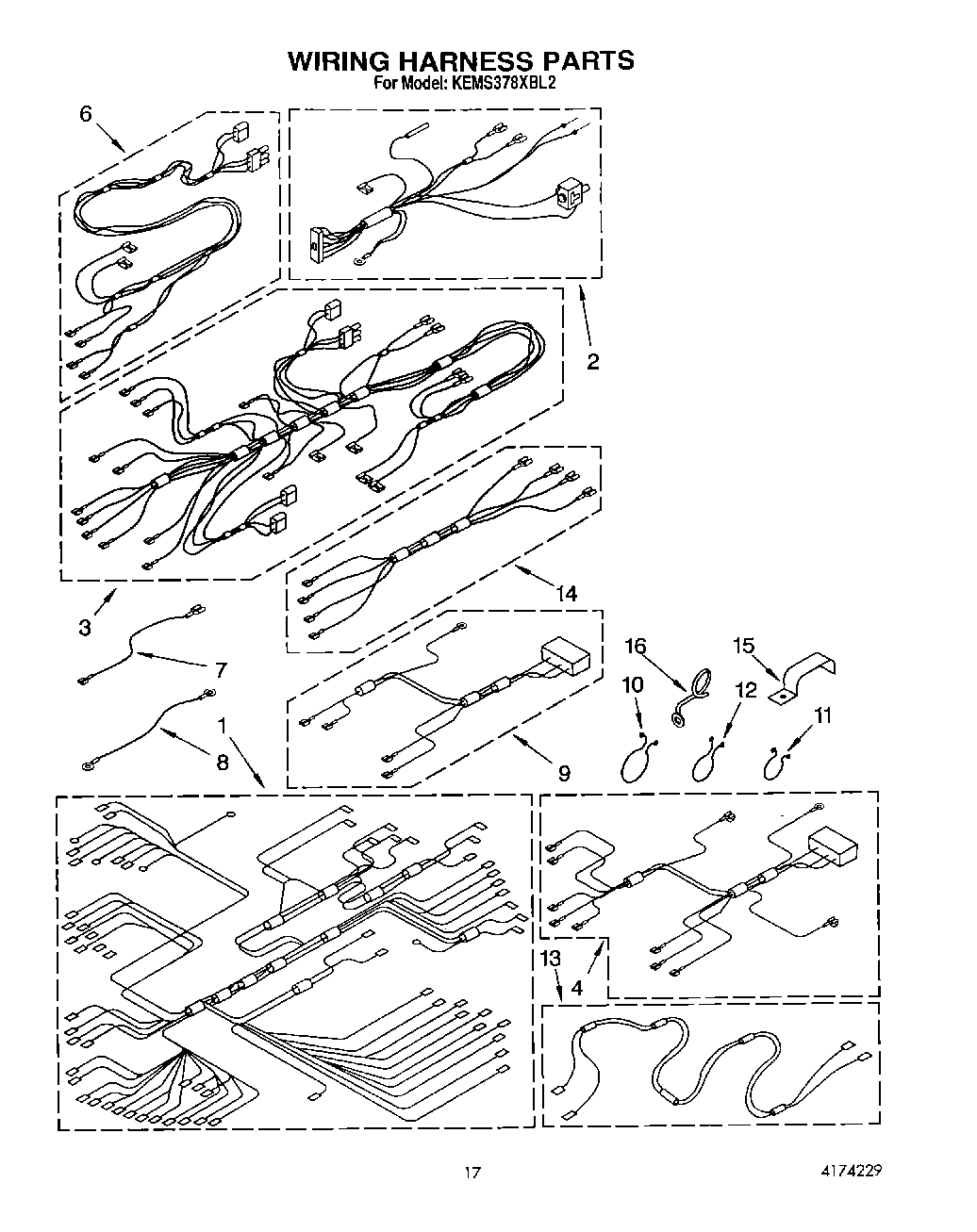

KEMS378XWH2 13 – WIRING HARNESS

Products

PositionProduct
1Harness, Wiring (Main Oven)
2Jack Assy.
3Harness, Wiring (Main Microwave)
4Harness, Wiring (T/C Meat Probe)
5Adapter, Terminal
6Harness, Wire (Base Plate)
7Wire, Jumper
8Wire, Ground
9Harness, Wire (Microwave Power)
10Clip, Harness
11Clip, Harness
12Clip, harness
13Wiring Harness (Door Switch) Lower)
14Harness, Wire Temperature Probe
157111P002-60 Whirlpool Clamp
15WP112432 Whirlpool Nut Assembly
16Standoff, Wire
