KEMS378YAL0 03 – CONTROL, LITERATUREadmin2025-04-26T09:54:27+00:00KEMS378YAL0 03 – CONTROL, LITERATURE
Products
| Position | Product |
|---|
| Label, Auto Cook Guide |
| Repair Parts List |
| Tech Sheet |
| Use & Care Guide (Oven) |
| Installation Instructions |
| Use & Care Guide (Microwave) |
| Cookbook T/C Oven |
| Chart, Quick Ref. |
| Label, Defrost Guide |
| Cookbook Microwave |

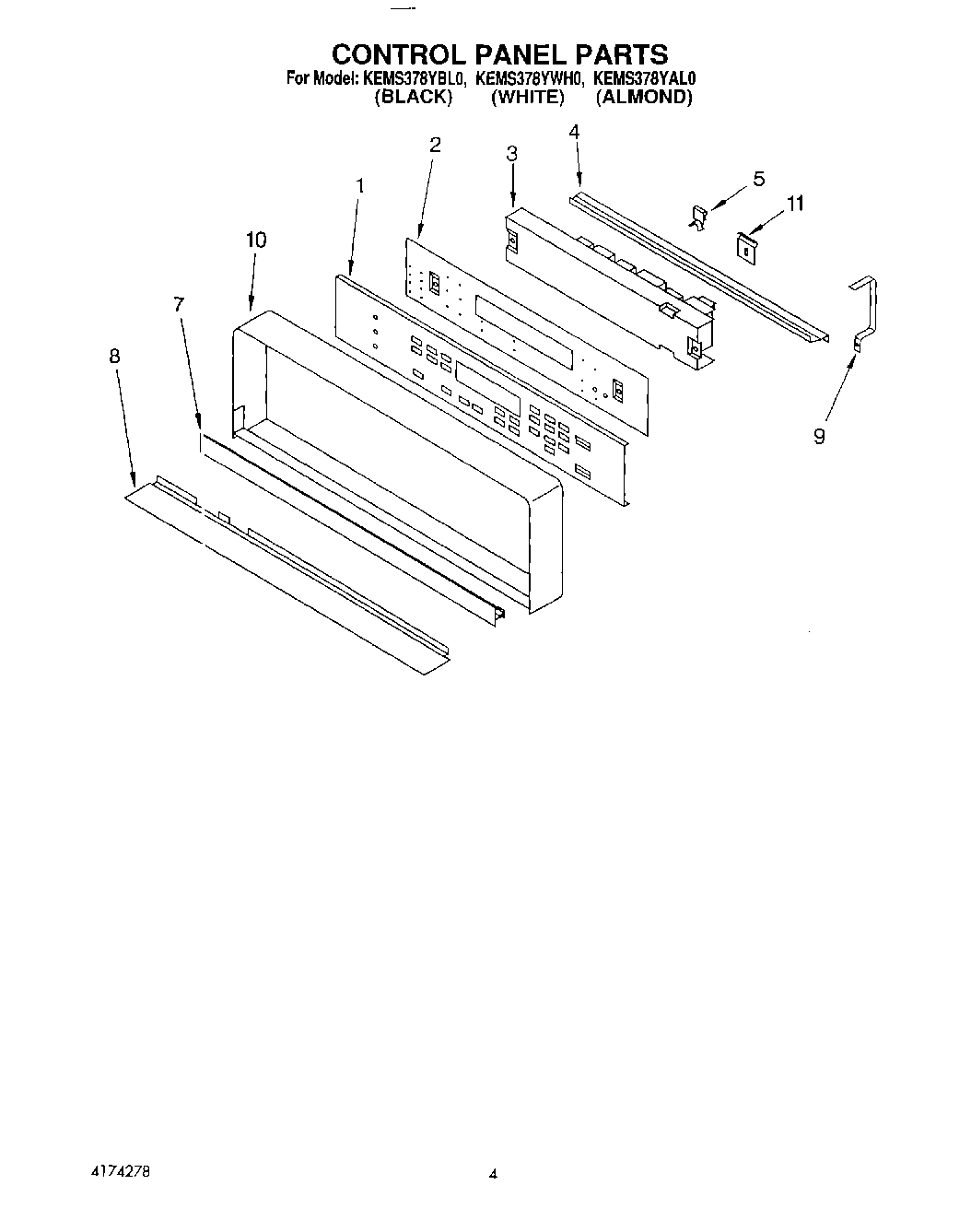

| 1 | Membrane, Switch (Black Model) |
| 1 | Membrane, Switch (White, Model) |
| 1 | Membrane, Switch (Almond, Model) |
| 2 | Bracket, Mounting Switch Membrane |
| 3 | Microcomputer |
| 4 | Screw (2) |
| 4 | Retainer, Bracket |
| 5 | Clip, Retainer (3) |
| 7 | Door, Latch Handle (Almond Model) |
| 7 | Door, Latch Handle (White Model) |
| 7 | Door, Latch Handle (Black Model) |
| 8 | Trim, Panel (Black) |
| 8 | Trim, Panel (White) |
| 8 | Trim, Panel (Almond) |
| 9 | Bracket (2) |
| 10 | Frame, Control Panel |
| 11 | Clip, Control Frame |
| 11 | Screw (3) |
