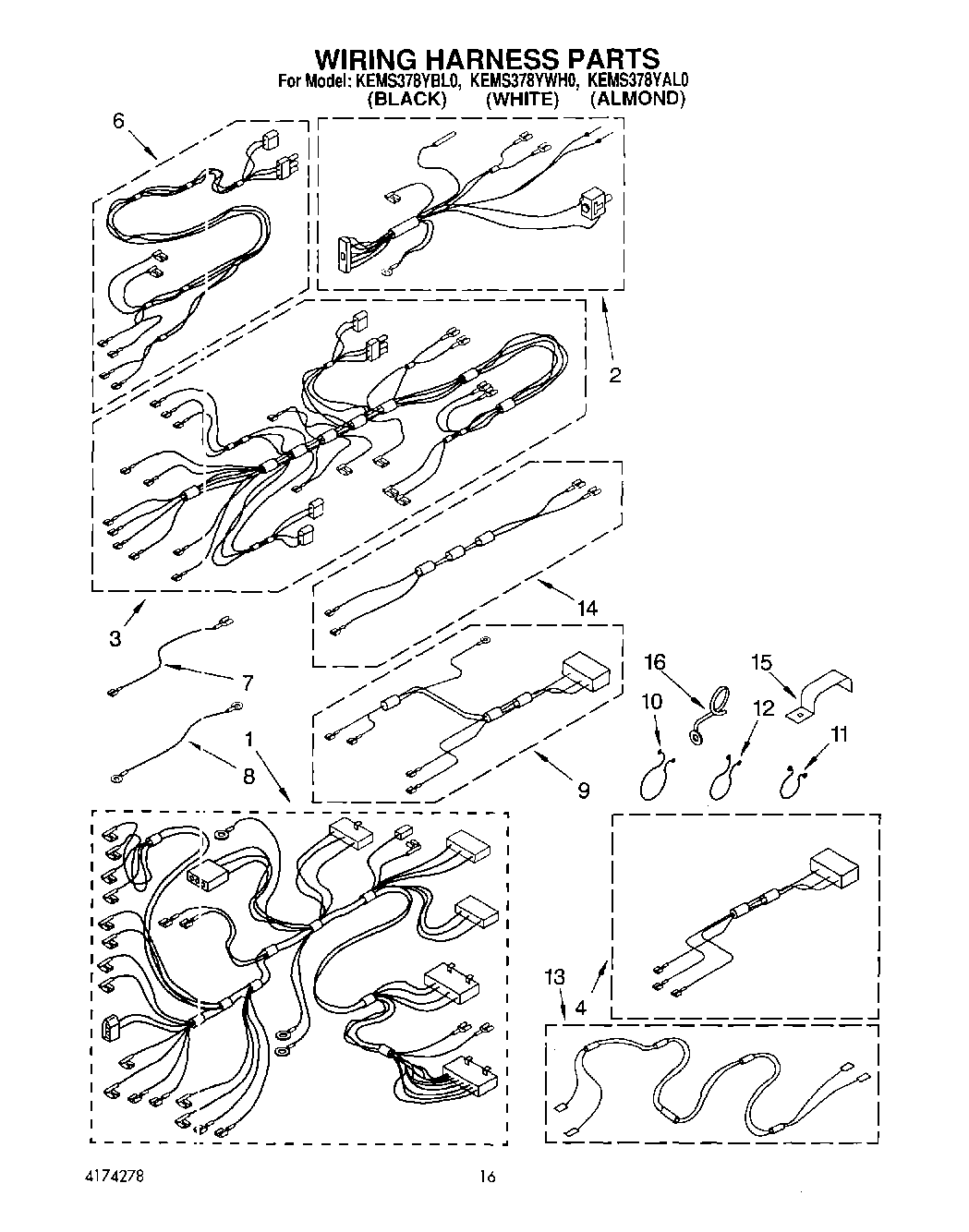

KEMS378YAL0 13 – WIRING HARNESSadmin2025-04-26T09:55:25+00:00KEMS378YAL0 13 – WIRING HARNESS
Products
| Position | Product |
|---|
| 1 | Harness, Wiring (Main Oven) |
| 2 | Jack Assy. |
| 3 | Harness, Wiring (Main Microwave) |
| 4 | Harness, Wiring (Latch, Combo) (Base Plate) |
| 7 | Wire, Jumper |
| 8 | Wire, Ground |
| 9 | Harness, Wire (Microwave Power) |
| 10 | Clip, Harness |
| 11 | Clip, Harness |
| 12 | Clip, harness |
| 13 | Wiring Harness (Door Switch) Lower) |
| 14 | Harness, Wiring (Combo-Probe) |
| 15 | 7111P002-60 Whirlpool Clamp |
| 15 | WP112432 Whirlpool Nut Assembly |
| 16 | Standoff, Wire |
