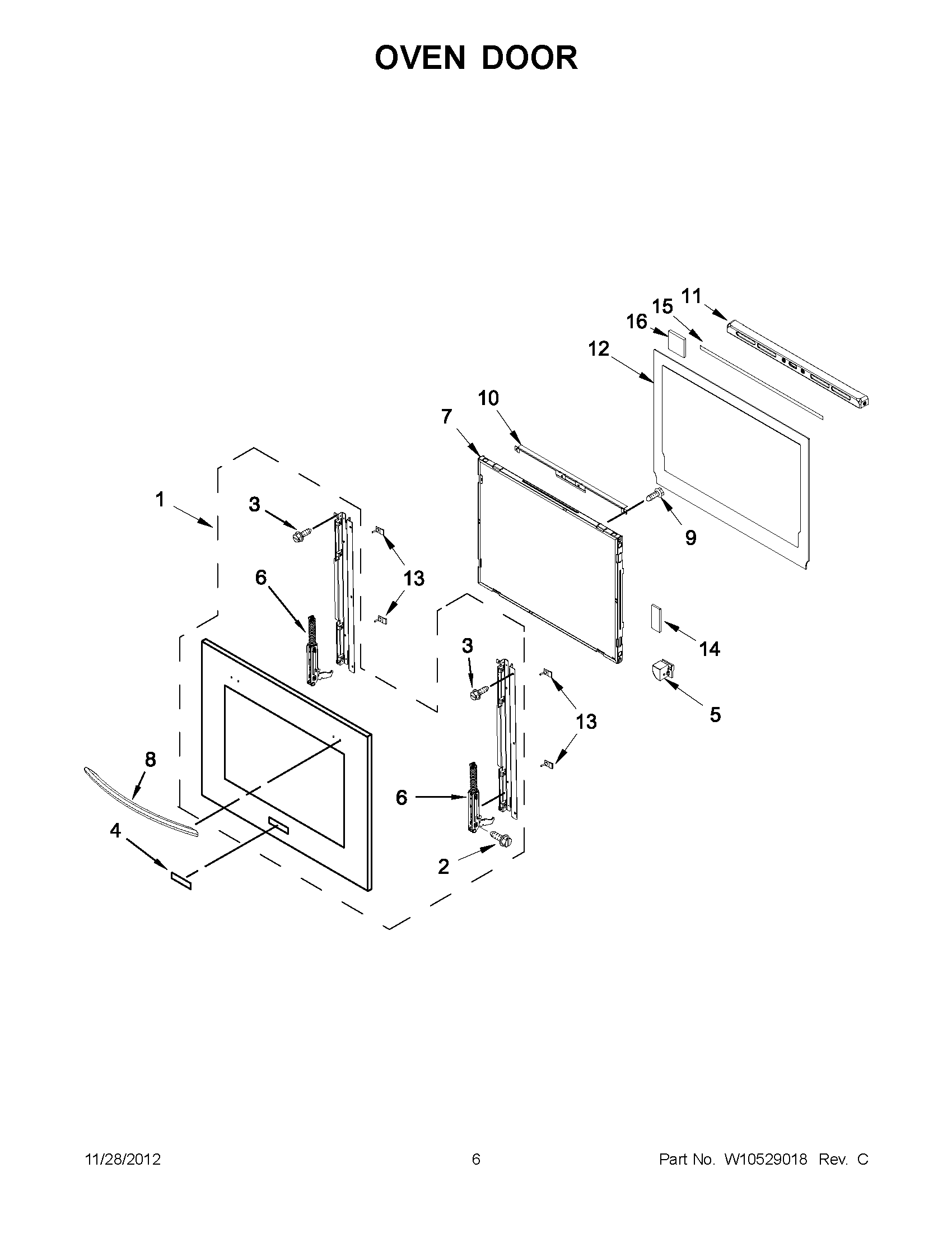

KEMS379BBL00 03 – OVEN DOOR

Products

PositionProduct
1ASSEMBLY, WINDOW PACK (WHITE)
1ASSEMBLY, WINDOW PACK (STAINLESS)
1ASSEMBLY, WINDOW PACK (BLACK)
2WP3196183 Whirlpool Screw
3SCREW
4WPW10243392 Whirlpool Dishwasher Nameplate
4WPW10243393 Whirlpool Dishwasher Nameplate
4WPW10243391 Whirlpool Refrigerator Nameplate
5WPW10581826 Whirlpool Support Bracket
5BRACKET, DOOR SIDE LEFT
6W11642291 Whirlpool Door Hinge
7ASSEMBLY, WINDOW PACK
8WPW10437675 Whirlpool Door Handle
8W10284919 Whirlpool Handle Door
8W10284920 Whirlpool Door Handle
9WP8533988 Whirlpool Screw Fastener
10W10459352 Whirlpool Glass Bracket
11VENT, DOOR TOP
12WPW10335921 Whirlpool Glass Frame
13WPW10323551 Whirlpool Bumper
14W10840861 Whirlpool Spacer
15PAD, VENT
16WPW10517428 Whirlpool Spacer
