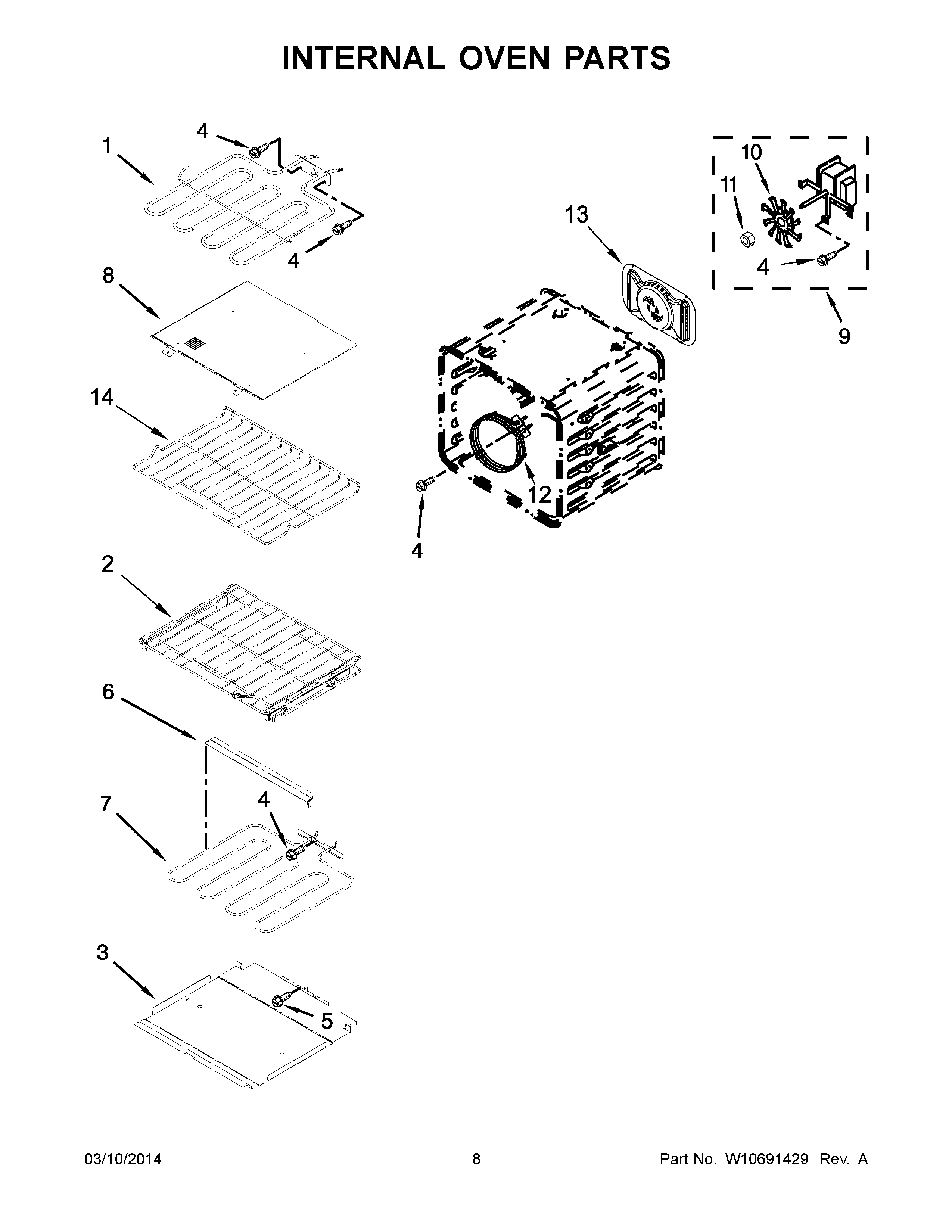

KEMS379BBL01 05 – INTERNAL OVEN PARTS

KEMS379BBL01 05 – INTERNAL OVEN PARTS

Written by

in

KEMS379BBL01 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1W10804429 Whirlpool Broil Element
3W10318198 Whirlpool Bake Tray
4Screw
5SCREW
6W10282957 Whirlpool Bracket Support
7BAKE ELEMENT
8W11290999 Whirlpool Shield Heat
9W10794022 Whirlpool Oven Cooktop Fan Motor
10W10758272 Whirlpool Convection Fan
11WPW10116349 Whirlpool Nut
12W11678579 Whirlpool Element
13W11234761 Whirlpool Baffle Convector
14WPW10554529 Whirlpool Oven Rack
