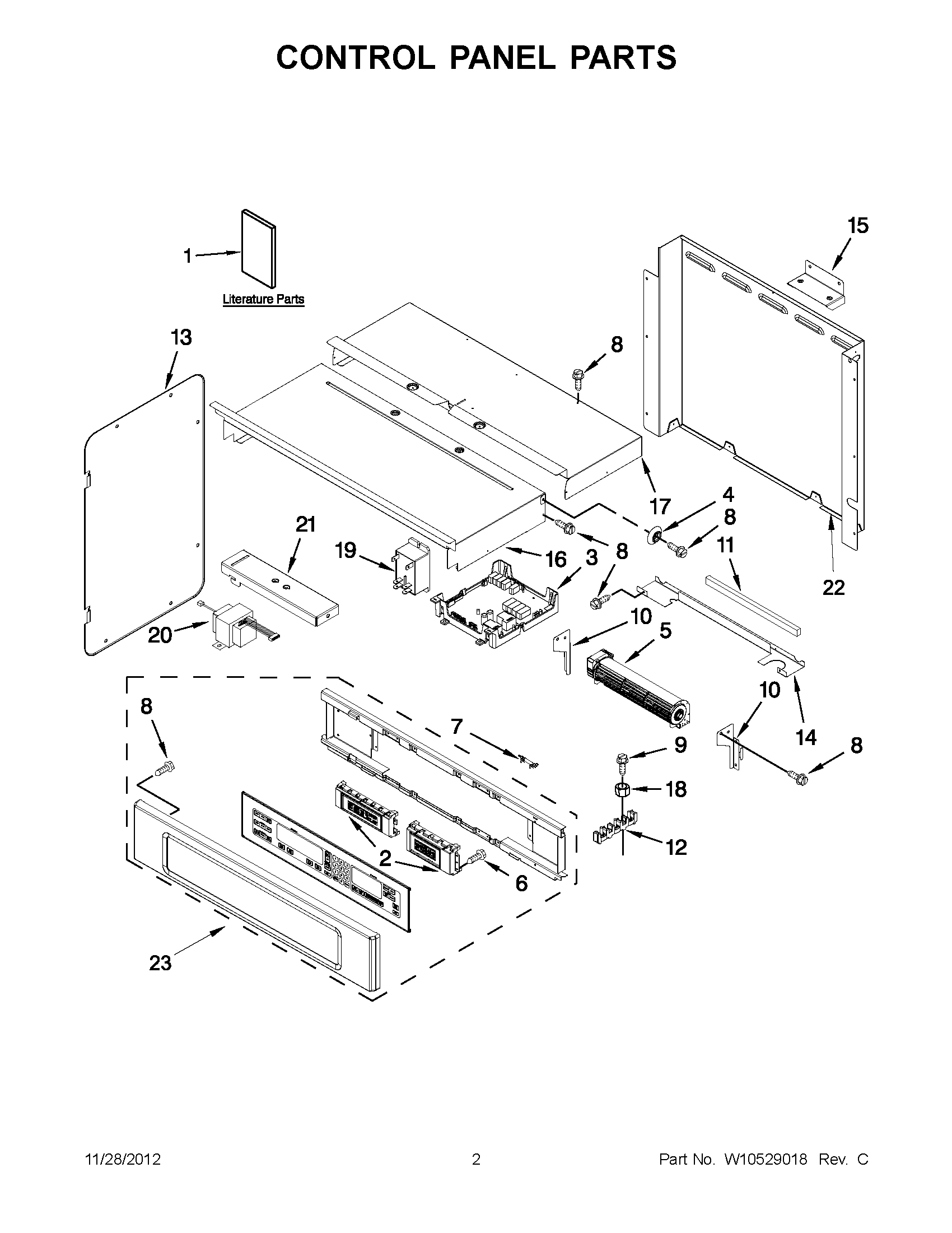

KEMS379BSS00 01 – CONTROL PANEL PARTS

KEMS379BSS00 01 – CONTROL PANEL PARTS

Products

PositionProduct
1USE AND CARE GUIDE (LOWER OVEN)
1TECH SHEET
1USE AND CARE GUIDE (MICROWAVE OVEN)
1INSTALLATION INSTRUCTIONS
2WPW10708464-includeCORE Whirlpool WPW10708464 Refrigerator Electronic Control Board + Core
2WPW10317350-includeCORE Whirlpool WPW10317350 Refrigerator Electronic Control Board + Core
3BOARD, GOC
4W10363824 Whirlpool Spacer
5WPW10260254 Whirlpool Blower
6SCREW
7WPW10545255 Whirlpool Thermal Fuse
8SCREW
9SCREW
10W10283078 Whirlpool Mounting Bracket
10BRACKET, BLOWER LEFT
11W10491987 Whirlpool Foam Seal
12BLOCK, TERMINAL
13CHASSIS, SIDE
14W10509164 Whirlpool Mounting Bracket
15SUPPORT, MODULE
16W10318159 Whirlpool Access Cover
17CHASSIS, COVER TOP BACK 27``
18Nut
19WP9752759 Whirlpool Relay
20TRANSFORMER, CONTROL
21W10323725 Whirlpool Mounting Plate
22W10519703 Whirlpool Rear Cover
23ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
23ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK)
23ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (WHITE)
