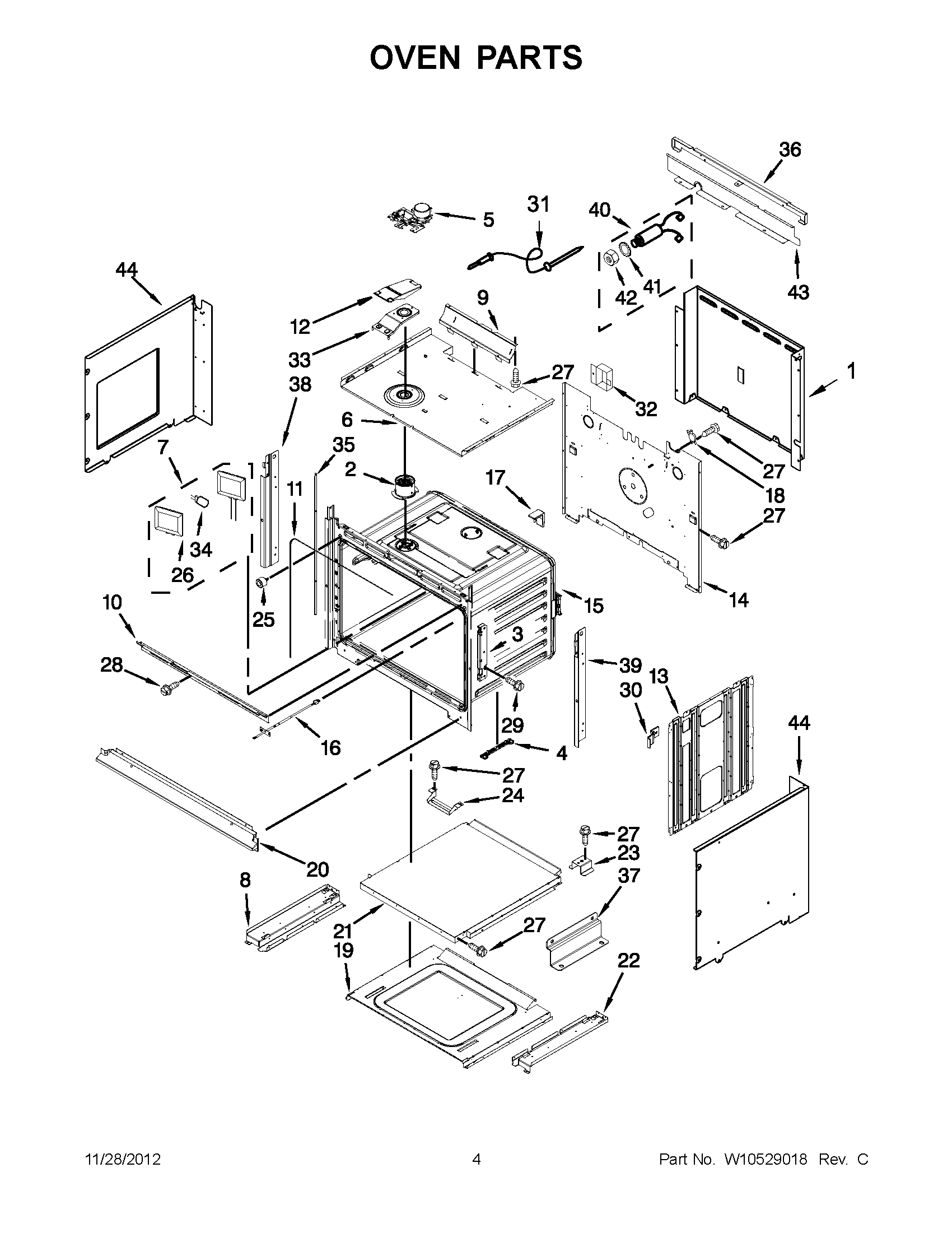

KEMS379BSS00 02 – OVEN PARTS

Products

Position	Product
1	COVER, BACK DUCT
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	WPW10318220 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	CHASSIS, TOP
8	W10283020 Whirlpool Support
9	W10351258 Whirlpool Bracket
11	W10856596 Whirlpool Oven Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	W10282991 Whirlpool Rear Cover
15	CABINET (NOT A SERVICEABLE PART)
16	PROBE, SENSOR
17	WPW10323551 Whirlpool Bumper
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20	W10506349 Whirlpool Oven Vent
20	WPW10327376 Whirlpool Oven Vent
20	W10351276 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22	W10283021 Whirlpool Support
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	WPW10519866 Whirlpool Light
27	SCREW
28	WP4450038 Whirlpool Screw
29	WPW10254050 Whirlpool Screw
30	W10347649 Whirlpool Spacer
31	WP9755542 Whirlpool Oven Meat Probe
32	8285593 Whirlpool Oven Wire Cover
33	W10616809 Whirlpool Vent Tube
34	WPW10472384 Whirlpool Light Bulb
35	W10536162 Whirlpool Microwave Trim Cover Kit
36	W10283023 Whirlpool Support
37	SIDE, BRACKET
38	W10360517 Whirlpool Dishwasher Mounting Bracket
39	BRKT-MNTG
40	8186589 Whirlpool Jack Probe
41	WP9755547 Whirlpool Lockwasher
42	WP9755546 Whirlpool Locknut
43	DEFLECTOR
44	SIDE, COMBO (RIGHT HAND)
44	SIDE, COMBO (LEFT HAND)
44	W10282943 Whirlpool Insulation
44	W11688333 Whirlpool Insulation
