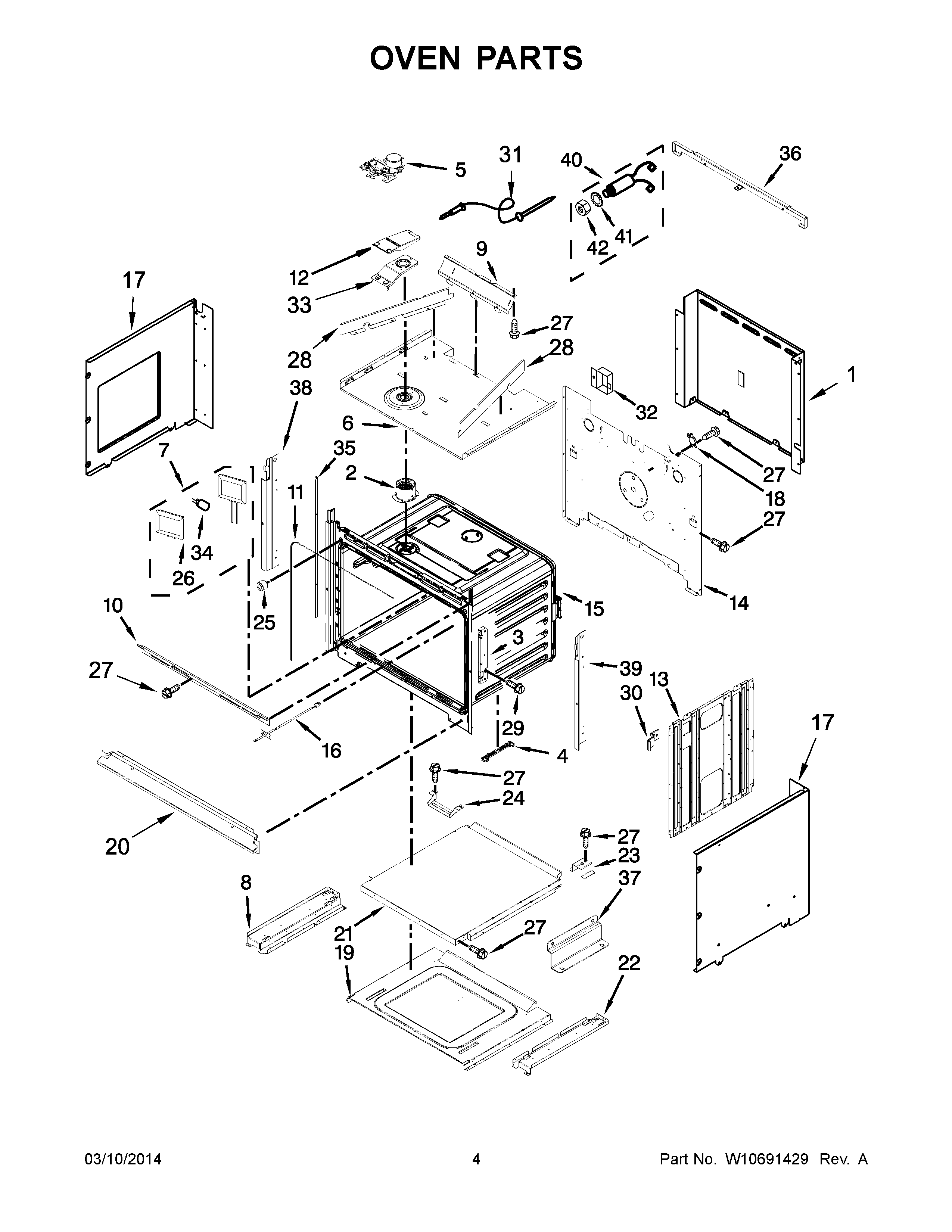

KEMS379BSS01 03 – OVEN PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10520716 Whirlpool Insulation
NIW11688333 Whirlpool Insulation
1COVER, BACK DUCT
2W11240525 Whirlpool Vent Tube
3W11613828 Whirlpool Hinge Receptacle
4WPW10318220 Whirlpool Spacer
5W10883049 Whirlpool Door Latch
6CHASSIS, TOP
8W10283020 Whirlpool Support
9W10904163 Whirlpool Vent Deflector
10VENT, CENTER 27“
11W10856596 Whirlpool Oven Gasket
12W10616810 Whirlpool Exhaust Cover
13SIDE, CHASSIS
14W10282991 Whirlpool Rear Cover
16PROBE, SENSOR
17SIDE, COMBO (LEFT HAND)
17SIDE, COMBO (RIGHT HAND)
18WP4449751 Whirlpool Range Oven Thermostat Fix
19BASE, CHASSIS
20WPW10327376 Whirlpool Oven Vent
20W10506349 Whirlpool Oven Vent
20W10351276 Whirlpool Oven Vent
21WPW10283008 Whirlpool Access Cover
22W10283021 Whirlpool Support
23W10213759 Whirlpool Support
24W10351308 Whirlpool Support Bracket
25WPW10351278 Whirlpool Bumper
26WPW10519866 Whirlpool Light
27SCREW
28CHASSIS, DEFLECTOR
29WPW10254050 Whirlpool Screw
30W10347649 Whirlpool Spacer
31WP9755542 Whirlpool Oven Meat Probe
328285593 Whirlpool Oven Wire Cover
33W10616809 Whirlpool Vent Tube
34WPW10472384 Whirlpool Light Bulb
35W10536162 Whirlpool Microwave Trim Cover Kit
36W10283023 Whirlpool Support
37SIDE, BRACKET
38W10360517 Whirlpool Dishwasher Mounting Bracket
39BRKT-MNTG
40WPW10524044 Whirlpool Jack Probe
41WP9755547 Whirlpool Lockwasher
42WP9755546 Whirlpool Locknut
