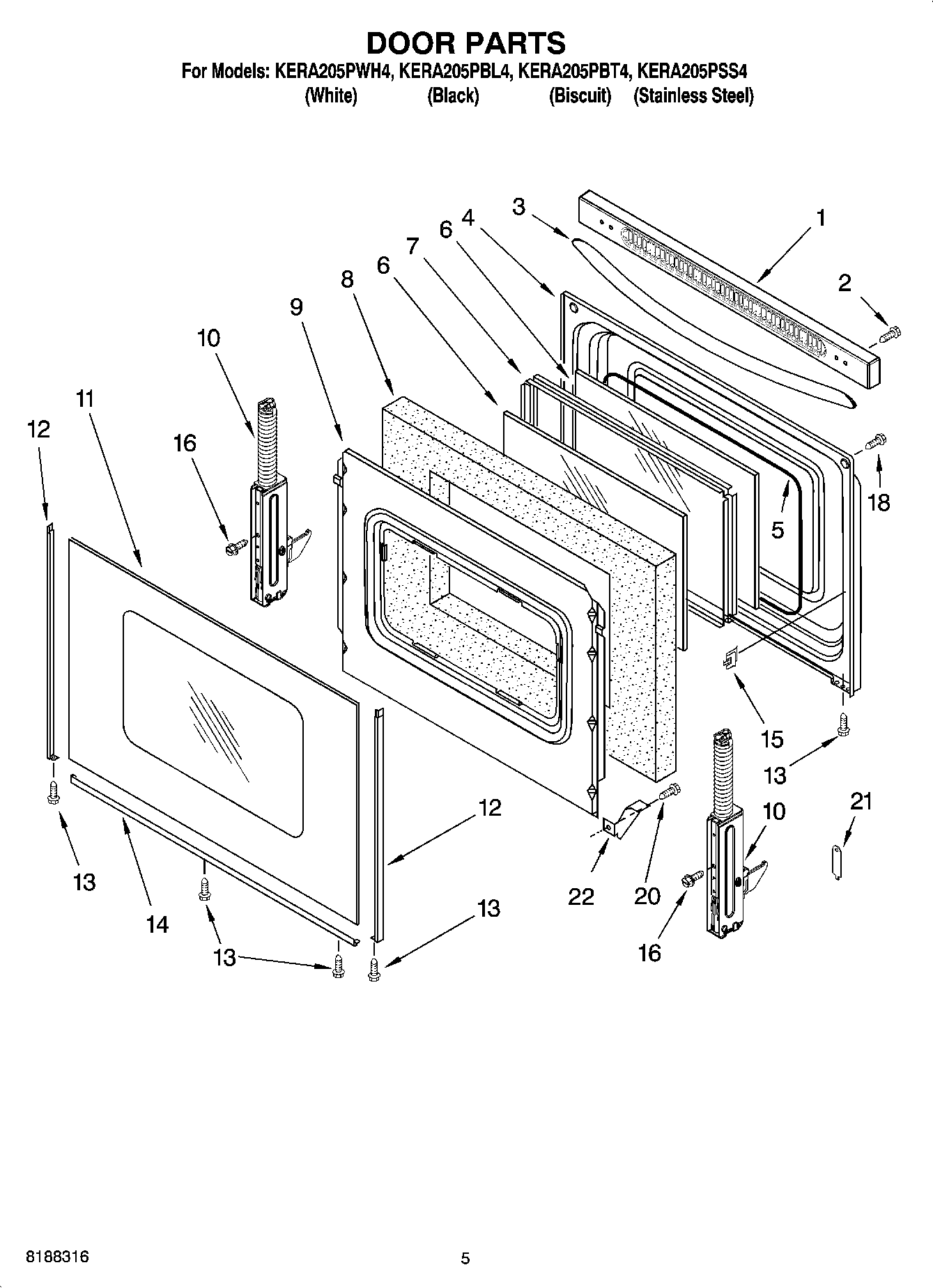

KERA205PBT4 04 – DOOR PARTSadmin2025-04-26T09:51:31+00:00KERA205PBT4 04 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Trim, Door Top (White) |
| 1 | Trim, Door Top (Biscuit) |
| 1 | Trim, Door Top (Black) |
| 1 | Trim, Door Top (Cashmere Metalic) |
| 2 | Screw |
| 3 | Handle, Door (Stainless Steel) |
| 3 | Handle Door (Biscuit) |
| 3 | Handle Door, (Black) |
| 3 | Handle, Door (White) |
| 4 | WP9761344 Whirlpool Door Liner |
| 5 | Seal, Window |
| 6 | WP8053948 Whirlpool Door Glass |
| 7 | WPW10316950 Whirlpool Window Frame |
| 8 | WPW10278991 Whirlpool Insulation |
| 9 | W11539580 Whirlpool Retainer |
| 10 | W10347464 Whirlpool Door Hinge |
| 10 | W10347466 Whirlpool Door Hinge |
| 11 | Glass, Outer Door (Biscuit) |
| 11 | WPW10118454 Whirlpool Door Outer Glass White |
| 11 | Glass, Outer (Stainless Steel) |
| 11 | Glass, Outer Door (Black) |
| 12 | W10761014 Whirlpool Right Door Trim |
| 12 | WP8523166 Whirlpool Door Trim |
| 12 | WP8523167 Whirlpool Door Trim Assembly |
| 12 | W10761018 Whirlpool Dishwasher Left Door Trim |
| 12 | WP8523172 Whirlpool Left Door Trim |
| 12 | WP8523173 Whirlpool Door Trim |
| 12 | Trim, Side (Cashmere Metalic, Right Hand) |
| 12 | Trim, Side (Cashmere Metalic, Left Hand) |
| 13 | W10491985 Whirlpool Screw |
| 14 | WP8523175 Whirlpool Door Trim Assembly |
| 14 | WP8523177 Whirlpool Door Trim Assembly |
| 14 | WP8523178 Whirlpool Door Trim |
| 14 | WP8523180 Whirlpool Door Trim Assembly |
| 15 | Clip, Glass (4) |
| 16 | WPW10031790 Whirlpool Screw |
| 18 | W10777162 Whirlpool Screw |
| 20 | WP3196175 Whirlpool Screw |
| 21 | 9761517 Whirlpool Oven Clip Assembly |
| 22 | WP3196794 Whirlpool Glass Bracket |
