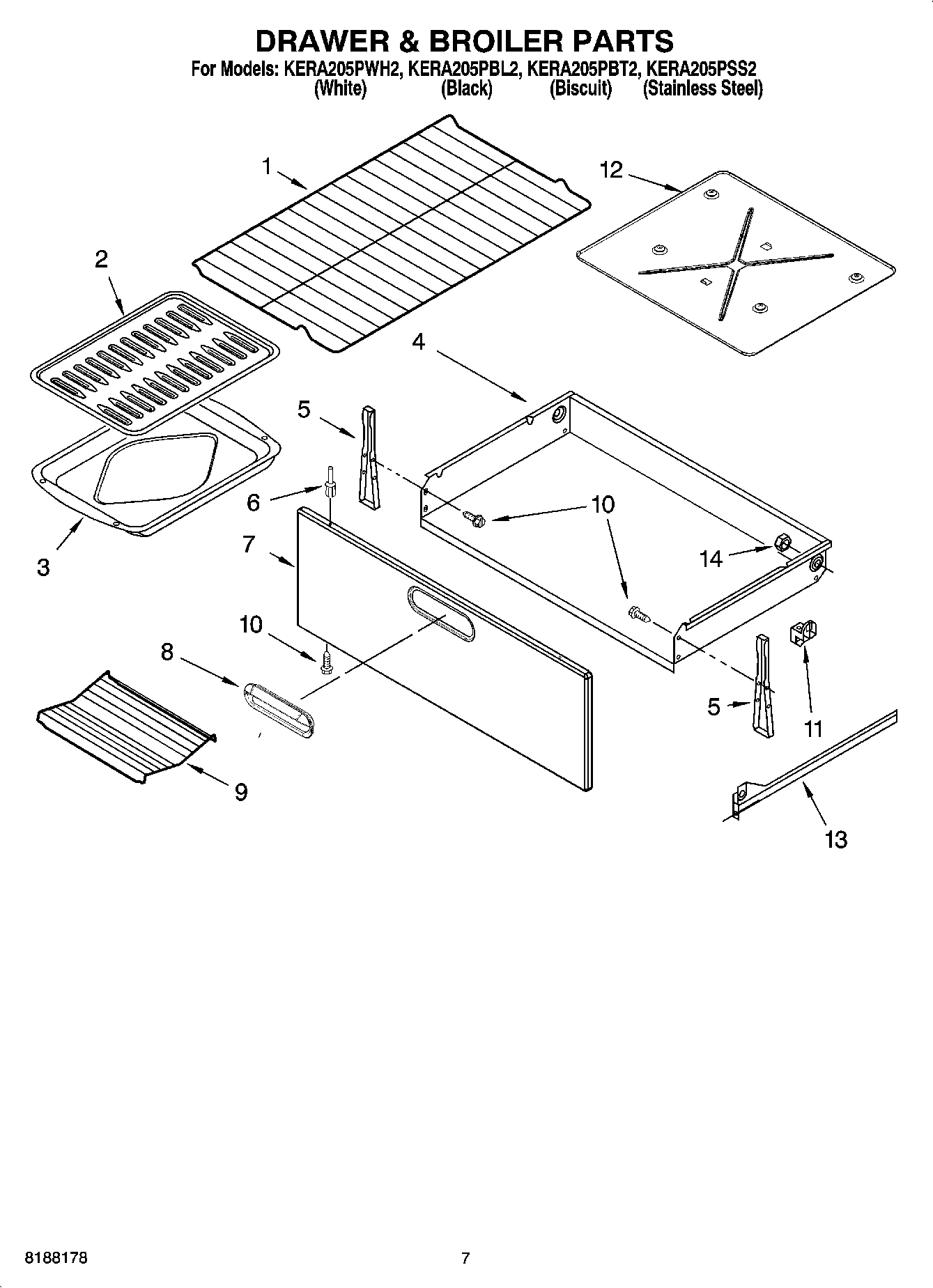

KERA205PSS2 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

KERA205PSS2 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Written by

in

KERA205PSS2 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI154178A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Blue)
WPL 9761466
WPL 9761465
242831 Whirlpool Oven Wire
WPL ARI154172A
3184020 Whirlpool Oven Wire
WPL ARI154179A
Grease
WPL ARI154177A
WPL ARI154176A
WPL ARI154175A
WPL ARI154174A
WPL ARI154173A
WPL ARI154170A
WPL ARI154171A
WPL 9757315
WPL 9756707
WPL 9756550
WPL 8524132
WP3196154 Whirlpool Screw Assembly
Clip, Ground Wire
350930 Whirlpool White Spray Paint
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
Wire, 25` Roll (Red 14 Ga.)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL 9758191
285006 Whirlpool Spray
814381 Whirlpool Pin
W11447673 Whirlpool Range Tip Anchor
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Cleaner (Stainless Steel)
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
Wire (14 Ga. 150 c Brown)
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196813 Whirlpool Rivet
63196815 Whirlpool Oven Rivet
6WP3196814 Whirlpool Rivet
7Panel, Drawer Front (White)
7Panel, Drawer Front (Black)
7Panel, Drawer Front (Stainless Steel)
7Panel, Drawer Front (Biscuit)
8Handle, Drawer (Biscuit)
8Handle, Drawer (Black)
8Handle, Drawer (White)
8Handle, Drawer (S.Steel)
9Rack, Roasting
10WP3400832 Whirlpool Screw
11Spacer, Glide
12Heat Shield, Drawer
13Rail, Drawer (Left Hand)
13Rail, Drawer (Right Hand)
14WP487939 Whirlpool Refrigerator Nut
