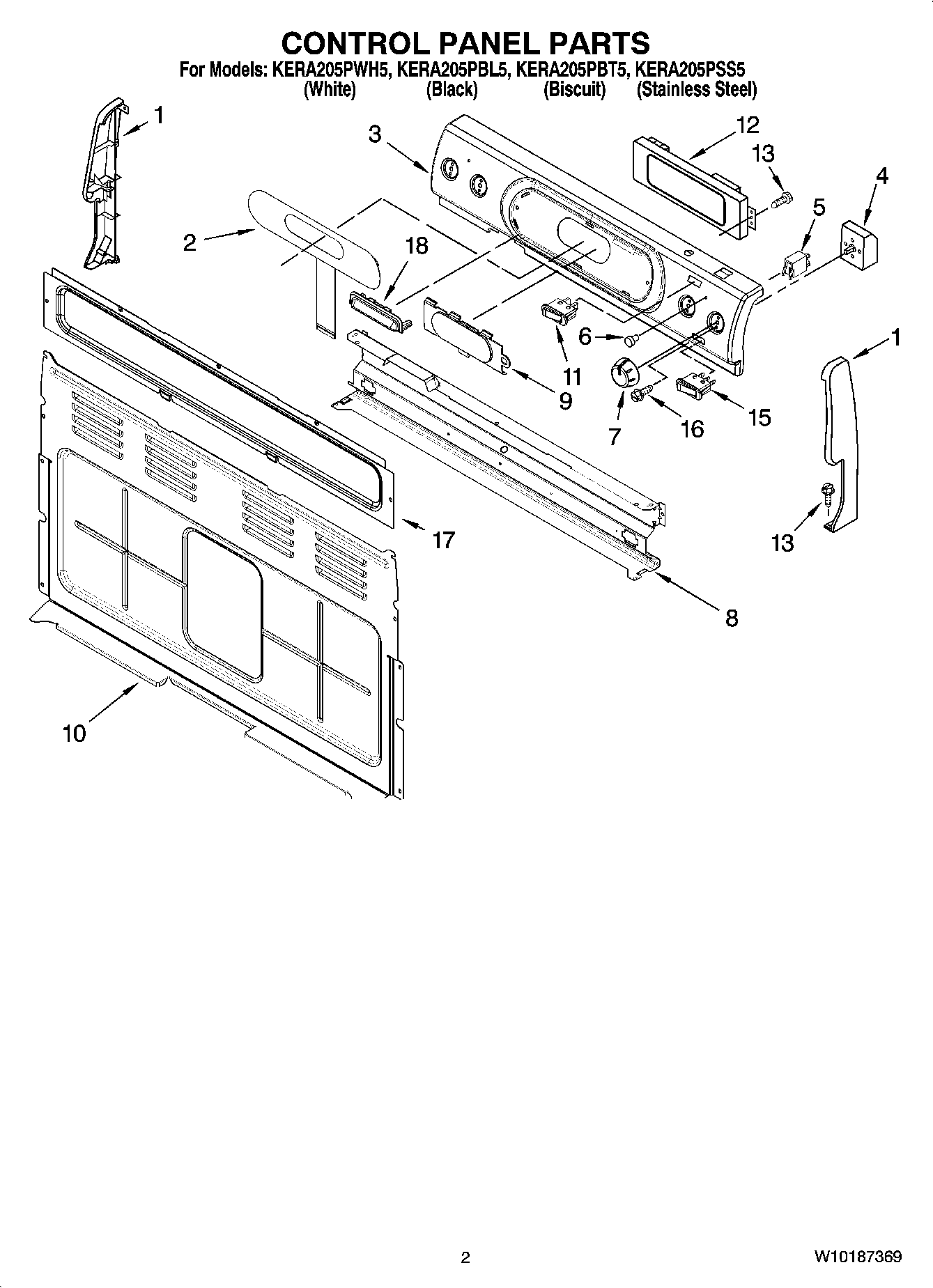

KERA205PSS5 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap (Black Right Hand)
2Membrane Switch (White)
2Membrane Switch (Stainless Steel)
2Membrane Switch (Biscuit)
2Membrane Switch (Black)
3Panel, Backguard (Biscuit)
3Panel, Backguard (Stainless Steel)
3Panel, Backguard (White)
3Panel, Backguard (Black)
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
4WP9757030 Whirlpool Infinite Switch
5WP8523266 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob (White)
7Knob (BIscuit)
7Knob (Black)
7Knob (Cashmere Metal)
8Shield, Heat
9Membrane, Insert
10Cover, Rear
11WPW10163899 Whirlpool Switch
11Switch, Simmer (White)
12Control, Range
13WP4449809 Whirlpool Screw
15Switch, Warming (White)
15WPW10163902 Whirlpool Switch
15Switch, Warming (Biscuit)
16WP3400882 Whirlpool Screw
17Cover, Rear (Console)
18Cover, Vent (Cashmere Metalic)
18Cover, Vent (Black)
18Cover, Vent (Biscuit)
18Cover, Vent (White)
