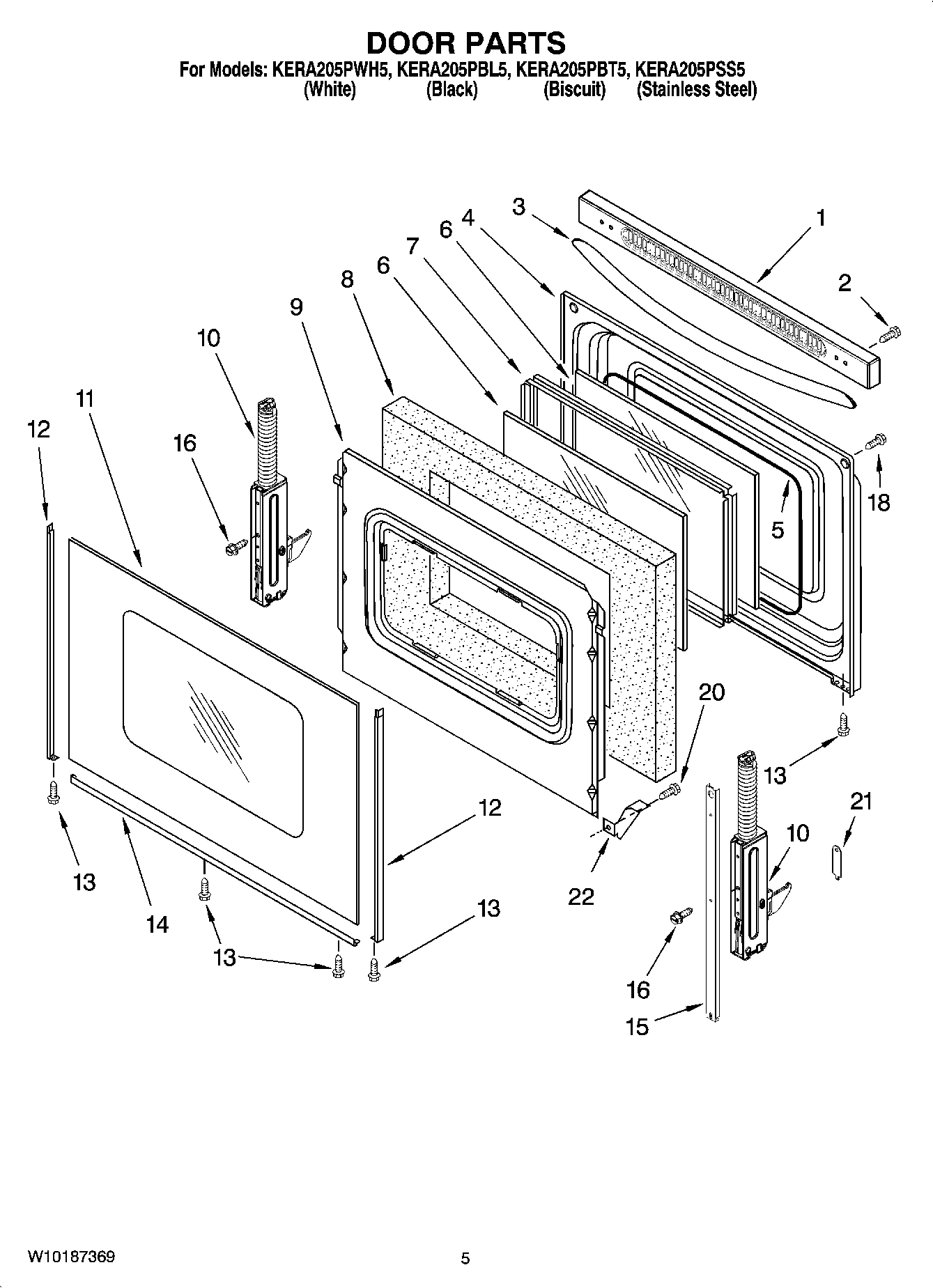

KERA205PSS5 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top (Black)
1	Trim, Door Top (Biscuit)
1	Trim, Door Top (White)
1	Trim, Door Top (Cashmere Metalic)
2	Screw
3	Handle Door, (Black)
3	Handle Door (Biscuit)
3	Handle, Door (Stainless Steel)
3	Handle, Door (White)
4	WP9761344 Whirlpool Door Liner
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	W10347464 Whirlpool Door Hinge
10	W10347466 Whirlpool Door Hinge
11	Glass, Outer Door (Black)
11	WPW10330077 Whirlpool Door Glass
11	Glass, Outer Door (Biscuit)
11	WPW10118454 Whirlpool Door Outer Glass White
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	WP8523166 Whirlpool Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523172 Whirlpool Left Door Trim
12	WP8523173 Whirlpool Door Trim
12	Trim, Side (Cashmere Metalic, Right Hand)
12	Trim, Side (Cashmere Metalic, Left Hand)
13	W10491985 Whirlpool Screw
14	WP8523177 Whirlpool Door Trim Assembly
14	WP8523175 Whirlpool Door Trim Assembly
14	WP8523180 Whirlpool Door Trim Assembly
14	WP8523178 Whirlpool Door Trim
15	W11502236 Whirlpool Door Trim
16	WPW10031790 Whirlpool Screw
18	W10777162 Whirlpool Screw
20	WP3196175 Whirlpool Screw
21	9761517 Whirlpool Oven Clip Assembly
22	WP3196794 Whirlpool Glass Bracket
