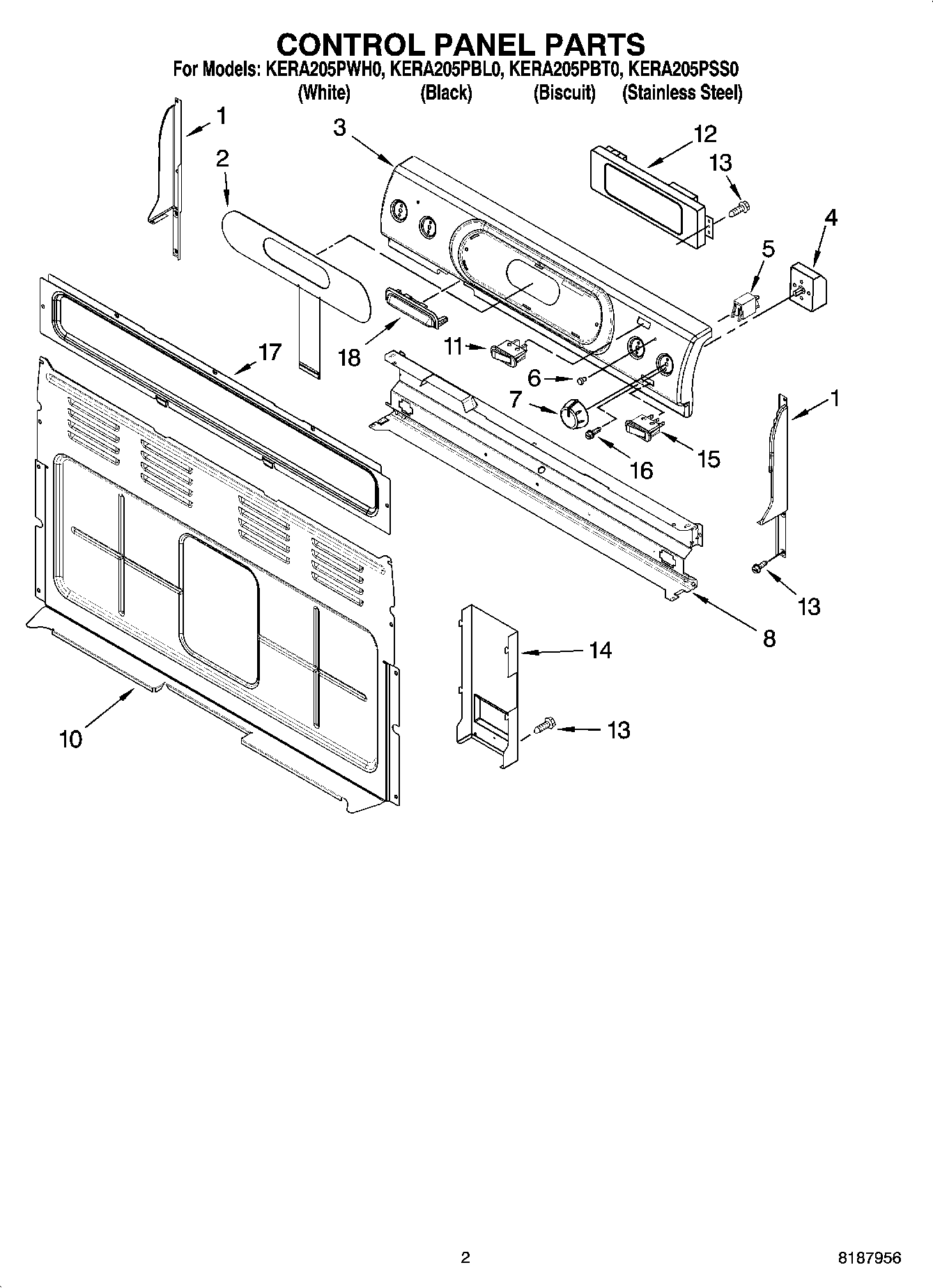

KERA205PWH0 02 – CONTROL PANEL PARTS

KERA205PWH0 02 – CONTROL PANEL PARTS

Written by

in

KERA205PWH0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Left Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
1Endcap (Black Right Hand)
1Endcap (Black Left Hand)
1Endcap (Biscuit Right Hand)
2Membrane Switch (White)
2Membrane Switch (Biscuit)
2Membrane Switch (Black)
2Membrane Switch (Stainless Steel)
3Panel, Backguard (White)
3Panel, Backguard (Stainless Steel)
3Panel, Backguard (Biscuit)
3Panel, Backguard (Black)
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
4WP9757030 Whirlpool Infinite Switch
5WP8523266 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob (Black)
7Knob (BIscuit)
7Knob (White)
7Knob (Cashmere Metal)
8Shield, Heat
10Cover, Rear
11Switch, Simmer (White)
11WPW10163899 Whirlpool Switch
12Control, Range
13WP4449809 Whirlpool Screw
14Cover, Box
15Switch, Warming (White)
15Switch, Warming (Cashmere Metalic)
15WPW10163902 Whirlpool Switch
15Switch, Warming (Biscuit)
16WP3400882 Whirlpool Screw
17Cover, Rear (Console)
18Cover, Vent (Cashmere Metalic)
18Cover, Vent (Black)
18Cover, Vent (Biscuit)
18Cover, Vent (White)
