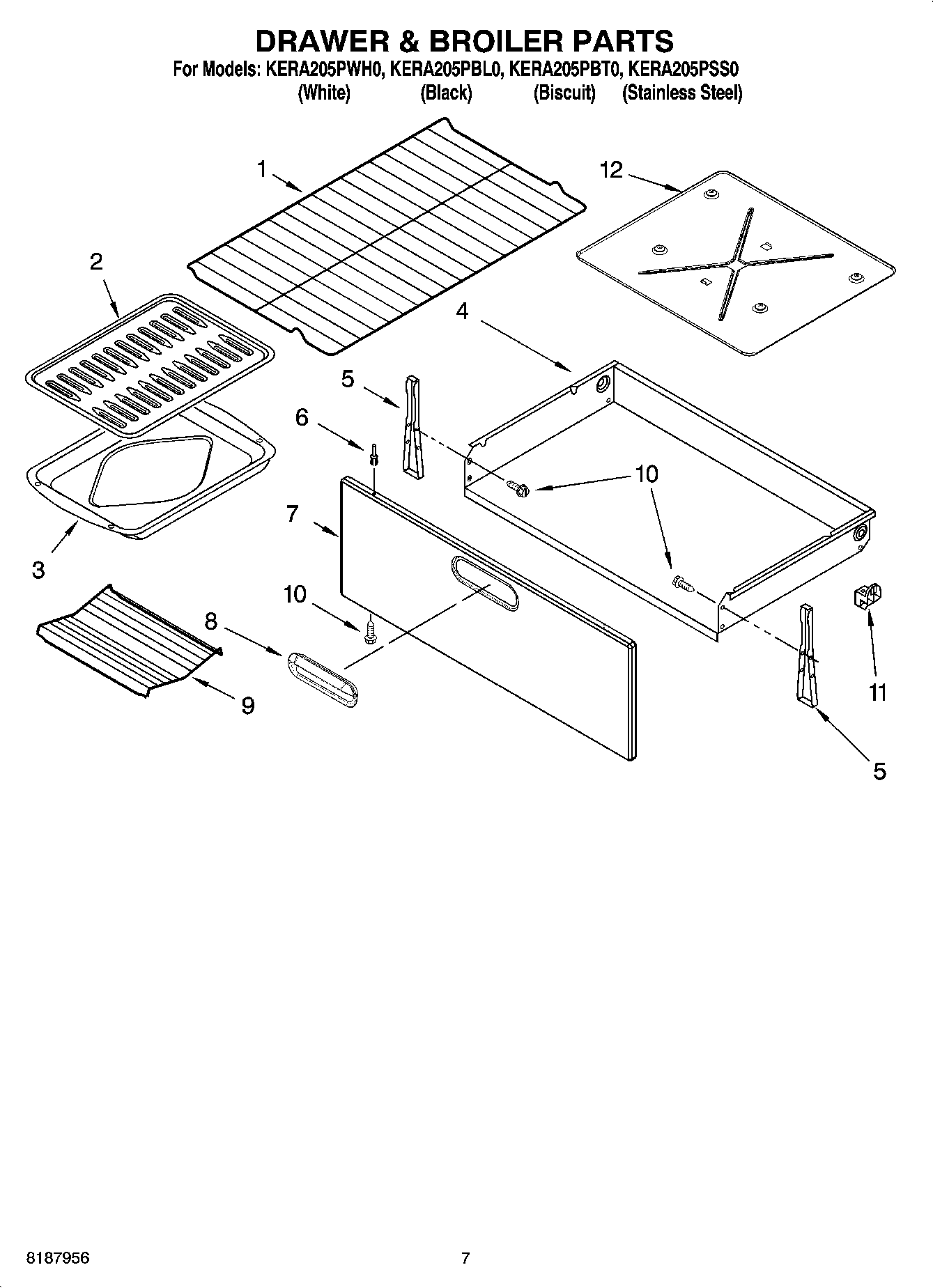

KERA205PWH0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

KERA205PWH0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Written by

in

KERA205PWH0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI154224A
WPL 8273266
WP3196154 Whirlpool Screw Assembly
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WPL 8316781
WPL 8524132
WPL ARI154223A
WPL ARI154222A
WPL ARI154221A
WPL ARI154220A
WPL ARI154219A
WPL ARI154218A
WPL ARI154217A
WPL ARI154216A
WPL ARI154215A
WPL 9757332
WPL 9757315
WPL 9756745
WPL 9756708
WPL 9756707
WPL 9756550
242831 Whirlpool Oven Wire
350930 Whirlpool White Spray Paint
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Cleaner (Stainless Steel)
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
Clip, Ground Wire
16515 Whirlpool Clip
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
63196815 Whirlpool Oven Rivet
6WP3196813 Whirlpool Rivet
6WP3196814 Whirlpool Rivet
7Panel, Drawer Front (Stainless Steel)
7Panel, Drawer Front (Black)
7Panel, Drawer Front (Biscuit)
7Panel, Drawer Front (White)
8Handle, Drawer (Black)
8Handle, Drawer (Biscuit)
8Handle, Drawer (S.Steel)
8Handle, Drawer (White)
9Rack, Roasting
10WP3400832 Whirlpool Screw
11WP8053334 Whirlpool Drawer Glide
12Heat Shield, Drawer
