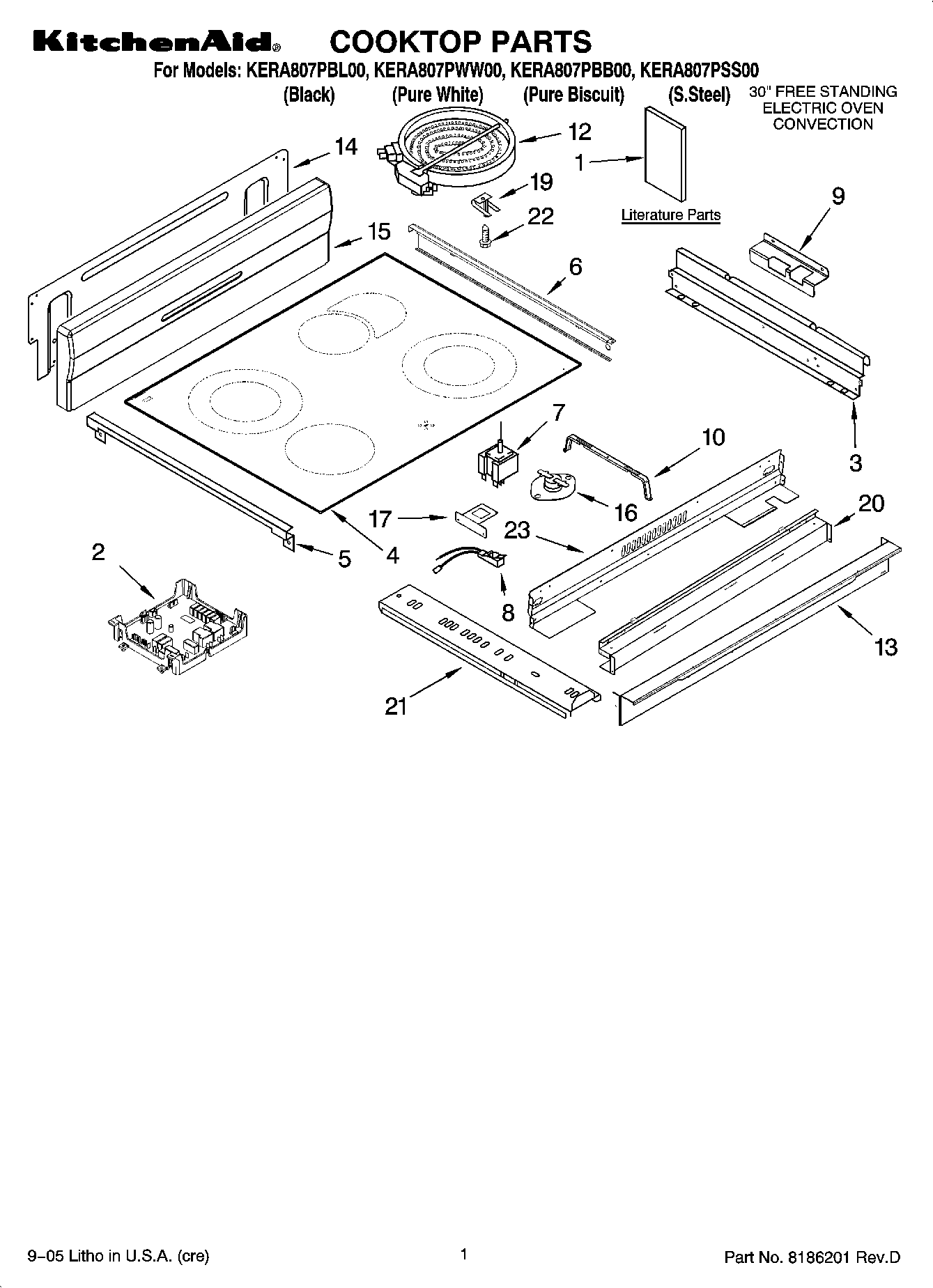

KERA807PBB00 01 – COOKTOP PARTS

Products

Position	Product
1	Safe Cooking Tips
1	Anti-Tip Instruct.
1	Tech Sheet
1	Use & Care Guide
1	Installation Instructions
2	Central, Appliance
3	Bracket, Mounting
4	Cooktop (White)
4	Gasket
4	Cooktop (S.Steel)
4	Cooktop (Black)
4	Cooktop (Biscuit)
5	Clip, Ceran (2)
6	Trim-CkTop, SI (Biscuit RH)
6	Trim-CkTop, SI (Black RH)
6	Trim-CkTop, SI (White RH)
6	Trim-CkTop, SI (S.Steel LH)
6	Trim-CkTop, SI (Biscuit LH)
6	Trim-CkTop, SI (Black LH)
6	Trim-CkTop, SI (S.Steel RH)
6	Trim-CkTop, SI (White LH)
7	Switch, Infinite (RF)
7	Switch, Infinite (LF, RR, LR)
8	Light, Indicator
9	Support (R.Hand)
9	Support (L.Hand)
10	WP9756821 Whirlpool Support
10	WP4449809 Whirlpool Screw
12	Element, Surface (1800/1000W)
12	W10823692 Whirlpool Dual Radiant Element
12	W10823698 Whirlpool Surface Element Right Rear
13	Bracket, Front Support
14	Cover, Backsplash Rear
15	Backsplash (S.Steel Gasket)
15	Backsplash (White)
15	Backsplash (Biscuit)
15	Backsplash (Black)
15	Backsplash (Gray)
15	Backsplash (Black)
16	WP9759944 Whirlpool Thermostat
17	Bracket, Ind. Lamp
17	W10491985 Whirlpool Screw
19	Spring, Locator
20	Bracket, Rear Sprt
21	Rail, Element (2)
23	Screw (4)
23	Cover
