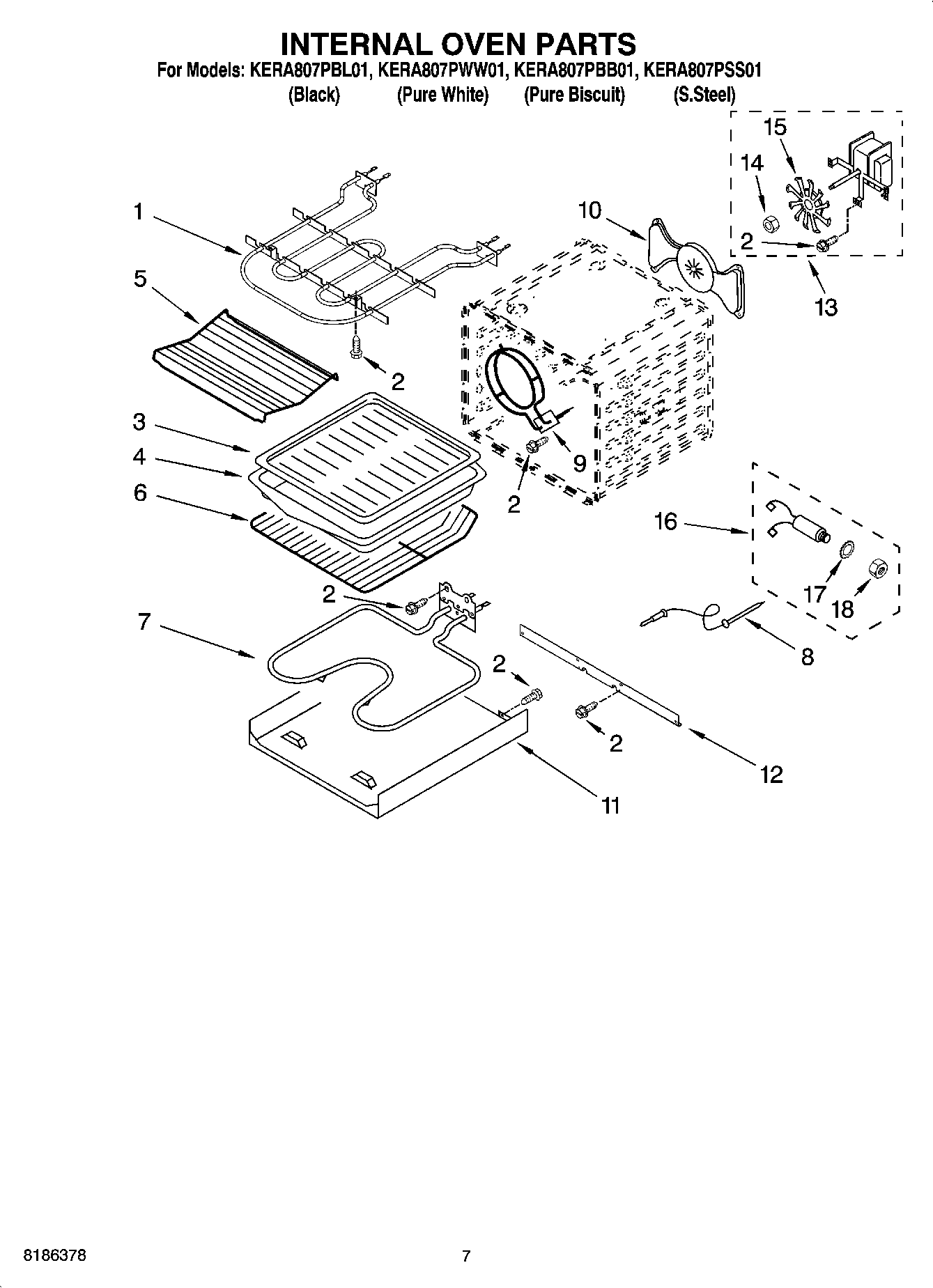

KERA807PBB01 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELMNT-BROL
2	WP4449154 Whirlpool Screw
3	WP3195996 Whirlpool Pan Grid
4	W10737569 Whirlpool Broil Pan
5	Rack, Roasting
6	WPW10179152 Whirlpool Rack Oven
7	4451175 Whirlpool Bake Element
8	WP9755542 Whirlpool Oven Meat Probe
9	WP9760769 Whirlpool Element Assembly
10	W10860133 Whirlpool Convection Baffle
11	Tray, Hidden Bake
12	4450039 Whirlpool Oven Access Cover
13	Motor Convection
14	Nut
15	WP4452226 Whirlpool Convection Fan
16	8186589 Whirlpool Jack Probe
17	WP9755547 Whirlpool Lockwasher
18	WP9755546 Whirlpool Locknut
