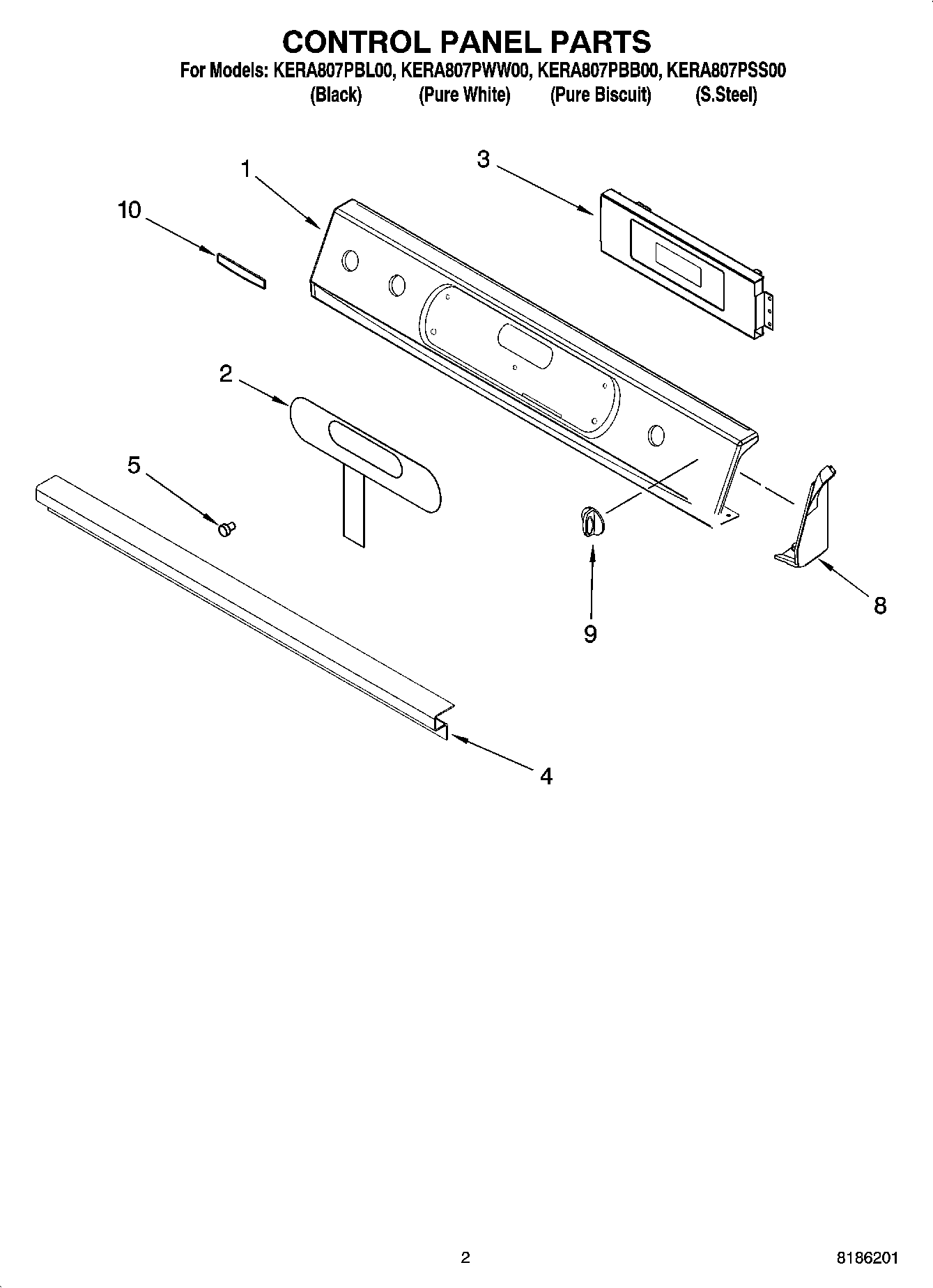

KERA807PBL00 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Control Panel (S.Steel)
1	Control Panel (White)
1	Control Panel (Black)
1	Control Panel (Biscuit)
2	Membrane Switch (Biscuit)
2	WP9756595ES Whirlpool Membrane Switch
2	Membrane Switch (Black)
2	WP3400832 Whirlpool Screw
2	Membrane Switch (White)
3	Screw
3	Control, Interface
4	Bracket, Console
4	Screw (4)
5	WP3196068 Whirlpool Light Lens
8	3196172 Whirlpool Oven Screw
8	Endcap (White RH)
8	Endcap (S.Steel RH)
8	Endcap (Biscuit RH)
8	Endcap (Black RH)
8	Endcap (White LH)
8	Endcap (S.Steel LH)
8	Endcap (Biscuit LH)
8	Endcap (Black LH)
9	Knob (Black)
10	Nameplate (Black)
10	Nameplate (Biscuit)
10	Nameplate (White)
10	Palnut
